PCS PulseWorx TEC Installation Manual And Owner's Manual

FUNCTION
The TEC Timed Event Controller is a high quality plug-in home
automation controller that is capable of transmitting UPB
(Universal Powerline Bus) digital commands over the existing
power wiring to remotely turn on and off other UPB devices at
preset times and days. The TEC can be freely located anywhere
a wall outlet exists throughout the home. No additional wiring
is required and no radio frequency signals are used for
communication.
FEATURES:
•
Stores 20 Individual Events
•
Astronomic Sunset/Sunrise Settings
•
Security Mode Randomly Varies the On/Off Time Each
Day.
• Time Event Suspend/Activate Feature
• Automatic Clock Adjustment for Daylight Saving Time
• Automatic Leap Year Adjustment.
•
10-year Battery Back-Up
•
Title 24 compliant
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions
should always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If the product comes in contact
with water or other liquid, turn off the circuit breaker and
unplug the product immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors.
Model: TEC
Timed Event Controller
The Inventors Of:
Installation Guide and
5. Do not use this product for other than its intended purpose.
6. Do not cover this product with any material when in use.
7. This product uses grounded plugs and sockets to reduce the
risk of electric shock. These plugs and sockets fit only one
way. If they do not fit, consult an electrician.
8. SAVE THESE INSTRUCTIONS.
INSTALLATION
The TEC is designed for indoor use with devices that plug into a
grounded power outlet. To install the TEC module:
1. Locate any free wall outlet throughout the home.

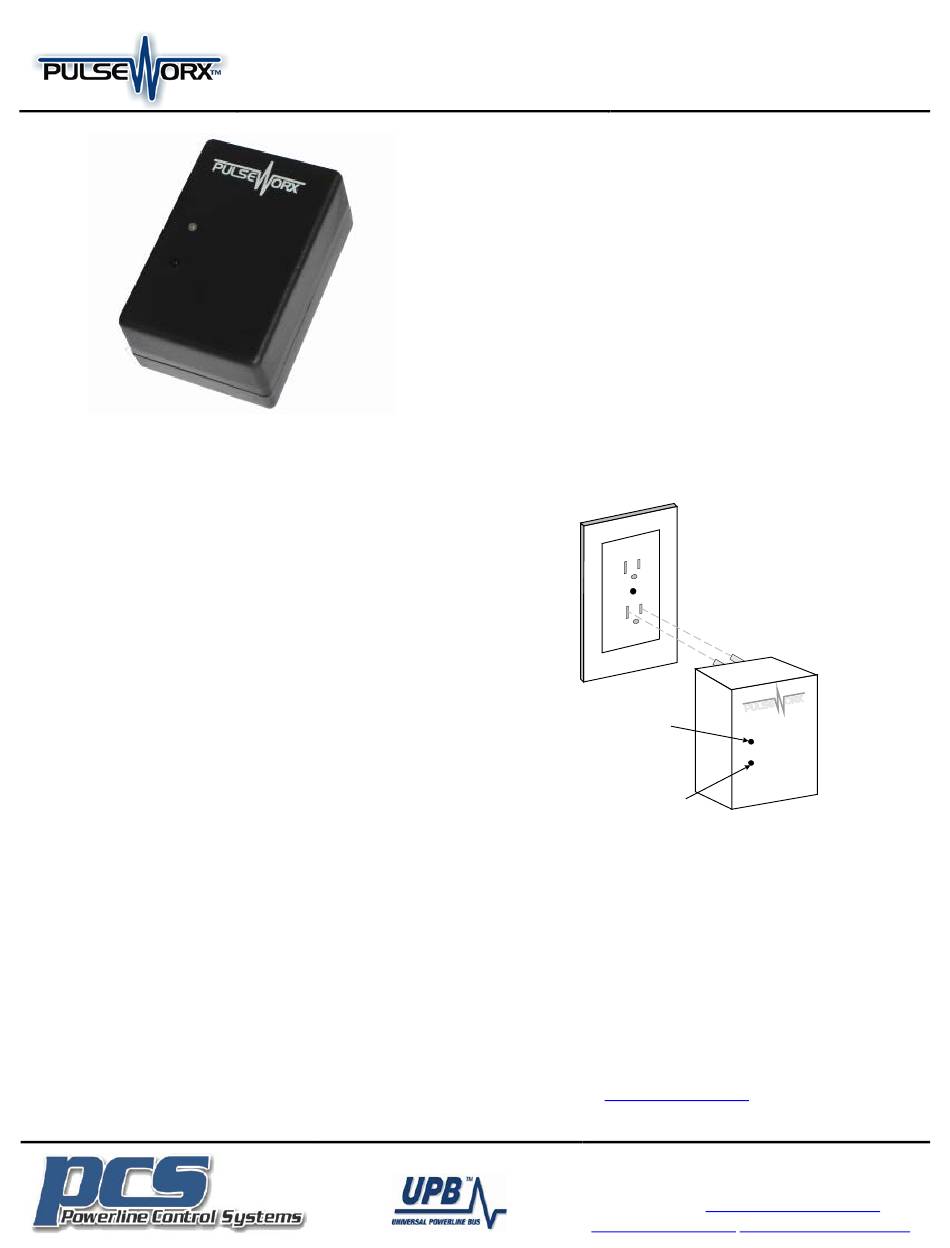

2. Plug the TEC into the wall outlet (see illustration).
3. Optionally, the TEC can be secured to the wall outlet by
screwing the wall plate center screw through the TEC's
mounting tab.
Status
LED
Program
Button
CONFIGURATION
After installation is complete, the TEC must be configured using
the UPStart Setup Software to set the location and event
schedules information. All programmed data is protected by non-
volatile memory and can only be changed or deleted by
reprogramming, regardless of power outage durations. A factory
installed lithium battery maintains accurate time and calendar
information for 10 years.
PCS has developed a Powerline Interface Module (PIM) and free
software (UPStart) to help you configure all of your PulseWorx
Lighting System devices. User's Guides are available on the
PulseWorx page at www.pcslighting.com
configure your system.
19215 Parthenia St. Suite D
Northridge, CA 91324
P: 818-701-9831
www.pcslighting.com https://pcswebstore.com
Owner's Manual
Wall
Outlet
to explain how to
