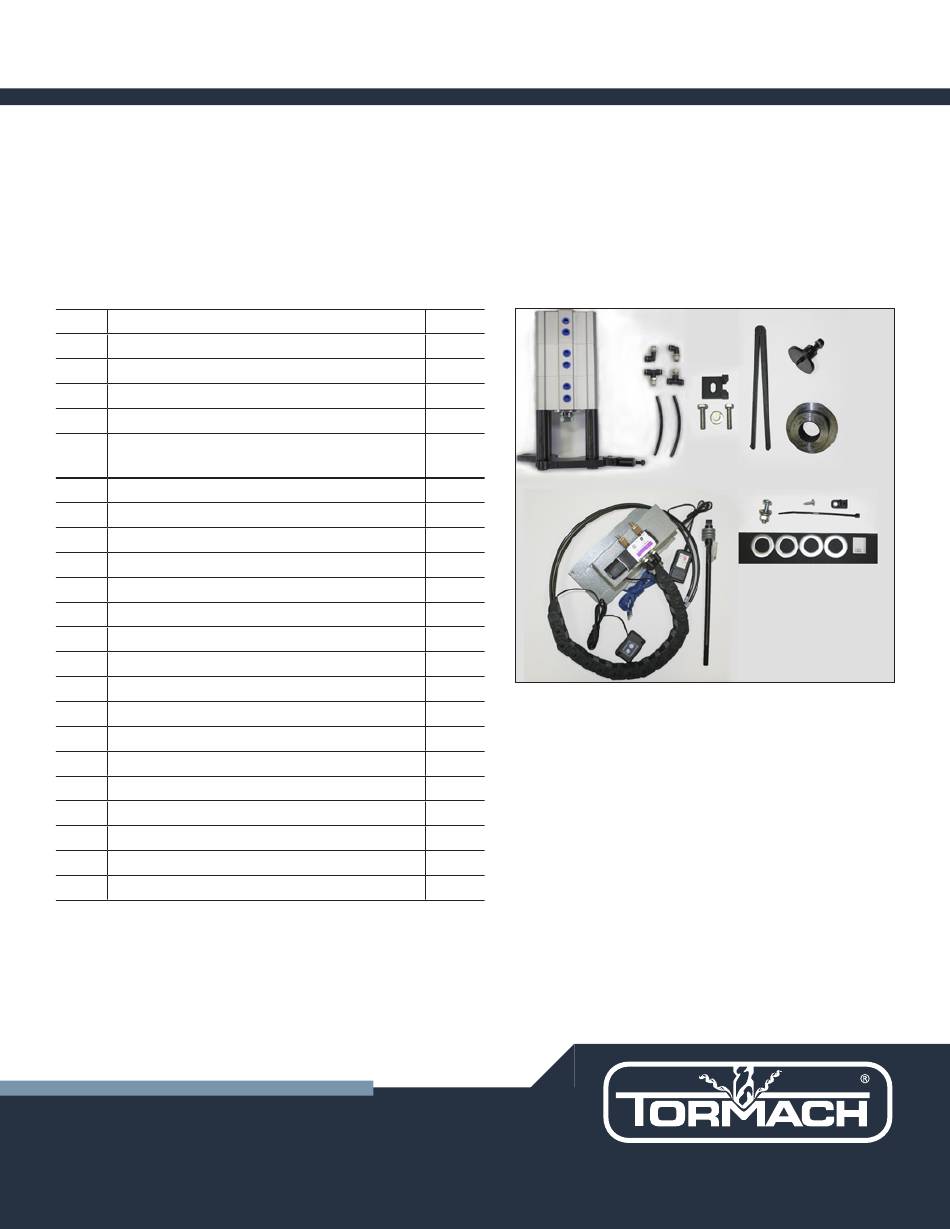

TECHNICAL DOCUMENT
PCNC 1100 Power Drawbar Installation
Product Identification: PCNC 1100 Power Drawbar (PN 31706)
Purpose: This document details installation of the Power Drawbar on the PCNC 1100 mill.
Qty. PCNC 1100 Power Drawbar
2
1/4 inch Plastic Tube: 112 mm
1
1/4-20 x 1 Screw w/ Flat Washer, Nut
2
105A Wire Labels
2
Air Fitting: Elbow
2
Air Fitting: T-connector
Cable Carrier End Bolt w/ Washer, Lock
1
Washer
1
Control Assembly
1
Cylinder Assembly
1
Drawbar
1
Drawbar Bushing
1
Eccentric Mounting Post
1
Leg Bracket
1
M6 x 25 mm Screw w/ Flat Washer
1
M6 x 45 mm Screw w/ Lock Washer
4
M16 Flat Washer
1
Pendant
1
Plastic Mount Tab
1
Sheet Metal Screw
1
Spanner Pin Wrench
1
Spindle Flange w/ Set Screw
8
Spring Washers
1
Thread Seal Tape
1
Wire Tie
NOTE: If any of these items are missing, contact Tormach
Customer Service for a replacement at (608) 849-8381.
©Tormach® 2017. All rights reserved.
Specifications subject to change without notice.
TD10039_PCNC1100_PowerDrawbar_0717A
PN
31457
31331
—
35924
35923
—
31470
31380
31320
31330
31316
31318
32371
31332
31445
31471
31460
31718
31118
31321
31319
—
31719
Page 1
TORMACH.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCNC 1100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tormach PCNC 1100 Series

Summary of Contents for Tormach PCNC 1100 Series

  • Page 1 Spring Washers 31319 Thread Seal Tape — Wire Tie 31719 NOTE: If any of these items are missing, contact Tormach Customer Service for a replacement at (608) 849-8381. ©Tormach® 2017. All rights reserved. Specifications subject to change without notice. TORMACH.COM TD10039_PCNC1100_PowerDrawbar_0717A...
  • Page 2 Electrical Requirements When Power Drawbar is used in combination with the Automatic Tool Changer (ATC), power is provided internally. Otherwise, the unit’s power requirements are 115-230 Vac. ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice.
  • Page 3 Elbow connector When complete, make sure your power drawbar cylinder matches Figure 3. 5. Identify two 112 mm 1/4 inch Plastic Tubes included with this kit. ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice.

  • Page 4: Power Off/On Procedure

    3. Remove and discard the existing spindle lock, spring, spacers, pin, and fasteners that are indicated by white dots in Figure 4. Figure 4 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...
  • Page 5 7. Inspect the top face of the Pulley for rust or other debris and clean if necessary. ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...

  • Page 6: Mechanical Assembly

    Spring Drawbar Washer Orientation Apply Spring multi- Washers purpose grease Bushing Pocket for Bushing Figure 9 Figure 8 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com Page 6...
  • Page 7 Leg Bracket 1/4-20 x 1 mm Screw with Flat Washer Figure 11 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...
  • Page 8 Power Drawbar. IMPORTANT! Make sure that the Hex Head Screw is tight on the cylinder rod when complete. ©Tormach® 2017. All rights reserved. Tormach, Inc.

  • Page 9: Control Assembly

    NOTE: Though it is not required, it may be easier to perform the following steps with the mill moved away from walls and other obstructions. 1. Remove the existing Z-axis motor mount cover; set aside screws. ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice.

  • Page 10: Electrical Connections

    NOTE: For both the terminal block and strip, the wiring numbers and layout shown in Figure 18 are the same. Figure 17 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...
  • Page 11 Pry the terminal clip open carefully. Then, insert the wire into the terminal block. c. Slowly remove the screwdriver. Figure 19 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...
  • Page 12 Do not exceed maximum pressure rating of 120 psi. Input Air (user must supply connections to 1/4 NPT port) Figure 21 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com Page 12...
  • Page 13 Pendant, mount the Pendant to the spindle head (see Figure 23 inset). Route the pendant’s wire as shown in Figure 23. Spindle Door Figure 23 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...
  • Page 14 11. Connect the air hoses to the cylinder (see Figure 25). 12. Plug the power cord into any 120 Vac outlet. Figure 25 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...

  • Page 15: Operation

    3. Perform belt change (for more information, refer to mill’s Operator Manual. 4. Reposition the Cylinder Assembly. 5. Lower the support leg. ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...
  • Page 16 Avoid these conditions: • High chatter machining • High cutter engagement (chip load) combined with high helix angle cutter geometries ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...

  • Page 17: Exhaust Valve Adjustment

    1. Top of the Power Drawbar (under the drawbar flange and the spring washers) 2. Eccentric pivot mount • Spring washers are wear items; inspect all spring washers once a month for cracks. Replacements available for purchase at www.tormach.com include: Description Power Drawbar Spring Washer 31319 •...

  • Page 18: Optional Accessories

    TECHNICAL DOCUMENT • The TTS collet and drawbar are wear items; using the power drawbar may cause these items to ® wear faster than with a manual drawbar. Replacements available for purchase at www.tormach.com include: Description Power Drawbar 1100/Bushing Assembly...
  • Page 19 VFD Interconnect control board (see Figure 32). Spindle Door Switch Interface Power Power Drawbar Foot Pedal Pendant Figure 32 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com Page 19...

  • Page 20: Troubleshooting

    Filter- (too high or low) pressure and there may not be enough Regulator-Lubricator (FRL) gauge. downward force available to release tool. ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...
  • Page 21 (for more information, refer to table binding Power Drawbar Will Not Release earlier in this section). Inspect, adjust, and replace components as necessary. ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10039_PCNC1100_PowerDrawbar_0717A tormach.com...
