Summary of Contents for Seca 333 i

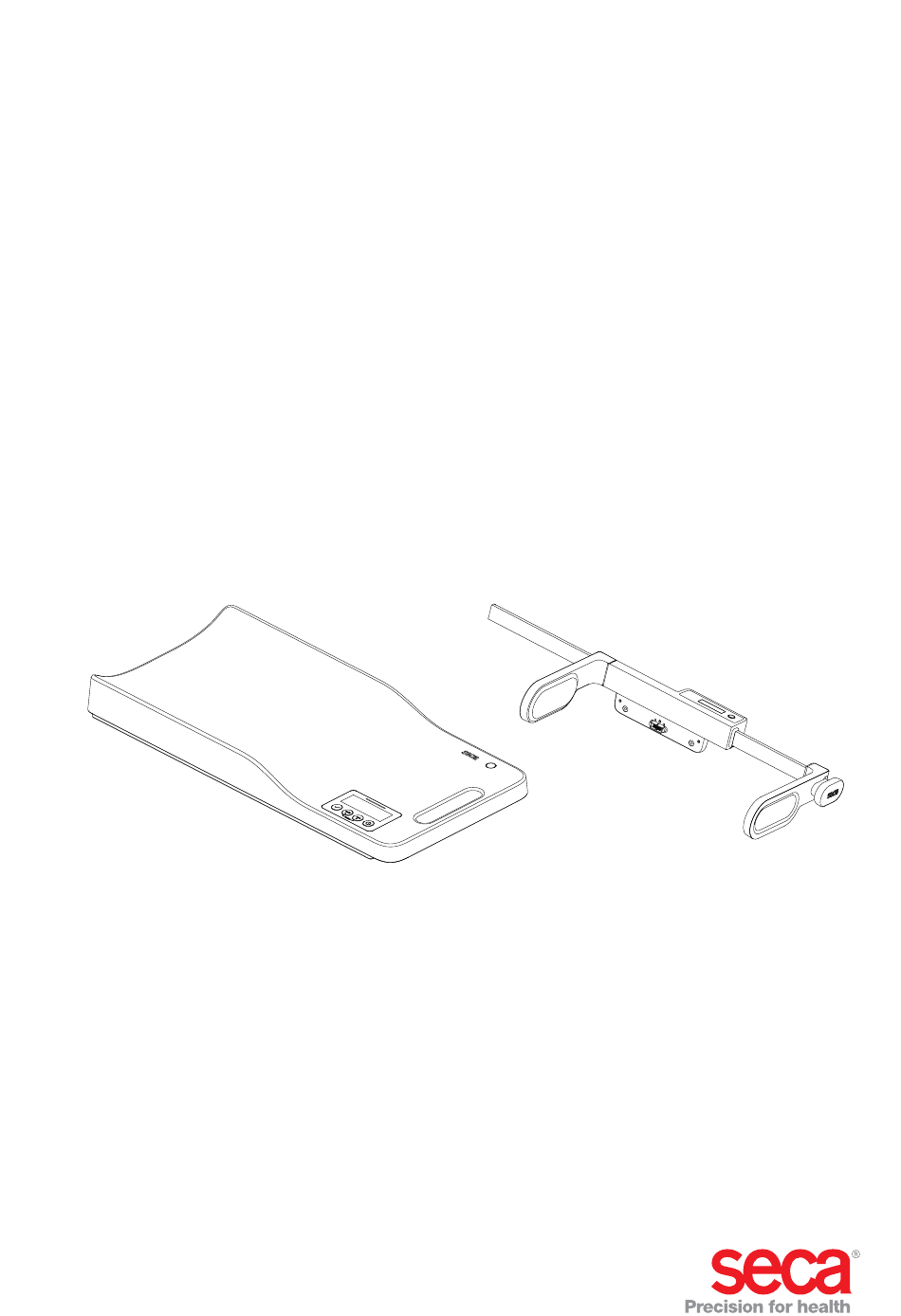

- Page 1 333 i seca 234 / 232 n...
-
Page 2: Table Of Contents
15. Declaration of conformity ....68 network (seca connect 103) ....52 15.1 For Europe . -

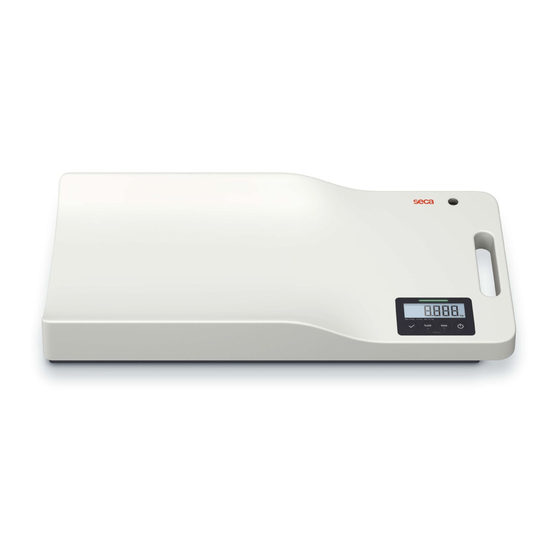

Page 3: Description Of Device
WiFi interface model can transmit measured results to a hospital information seca 333 i system (HIS) or to seca software via a WiFi connection. Measuring rod The scale can be expanded into a measuring station by means of analog measuring rod... -
Page 4: Safety Information
Only have servicing and repairs performed by an authorized seca Service partner. ► Only use original seca accessories and spare parts, otherwise seca will not grant any warranty. Safety information • 39... -
Page 5: Preventing Electric Shock
CAUTION! Patient hazard, malfunction ► Keep other electrical medical devices, e.g. high-frequency surgical devices, a minimum distance of approx. 1 meter away to prevent incorrect measurements or wireless transmission interference. ► Keep HF devices such as cell phones a minimum distance of approx. -
Page 6: Preventing Damage To Device
NOTICE! Inconsistent measuring results ► Before you electronically save measurement values determined us- ing this device and use them further (e.g. in seca PC software or in a hospital information system), make sure that the measurement values are plausible. ►... -
Page 7: Handling Packaging Material
If you do not use the device for a long period of time, remove the batteries (incl. rechargeable batteries). This prevents acid from leak- ing into the device. ► If acid leaked into the device, discontinue use. Have the device checked by an authorised seca Service partner and repaired if necessary. 42 •... -
Page 8: Overview
3.1 Controls Control Function Enter key • During weighing: - Transmit measured results to a hospital information system - Transmit measured results to seca software • In the menu: - Confirm selected menu item - Set value arrow key hold •... -
Page 9: Controls For Seca 234 Measuring Rod (Optional)
• Illuminated in red (approx. 5 seconds, see “Data transmission (models with a WiFi interface)” Status LED from page 38): - ID found in hospital information system (HIS) or in seca software. - Device has saved measured results to the clipboard. - Measured results have been sent to an HIS or to seca software. -
Page 10: Controls For Seca 232 N Measuring Rod (Optional)
English 3.3 Controls for seca 232 n measuring rod (optional) Control Function For positioning the baby Head stop Measuring rod with For reading off length scale For positioning the baby Foot stop For moving the foot stop Handle Overview • 45... -
Page 11: Menu Structure
3.4 Menu structure System Permanent Learn * Beep Press Hold Brightness Short Duration Long Permanent Auto-Off 30...600 S Autohold Sto 1 BMIF Store Sto 2 Sto 3 Sto 1 Calc Sto 2 Sto 3 Filter Unit Length 50 cm Calibration* Navigation: cm 0.1 cm 0.5... -
Page 12: Symbols In The Display
English 3.5 Symbols in the display Symbol Meaning Batteries are low Flashing: Select memory (BMIF) Differential value function (BMIF) active Operation with power supply unit Non-verifiable function active Hold function active HOLD Tare function active Select memory (BMIF function) Measured result in memory 1 (BMIF function) Access Point function active (service function) Indicates the status of the WiFi connection and the field strength of the WiFi network (models with WiFi module):... -
Page 13: Markings On The Packaging
A max. xx A • : Note polarity of device plug use compatible seca adapter only • : Operate device with direct current USB interface (models with a WiFi interface) Do not dispose of device with household waste Device meets the requirements of the USA and Canada. -
Page 14: Making The Device Operational
English Not sterile Do not reuse Open packaging here Packaging material can be disposed of through recycling programs 4. MAKING THE DEVICE OPERATIONAL 4.1 Scope of delivery USA/Japan Euro Australia Component Pcs. Baby scale Power supply unit with adapters (depending on model: power supply unit with Euro connector) Type AA batteries, 1.5 V Instructions for use, not shown... -
Page 15: Establishing The Power Supply
The scale may overheat, catch fire, melt or short- circuit. ► Use only original seca power supply units with controlled 12 V out- put voltage. 1. Plug the device connector required for your power supply into the power supply unit. -
Page 16: Connecting The Barcode Scanner
Depending on the settings, the barcode scanner allows patient and user IDs to be read and the patient data called up in an HIS or in seca software. Measured results are then assigned to the patient data automatically and can be saved in the HIS. -
Page 17: Connecting The Device To The Wifi
Connecting the device to the WiFi Connect your device to the WiFi network via the software if seca connect 103 network (seca connect 103) you do not have any access to the WPS function of the router or want to incorporate several devices: NOTE As soon as the device is connected to a WiFi network, the Autohold function is activated automatically. -
Page 18: Taring Off Additional Weight (Tare)
English All the elements of the display are shown briefly, then appears in the seca display. The scale is operational when appears in the display. 0.000 If the scale is operated with a power supply unit, the symbol appears in the display. -
Page 19: Switching Off The Scale
symbol and the “HOLD” message are no longer displayed. 0.000 appears in the display. If required, you can perform another weighing operation. Switching off the scale ► Press the Start key. NOTE In battery mode, the scale remains on standby for 60 seconds. If there is no input during standby time, the scale switches off automatically. -
Page 20: Measuring With The Analog Measuring Rod
The measured value for length is transmitted to the scale. 6. In order to transmit measured values to an HIS or to seca software, proceed as described in the section entitled “Measuring with barcode detection” from page 55. -
Page 21: Switching Off The Scale
“Mea- seca 234 suring with the digital measuring rod” from page 55). 6. Press Enter to send measured values to the HIS or to seca software. The status LED flashes green (approx. 5 seconds) while the data are being transmitted. -
Page 22: Other Functions (Menu)
English 5.4 Other functions (menu) Other functions are available to you in the menu for the scale. This enables you to configure the scale to suit your conditions of use perfectly. A summary of the menu structure can be found in “Menu structure” on page 46. -
Page 23: Activating The Autohold (Ahold) Function
11. Confirm your selection. 12. Select the “CALC” menu item. 13. Confirm your selection. 14. Select the memory to which you saved the initial weight of the baby. Arrows flash in the display. 15. Confirm your selection. The weight difference, i.e. the amount of breast milk taken, is displayed. 16. -
Page 24: Setting Filtering (Fil)
English Setting filtering (FIL) Filtering (FIL) allows you to reduce interference (e.g. as a result of patient movement) when determining weight. 1. Select the item “FIL” from the menu. 2. Confirm your selection. The current setting is displayed. 3. Select a filtering level. –... -
Page 25: Switching Unit Of Weight (Unit)
4. Confirm your selection. You exit the menu automatically. Switching unit of weight (UnIT) On non-verified scales, you can select the unit (Unit) in which you want weight to be displayed. CAUTION! Hazard to patient To prevent misinterpretations, measured results for medical purposes may only be displayed and used in SI units (weight: kilograms, length: meters). -
Page 26: Restoring Factory Settings (Reset)
3. Set up a new WiFi connection as described in the section entitled “Con- necting the device to the WiFi network (WPS)” on page 51 or “Connecting the device to the WiFi network (seca connect 103)” on page 52. 6. HYGIENE TREATMENT... -
Page 27: Cleaning
CAUTION! Damage to device Inappropriate detergents and disinfectants may damage the sensitive surfaces of the device. ► Use only disinfectants free of chlorine and alcohol which are explic- itly suitable for acrylic sheet and other sensitive surfaces (active in- gredient: quaternary ammonium compounds, for example). ►... -
Page 28: Function Check
“What do I do if ...” in this document, you may not use the device. ► Have the device repaired by seca Service or by an authorized ser- vice partner. ►... -
Page 29: Data Transmission (Models With A Wifi Interface)
... the display noChG appears when the WiFi - Select PErM option interface is activated? - Use power supply unit (recommended) • ID found in hospital information system (HIS) or in seca software (see fault Id:Err • Device has saved measured results to the clipboard. -
Page 30: Changing Batteries
3 to 5 years. NOTICE! Incorrect measurements as a result of poor servicing ► Have servicing and repairs carried out exclusively by seca Service or by an authorized service partner. ► You can find service partners in your area or by sending an e-mail 10.TECHNICAL DATA... -
Page 31: Weighing Technology Data
Duty cycle Continuous duty Interfaces (model-dependent): • Barcode scanner USB 2.0 • seca software and hospital information system WiFi (IEEE 802.11b/g/n/e/i) configuration software can be seca connect 103 downloaded in the Download area for the device 10.2 Weighing technology data... -
Page 32: Technical Data, Length Measurement
1 mm (Display graduations can be adjusted: 1 mm, 5 mm, 10 mm) - Accuracy ± 5 mm Analog measuring rod seca 232 n - Measuring range 35 - 80 cm - Graduations 1 mm - Accuracy ± 5 mm 11.OPTIONAL ACCESSORIES... -
Page 33: Warranty
The warranty shall become null and void where the device is opened by per- sons not expressly authorised to do so by seca. In the event of a warranty issue, please contact your local seca office or the dealer from whom you ordered the product. - Page 34 English NOTE: Radiofrequency radiation exposure information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 1 m between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
