  • Page 1 Keysight Wireless Instruments E7760B Wideband Transceiver Getting Started Guide...
  • Page 2 FURNISHING, USE, OR these rights customarily provided PERFORMANCE OF THIS to the public to use, modify, DOCUMENT OR ANY INFORMATION reproduce, release, perform, CONTAINED HEREIN. SHOULD display, or disclose commercial KEYSIGHT AND THE USER HAVE A computer software or SEPARATE WRITTEN AGREEMENT...
  • Page 3 URLs, according to the name of your product. http://www.keysight.com/find/e7760b To receive the latest updates by email, subscribe to Keysight Email Updates at the following URL: http://www.keysight.com/find/MyKeysight Information on preventing instrument damage can be found at: www.keysight.com/find/PreventingInstrumentRepair...

  • Page 5: Table Of Contents

    Contents Table of Contents Safety & Environmental Information 9 Warning Statements and Symbols 10 Safety 11 Safety Compliance 11 Acoustic statement (European Machinery Directive) 11 General Safety Notices 11 Cleaning 12 Environmental Conditions (Operating) 12 Environmental Stress Testing 12 EMC (Electromagnetic Compatibility) 13 South Korean Class A EMC declaration 13 Declaration of Conformity 13 Ventilation 14...
  • Page 6 Port Rules (IFIO Ports) 57 LAN Address Configuration 58 Receiver Setup 59 Source Setup 63 Test Set Operating System 67 Keysight Software Installed 68 Customer Installation of Software 68 User Accounts 69 Administrator login 69 User login 69 Customer creation of accounts 70...
  • Page 7 Ending a Remote Desktop session 107 Windows Taskbar Auto-Hide Feature 108 Troubleshooting 109 Where to get technical help 110 Identifying Problems 110 Returning Your Test Set for Service 112 Calling Keysight Technologies 112 Locations for Keysight Technologies 113 Getting Started Guide...
  • Page 8 Contents Getting Started Guide...

  • Page 9: Safety & Environmental Information

    Keysight Wireless Test Set E7760B Wideband Transceiver Getting Started Guide Safety & Environmental Information The following topics can be found in this section: “Warning Statements and Symbols” on page 10 “Safety” on page 11 “Environmental Conditions (Operating)” on page 12 “EMC (Electromagnetic Compatibility)”...

  • Page 10: Warning Statements And Symbols

    Safety & Environmental Information Warning Statements and Symbols Warning Statements and Symbols Caution and Warning notices are used in this document are described below. A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in damage to the product or loss of important data.

  • Page 11: Safety

    Safety & Environmental Information Safety Safety This product has been designed and tested in accordance with accepted industry standards, and has been supplied in a safe condition.The documentation contains information and warnings that must be followed by the user to ensure safe operation and to maintain the product in a safe condition.

  • Page 12: Cleaning

    Cleaning To prevent electrical shock, disconnect the Keysight Technologies Model E7760B from mains before cleaning. Use a dry cloth or one slightly dampened with water to clean the external case parts. Do not attempt to clean internally. Cleaning connectors with alcohol shall only be done with the instruments power cord removed, and in a well-ventilated area.

  • Page 13: Emc (Electromagnetic Compatibility)

    In a residential environment this equipment may cause radio interference. This EMC statement applies to the equipment only for use in business environment.. Declaration of Conformity The Declaration of Conformity for any Keysight product can be found on the website: http://www.keysight.com/go/conformity Getting Started Guide...

  • Page 14: Ventilation

    10°C from the lowest, of the maximum operating temperature of a single instrument. If there are any concerns or special requirements an Keysight Field Engineer should be consulted to assure instrument(s) temperature compliance and performance.

  • Page 15: Power Requirements

    Safety & Environmental Information Power requirements Power requirements Line voltage does not need to be selected. This test set does not contain customer serviceable fuses. This is a Safety Class 1 Product (provided with a protective earthing ground incorporated in the power cord). The mains plug shall only be inserted in a socket outlet provided with a protective earth contact.

  • Page 16: Ac Power Cord

    The test set is equipped with a three-wire power cord, in accordance with international safety standards. This cable grounds the test set cabinet when connected to an appropriate power line outlet. Use the Keysight supplied power cord, or one with the same or better electrical rating. The cable appropriate to the original shipping location is included with the test set.

  • Page 17: Weight And Dimensions

    Safety & Environmental Information Weight and Dimensions Weight and Dimensions The weight and dimensions of the E7760B are as follows. — Weight: 16.3 kg — Height: 102 mm — Width: 425 mm — Depth: 555 mm Protecting against electrostatic discharge...
  • Page 18 Safety & Environmental Information Protecting against electrostatic discharge Getting Started Guide...

  • Page 19: Quick Start

    Getting Started Guide 2 Quick Start This section describes how to set up your E7760B, install product licenses, and provide test set maintenance. You can also contact your Keysight representative to obtain on-site start-up assistance to help you with all steps outlined in this section, which is included with your E7760B purchase.

  • Page 20: Introduction

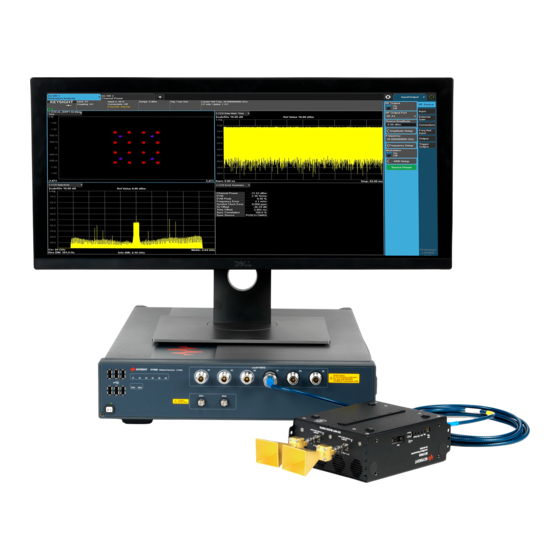

    The E7760B Wideband Transceiver is a test set which generates and measures high-frequency signals used in 5G testing. The E7760B features two IFIO ports (6-18 GHz) and six mmWave ports (24-44 GHz). The mmWave ports are designed to connect with a test head, such as the M1740A mmWave Transceiver (~28 GHz);...
  • Page 21 A signal returned from the DUT is downconverted to the range of the E7760B, and provided to the E7760B at input port B1 for measurement. Also, an IF output from the DUT is provided to the E7760B’s IFIO1 port for for measurement.

  • Page 22: Initial Inspection

    Inspect the shipping container and the cushioning material for signs of stress. Retain undamaged shipping materials for future use, as you may wish to ship the test set to another location or to Keysight Technologies for service. Verify the contents of the container against the table below.

  • Page 23: Shipping Problems

    Includes two flange brackets. Handle Kit (1CN106A) (Optional) Includes two handles. The E7760B is often used in conjunction with a mmWave Transceiver (a test head), but that is a separate purchase and is not always shipped with the E7760B. Shipping Problems?

  • Page 24: Instrument Location And Rack Mounting Requirements

    Based on the type of equipment rack you have, you must determine what rack rails you need. If you are using a Keysight System Test Rack, you can find information on what to order by referring to the Rack Mounting Flange Kit (Option E7515A-1CM) Installation Note.
  • Page 25 10°C from the lowest maximum operating temperature of a single instrument. If there are any concerns or special requirements a Keysight Field Engineer should be consulted to assure instrument(s) temperature compliance and performance.

  • Page 26: Turning On The Test Set The First Time

    Connect the RF cable (or cables) Such connections need to be made before powering up the mmWave from the mmWave Transceiver E7760B; the test set will not recognize the connection if it is Transceivers which (or Transceivers) to the desired made after power-up.
  • Page 27 5G NR Certificate includes instructions Non-Signaling on how to redeem your license; Waveform and download the application from Measurement Keysight Software Manager, and Application, if it is install the application on the not installed E7760B. already (see the previous step).

  • Page 28: Licensing

    — E7760B-FB1 (24.25 to 29.5 GHz; used in 5G testing with the M1740A mm Wave Transceiver) — E7760B-FB5 (37 to 40 GHz; used in 5G testing with the M1740A mm Wave Transceiver) — E7760B-FB6 (40 to 43.5 GHz; used in 5G testing with the M1740A mm...

  • Page 29: Anti-Virus Protection And Firewalls

    No anti-virus software is shipped with the instrument. It is recommended that you install anti-virus software if your E7760B is connected to the LAN. Check with your IT department for recommendations. Take care to verify that USB memory devices used with the E7760B are virus-free before using with the instrument.
  • Page 30 Quick Start Anti-virus Protection and Firewalls Getting Started Guide...

  • Page 31: Front And Rear Panel Functions

    Keysight Wireless Test Set E7760B Wideband Transceiver Getting Started Guide 3 Front and Rear Panel Functions The following topics can be found in this section: “Front Panel Features” on page 32 “Rear Panel Features” on page 34 “Front and Rear Panel Symbols” on page 35...

  • Page 32: Front Panel Features

    Transceiver, by means of a special RF cable which is provided with the transceiver. and control signals Do not connect or disconnect the RF cable, at these ports or at the mmWave Transceiver, while power is applied to the E7760B. Also note the label: “Port Rules (mmWave For port usage information, see Ports)”...
  • Page 33 Front and Rear Panel Functions Front Panel Features Number Name Description IF Port LEDS The LEDs are used to indicate port usage for the IF Ports. The LED for a particular port will be blue if it is being used as an output port (providing a stimulus to the DUT) or green if it is being used as an input port (measuring a signal received from the DUT).

  • Page 34: Rear Panel Features

    Front and Rear Panel Functions Rear Panel Features Rear Panel Features Figure 3-2 E7760B Rear Panel The features are described in the table below. Name Description Number Line Power The AC Power Connection. SYNC 1 & 2 Reserved for future use.

  • Page 35: Front And Rear Panel Symbols

    The CE mark is a registered trademark of the European Community. The Keysight email address is required by EU directives applicable to our product. The RCM mark is a registered trademark of the Australian Communications and Media Authority.
  • Page 36 Front and Rear Panel Functions Front and Rear Panel Symbols Symbol Description This symbol indicates separate collection for electrical and electronic equipment mandated under EU law as of August 13, 2005. All electric and electronic equipment are required to be separated from normal waste for disposal (Reference WEEE Directive 2002/96/EC).

  • Page 37: User Interface

    Getting Started Guide 4 User Interface This is a basic introduction to the E7760B’s user interface. For more detailed information, see the E7760B 5G User Guide, which is accessible from the Help menu. The following topics can be found in this section:...

  • Page 38: Screen Interface

    User Interface Screen Interface Screen Interface The overall appearance of the display interface is illustrated below. Different parts of it are discussed in more detail in the following sections. Figure 4-1 Application display interface (with results windows for Modulation Analysis) Getting Started Guide...

  • Page 39: Screen Tabs

    User Interface Screen Interface Elements of the interface are discussed in more detail in the following sections. Figure 4-2 Elements of the display interface Screen Tabs These are used to select a measurement screen for viewing and configuration (to add another screen, click the + button at the right of the existing tabs). Figure 4-3 Screen tabs Clicking on the currently selected tab brings up the Mode/Meas/View dialog,...
  • Page 40 User Interface Screen Interface Figure 4-4 Mode/Meas/View dialog Getting Started Guide...

  • Page 41: System Settings

    User Interface Screen Interface System Settings Clicking the "gear" icon opens the System Settings dialog, which allows you to access various information screens and settings interfaces. The tabs on the left side let you access various configuration screens. Figure 4-5 System Settings The System Settings screens include: —...

  • Page 42: Preset

    User Interface Screen Interface Preset Clicking this icon opens a menu which provides access to the various ways in which settings can be restored to a default condition or a condition you defined earlier. Figure 4-6 Preset Getting Started Guide...

  • Page 43: Meas Bar

    User Interface Screen Interface Meas Bar This bar displays important settings for the measurement, in a series of annotation panels which can be clicked on to reveal menu choices for them. The panel at the far left, for example, allows you to toggle between continuous and single measurement modes, and also to restart or pause a measurement.

  • Page 44: Menu Panel

    User Interface Screen Interface Menu Panel Clicking on the name at the top of the menu offers the available menus (Amplitude, BW, and so on) for selection. The selected menu is usually divided into separate sub-menus, any of which can be selected by clicking on the tabs to the right (for example, the tabs on the right of the Amplitude menu represent the Y Scale and Range sub-menus).

  • Page 45: Measurement Display

    User Interface Screen Interface Measurement Display The interface is centered around the display windows, which show the results of a measurement. The number of windows and the type of information displayed in them varies from measurement to measurement. For example, the Modulation Analysis measurement example below shows a constellation diagram, three graphical displays, and two tables of numerical data.
  • Page 46 User Interface Screen Interface The Adjacent Channel Power measurement below is simpler, showing only one graph (for Gaussian noise distribution) and one table of numerical data Figure 4-10 Measurement Display for ACP Getting Started Guide...

  • Page 47: Control Bar

    User Interface Screen Interface Control Bar This provides controls and information displays related to various instrument functions that are independent of the current measurement. Figure 4-11 Control Bar Getting Started Guide...

  • Page 48: Command Interface

    User Interface Command Interface Command Interface In addition to being controlled and monitored by way of the screen interface, the instrument can be controlled and monitored by means of SCPI commands. For example, averaging can be disabled for the ACP measurement screen by changing the Averaging setting to On in the Meas Setup >...
  • Page 49 Detailed information about the SCPI commands and how they are used is provided in the E7760B 5G User’s Guide and in the help file for the 5G application. Getting Started Guide...
  • Page 50 User Interface Command Interface Getting Started Guide...

  • Page 51: Operating Tasks

    Keysight Wireless Test Set E7760B Wideband Transceiver Getting Started Guide 5 Operating Tasks The following topics can be found in this section: “Alignments” on page 52 “Port Configuration” on page 54 “LAN Address Configuration” on page 58 “Receiver Setup” on page 59...

  • Page 52: Alignments

    "All" Alignment This alignment of the source and analyzer in the E7760B is sufficient to maintain specified performance, provided that (1) the instrument’s internal temperature has not drifted more than 5° C since the previous alignment, and (2) no more than 24 hours have elapsed since the previous “All”...

  • Page 53: Other Alignments

    Operating Tasks Alignments Other Alignments Three other types of alignments can be run, as described below. Cable Alignment To run the alignment, select System Settings > Alignments > Align Cable, or send the SCPI command: :CAL:CABL It is necessary to run this alignment again any time the mmWave Transceiver or the RF Cable Assembly is changed, or the RF Cable Assembly is moved from one port to another, or from one mmWave Transceiver to another.

  • Page 54: Port Configuration

    Port Configuration Types of Ports The E7760B has two types of ports. The six mmWave Ports (A1-A3 and B1-B3) are used in conjunction with a mmWave Transceiver (M1740A, in the case of 5G testing), a test head which exchanges signals with a mmWave DUT through an Over-The-Air interface.

  • Page 55: Configuring Ports

    Operating Tasks Port Configuration Configuring Ports A given port can be configured as the output (source) port by selecting the port at Input/Output > RF Source > RF Output Port, or by sending the command: :SENSe:FEED:RF:PORT:OUTPut NONE|A1|A2|A3|B1|B2|B3|IFIO1|IFIO2 The equivalent for the input (analyzer) port is: Input/Output >...

  • Page 56: Port Rules (Mmwave Ports)

    RF Output to "Off", or send the command :OUTPut OFF. Port connections to the M1740A mmWave Transceiver When the E7760B is used with the M1740A mmWave Transceiver, port connections are always as follows: — LO/Pwr/Ctrl/IF In on the M1740A is connected to one of the "A" mmW Ports of the E7760B (A1, A2, or A3).

  • Page 57: Port Rules (Ifio Ports)

    Operating Tasks Port Configuration Port Rules (IFIO Ports) The IFIO ports (IFIO1 and IFIO2) have the following usage requirements: — The RF2 license is required to use the RFIO ports. — Neither of the two RFIO ports can transmit and receive at the same time. If IFIO1 is the Output Port, the Input Port must be IFIO2, and vice versa.

  • Page 58: Lan Address Configuration

    Operating Tasks LAN Address Configuration LAN Address Configuration The E7760B supports both dynamic and static assignment of its IP address, using the LAN port. The LAN port is designed for dynamic IP addressing, using the Dynamic Host Configuration Protocol. If the your site network supports DHCP, the E7760B will be assigned an IP address automatically when it is connected to the LAN.

  • Page 59: Receiver Setup

    Operating Tasks Receiver Setup Receiver Setup The analyzer/receiver function of the E7760B relates to measurement of signals received from the DUT. Clicking on the tab at the upper left corner of the display opens the Mode/Measurement/View selector, which you can use to select a particular kind of measurement.
  • Page 60 Operating Tasks Receiver Setup Most measurement settings are made from the menus, which can be accessed by selecting the dropdown button near the upper right of the display. Figure 5-4 Accessing Menus Selecting a menu from the dropdown list displays the menu selections (usually the selections are indented under multiple tabs shown at the right).
  • Page 61 Operating Tasks Receiver Setup Although some menu choices involve only a simple selection (On | Off) or a value to be entered (17 GHz), some choices cause a more elaborate selection screen to appear in the display. In the example illustrated below, Trigger > Trigger Settings Diagram opens an interactive display (the trigger source can be changed from Internal to Ext 1 by clicking on the graphic).
  • Page 62 Carrier, Offset, and Limits settings. Figure 5-7 Configuration Window The menu choices are different for each measurement. For more detailed information, see the E7760B 5G User’s Guide and in the help file for the 5G application. Getting Started Guide...

  • Page 63: Source Setup

    Operating Tasks Source Setup Source Setup The source function of the E7760B relates to generation of test signals to be transmitted to the DUT. (Not all measurement scenarios require these signals, but many do.) Most source settings are made from the Input/Output > RF Source menu, illustrated below.
  • Page 64 Operating Tasks Source Setup The ARB Setup window can be used to configure various functions of the arbitrary waveform generator. Figure 5-9 ARB Setup Window Getting Started Guide...
  • Page 65 Often the source will employ a user-defined waveform file for modulation (typically such a file would be created in Keysight Signal Studio software). To load a waveform file that is saved in a location on the disk drive, click the File icon at the bottom of the screen, and click the Recall icon which appears.
  • Page 66 Operating Tasks Source Setup Getting Started Guide...

  • Page 67: Test Set Operating System

    Getting Started Guide 6 Test Set Operating System The following topics can be found in this section: “Keysight Software Installed” on page 68 “User Accounts” on page 69 “Keysight Licensing Options” on page 71 “Licensing New Application Software - After Initial Purchase” on page 76 “Transporting a License Between Test Sets”...

  • Page 68: Keysight Software Installed

    Also, you must not remove any applications or programs that are installed on the test set when it is shipped from the factory. If you install programs other than those that Keysight has tested, it could cause problems with the test set's applications. If this happens, you should try uninstalling the program that has caused the problem, or try changing the program's configuration.

  • Page 69: User Accounts

    Test Set Operating System User Accounts User Accounts Administrator login The Administrator account ships from the factory with the password “Keysight4u!”. Using the Administrator account you can perform the following operations: — Install software — Configure network and printer access —...

  • Page 70: Customer Creation Of Accounts

    Administrator or Power User privileges. Otherwise, the test set software will not operate correctly. It is Keysight’s expectation that each user’s My Documents folder is mapped to the D: drive. This is to avoid overwriting the user’s data in the event the Keysight Recovery must be performed.

  • Page 71: Keysight Licensing Options

    Licenses can be either time-based or perpetual (the latter have no expiration date). To verify which licenses are installed, open the Keysight License Manager from the Windows Start menu. (It can also be opened by clicking the "gear" icon at the upper left to open the System Settings screen, and clicking Licensing >...

  • Page 72: Node-Locked License

    Trial licenses, which are sometimes provided by Keysight so that customers can try out a product, are node-locked, time-based licenses. Trial licenses are issued for a particular instrument or computer, and have an expiration date.

  • Page 73: Usb-Portable License

    (Select Help > Keysight License Manager Help and search for “transport” to find detailed instructions.) Transportable licenses for the E7760B allow you to transport licenses up to 30 times within 10 days. Other related topics for managing your software and licenses can be found by reviewing the Keysight License Manager Help available by clicking "?"...

  • Page 74: Floating License

    A floating license (sometimes referred to as a network license) is another type of transferable license, in which the license is assigned temporarily by a designated license server. Setup your license server by installing Keysight License Manager 6. Floating licenses reside on the license server and are checked out for use by...

  • Page 75: Keysight License Manager

    Test Set Operating System Keysight Licensing Options Keysight License Manager Keysight License Manager exists in two forms. KLM 5.x (revision 5.3 or later) is used for node-locked and transportable licenses. KLM 6 is used for floating and USB-portable licenses. KLM 5.x should not be regarded as an outdated version of KLM 6. These are separate tools, used for different types of licenses.

  • Page 76: Licensing New Application Software - After Initial Purchase

    Licensing New Application Software - After Initial Purchase Additional measurement application software can be ordered after your initial purchase of the E7760B test set. Software upgrades are provided in a kit that includes an option based Entitlement Certificate. The licenses are downloaded from the license Web site onto a storage device so they can be loaded into the instrument.
  • Page 77 System Information window, verify that completion, the Keysight License Manager the new license is listed. displays a “Successful License Installation” message. 5. Restart the E7760B Close the E7760B Application and Application re-launch it, to activate the new license. Getting Started Guide...

  • Page 78: Transporting A License Between Test Sets

    Transportable licenses are identified as such in the Type column of Keysight License Manager. To transport a license from one test set to another, Keysight recommends that both test sets be at the same instrument software release. This ensures that the user experience is identical between instruments.
  • Page 79 4. Start the License Using the Windows Start menu on the source instrument, open Keysight License Manager. Manager on the It may take a minute for the Keysight License Manager screen to be fully populated with all Source Instrument the installed licenses: 5.
  • Page 80 3.Close the Save dialog and exit the KSM Transportation Web page. 8. Install License File in Follow these steps: The Keysight License Services running on Target Instrument the target instrument looks for *.lic files 1.With the target instrument whenever it detects a USB device has been running, insert the USB flash inserted.

  • Page 81: Windows Configuration

    To recover from problems caused by changing Windows systems settings, you may have to reinstall the Windows system and test set application using the Keysight Recovery process. Settings that can be changed You may change the following Windows settings or administrative tasks (available from the Windows Control Panel) to select your personal preferences.

  • Page 82: Settings That Must Not Be Changed

    —The “Microsoft Visual J# .NET Redistributable Package 1.1" —Programs that begin with “Keysight” —The Adobe Acrobat Reader Modify the Keysight I/O Library “GPIB27”, “GPIB28” interfaces shown as configured Instrument I/O in the Keysight Connection Expert or I/O Config Getting Started Guide...

  • Page 83: Configuring Printers

    Test Set Operating System Configuring Printers Configuring Printers To open the printer configuration window, select File > Print, or click the printer icon in the toolbar. This setup process is most easily done using a USB mouse and an external keyboard. When setting up a new printer, you may need to load the printer driver (unless you are using a network printer that your IT department has set up to include the driver).

  • Page 84: Configuring The Lan

    The Computer Name, or hostname, is pre-configured from the factory. It must be a unique name so that it does not conflict with other equipment on your LAN. The pre-configured Computer Name is K-E7760B-xxxxx, where xxxxx represents the last 5 digits of the test set serial number.

  • Page 85: Windows Security

    Test Set Operating System Windows Security Windows Security Microsoft recommends the following to ensure the test set Windows operating system is protected: — Use an internet firewall. — Get the latest critical Windows updates. — Use up-to-date antivirus software. To check the status or make changes in the security settings for your test set, click Start, Control Panel, and then System and Security.

  • Page 86: Windows Firewall

    Test Set Operating System Windows Security Windows Firewall Click Windows Firewall in the System and Security window to check the firewall status of your test set. The test set is shipped with the Windows Firewall enabled. The window may look slightly different on your test set. Windows Firewall exceptions for programs and ports have been added to allow proper operation of the test set over a network.

  • Page 87: Automatic Updates

    Windows Update > Check for updates on the System and Security window. Keysight recommends making Windows updates as they become available. However, be aware that downloading and installing Windows Updates can be network and CPU usage intensive (impacting the test set performance), and some Windows Updates automatically reboot the test set.

  • Page 88: Virus Protection

    Antivirus application software has been tested to be compatible with the test set. See the section on “3rd Party software verified by Keysight” on page 68 for anti-virus software that has been tested by Keysight. Having antivirus software installed may have a slight impact on the test set performance.

  • Page 89: System Maintenance

    Test Set Operating System System Maintenance System Maintenance Back-up It is recommended that you have a regular back-up strategy for all files which you create (these will be on the D: drive). Your IT department may already have a back-up strategy in place which is suitable for the test set and its data. The Windows operating system has a Backup utility that you can use to archive files and folders in case of a hard disk drive failure.

  • Page 90: Usb Connections

    — The E: partition is reserved for Keysight’s use. The primary use of the E: drive is for storing the Calibration and Alignment data. Do not change or overwrite the files on this drive.

  • Page 91: Hard Drive Recovery Process

    System Maintenance Hard Drive Recovery Process The Keysight Recovery System can be used to repair errors on the test set's C: drive partition, or to restore the original factory configuration of the system software. The Keysight Recovery System is stored in a separate hidden hard disk drive partition.
  • Page 92 C: drive. 4. Wait for the reboot After exiting the Keysight Recovery System, the test set reboots. If the original factory test “Turning set system has been restored, the test set re-executes the process described in on the test set the first time”...
  • Page 93 — You must have a USB keyboard and mouse. — You must be able to log in to the instrument as the administrator. — You must be able to transfer a large file (~.6 MByte) to the E7760B being updated.
  • Page 94 1. Connect a USB keyboard and mouse to the E7760B. 2. If the E7760B is not already running, power it up and allow it to boot up completely. 3. Close the E7760B measurement application if it is running. Right-click in the application window, and select elect Utility >...
  • Page 95 Access the file for the removable drive, then proceed to step 1. This installation may involve updating of FPGA devices within the E7760B. During the installation, DO NOT power off the E7760B for ANY reason! Interrupting the FPGA update process can place the instrument in an unusable state, requiring it to be returned to Keysight for repair.
  • Page 96 Test Set Operating System System Maintenance Step Notes 3. Wait while the previous version of the software is uninstalled. 4. Wait while the new During installation, you might see additional windows showing that FPGA changes are version of the being made. (However, not all software updates involve such changes.) software is installed.
  • Page 97 Test Set Operating System System Maintenance Step Notes 5. After installation is completed, a power shutdown is required. Click the Finish button when you are ready to reboot. 6. Reboot manually if If the instrument shuts down but does not reboot automatically, remove the USB storage necessary.
  • Page 98 Test Set Operating System System Maintenance Configuring recovery prompt timing You can configure the time at which the test set power-up process waits for the selection of the recovery process by performing the following steps: Step Notes 1. From the Windows This opens the System window.

  • Page 99: Using Microsoft Windows Operating System

    Keysight Wireless Test Set E7760B Wideband Transceiver Getting Started Guide 7 Using Microsoft Windows Operating System The capabilities described in this section are Microsoft Windows features. The following information provides some guidelines for using the capabilities with the test set, but you need to refer to the Windows help documentation for more information.

  • Page 100: Windows Shortcuts

    Using Microsoft Windows Operating System Windows Shortcuts Windows Shortcuts The following keyboard shortcuts can be used to perform windows tasks. To do the following: Press these keys: Display the Windows Start Menu Ctrl Cycle through all open applications Select the first menu of a menu bar Left Arrow Right Arrow Move through menu headings...

  • Page 101: Remote Desktop: Using The Test Set Remotely

    Using Microsoft Windows Operating System Remote Desktop: Using the Test Set Remotely Remote Desktop: Using the Test Set Remotely Windows Remote Desktop can be used for remote control of the test set. The Remote Desktop functionality is a Microsoft Windows capability. The following discussion provides some guidelines for using this capability with the test set.

  • Page 102: Setting Up The Remote Computer

    Client software. The following instructions relate to software provided by Microsoft Corporation. Keysight offers no warranty regarding the operation of such software. The procedure described here may be changed by Microsoft at some future time. Getting Started Guide...

  • Page 103: Finding The Computer Name Of The Test Set

    Finding the computer name of the test set To connect a remote computer to the test set, you need to know the test set’s Computer Name. On the E7760B Application, select System > System Information. A window opens which lists the Computer Name and other information about the test set.

  • Page 104: Setting Remote Desktop Options

    Using Microsoft Windows Operating System Remote Desktop: Using the Test Set Remotely Step Notes 2. Enter the computer name or IP address of the test set. 3. Click Connect. A login dialog box appears. 4. Enter the login The default account name is Instrument and the default password is measure4u, but account name and these parameters may be changed by instrument users.
  • Page 105 Using Microsoft Windows Operating System Remote Desktop: Using the Test Set Remotely Step Notes 3. Click the Display tab. Recommendations: do not select a size smaller than 1024 X 768, or a color depth of less Under Display than 15 bits. configuration, you may select the size of the window in which...
  • Page 106 Using Microsoft Windows Operating System Remote Desktop: Using the Test Set Remotely Step Notes 5. Click the Experience To Optimize the performance of the Remote Desktop session, choose the appropriate tab. connection format from the drop-down list. Getting Started Guide...

  • Page 107: Ending A Remote Desktop Session

    Using Microsoft Windows Operating System Remote Desktop: Using the Test Set Remotely Ending a Remote Desktop session There are two ways to disconnect the remote computer from the test set to end the session: Step Notes 1. Click the X, then click For full-screen, the X appears at the top center of the window.

  • Page 108: Windows Taskbar Auto-Hide Feature

    Using Microsoft Windows Operating System Windows Taskbar Auto-Hide Feature Windows Taskbar Auto-Hide Feature The Windows taskbar should always be in the auto-hide mode when using the test set application. If the taskbar is not set to auto-hide, the lower part of the test set display is obscured by the taskbar.

  • Page 109: Troubleshooting

    Keysight Wireless Test Set E7760B Wideband Transceiver Getting Started Guide 8 Troubleshooting The following topics can be found in this section: “Identifying Problems” on page 110 “Returning Your Test Set for Service” on page 112...

  • Page 110: Where To Get Technical Help

    No operator serviceable parts inside. Refer servicing to qualified personnel. To prevent electrical shock do not remove covers. 1. If the E7760B appears to be in a faulty state, reboot the instrument (restart the Windows operating system). 2. A source of valuable information is the Event Viewer, which can be opened from the Windows Start menu (enter the name Event Viewer in the search field to locate this utility).
  • Page 111 Troubleshooting Identifying Problems Figure 8-1 Event Viewer window Getting Started Guide...

  • Page 112: Returning Your Test Set For Service

    Returning Your Test Set for Service Calling Keysight Technologies Keysight Technologies has offices around the world to provide you with complete support for your wireless test set. To obtain servicing information, or to order replacement parts, contact the nearest Keysight Technologies office listed under “Locations for Keysight Technologies”...

  • Page 113: Locations For Keysight Technologies

    Troubleshooting Returning Your Test Set for Service Locations for Keysight Technologies For online assistance: http://www.keysight.com/find/assist To contact Keysight Technologies: http://www.keysight.com/find/contactus Alternately, contact the nearest Keysight sales office: Americas Canada Brazil Mexico (877) 894 4414 55 11 3351 7010 001 800 254 2440...
  • Page 114 This information is subject to change without notice. © Keysight Technologies 2018-2019 Edition 1, January 2019 E7760-90020 www.keysight.com...
