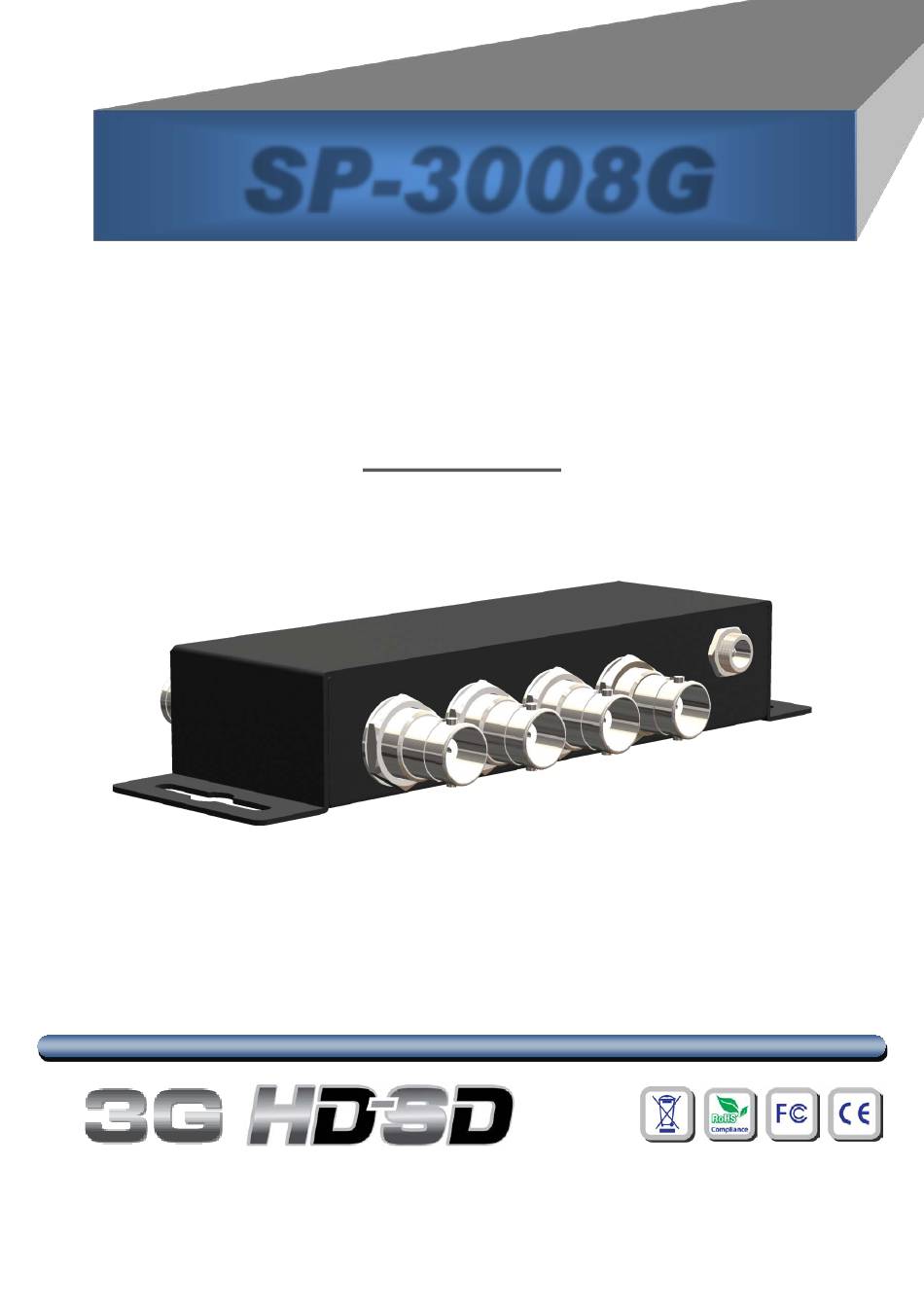

- Page 1 SP-3008G 1x8 3G/HD/SD-SDI Distribution Amplifier with Reclocking User Manual rev: 180730 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the SP-3008G should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION The SP-3008G receives one SDI input, perfectly duplicates it, and re-transmits eight SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI, HD-SDI, or 3G-SDI video source to eight SDI compliant displays at the same time. Besides, built-in re-clocking & equalization features provide the best performance for SDI distribution amplifier. -
Page 4: Specifications
SPECIFICATIONS Model Name SP-3008G Technical SDI standards SD/HD/3G-SDI Auto 3G/HD/SD detection Supported protocols SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE425M Video bandwidth [2.97Gpbs & 2.97/1.001Gbps] Data rates 270 / 1483 / 1485 / 2970 Mbps Output impedance 75Ω Reclocking function... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Front Panel 3G/HD/SD-SDI Output 3G/HD/SD-SDI Output 3G/HD/SD-SDI Output 3G/HD/SD-SDI Output 5V DC power jack Rear Panel Power LED indicator 3G/HD/SD-SDI Input 3G Signal LED indicator HD Signal LED indicator SD Signal LED indicator 3G/HD/SD-SDI Output 3G/HD/SD-SDI Output 3G/HD/SD-SDI Output 3G/HD/SD-SDI Output... -
Page 6: Hardware Installation
HARDWARE INSTALLATION 1. Connect a camera or other devices equipped with 3G/HD/SD-SDI outputs to SP-3008G 3G/HD/SD-SDI input. 2. Connect devices equipped with 3G/HD/SD-SDI inputs (e.g. monitors or video processors) to SP-3008G 3G/HD/SD-SDI outputs. 3. Plug power adapter cable into 5V DC power jack. - Page 7 The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the SP-3008G features and specifications is subject to change without further notice.
-
Page 8: Signal Measurement
SIGNAL MEASUREMENT...
