Project 32: Mos tube driving motor

Introduction
In this experiment, we use P-type MOS tube as a switch to control the rotation of the motor. When
D3 is input with high level voltage, MOS tube DS is conducted, motor begins to rotate; When D3
is input with low level voltage, MOS tube DS is disconnected, motor stops running.
Hardware required
P MOS *1
9V battery *1
1 KΩresistor *1
Motor *1
Bread board *1
Bread board jumper wires *several

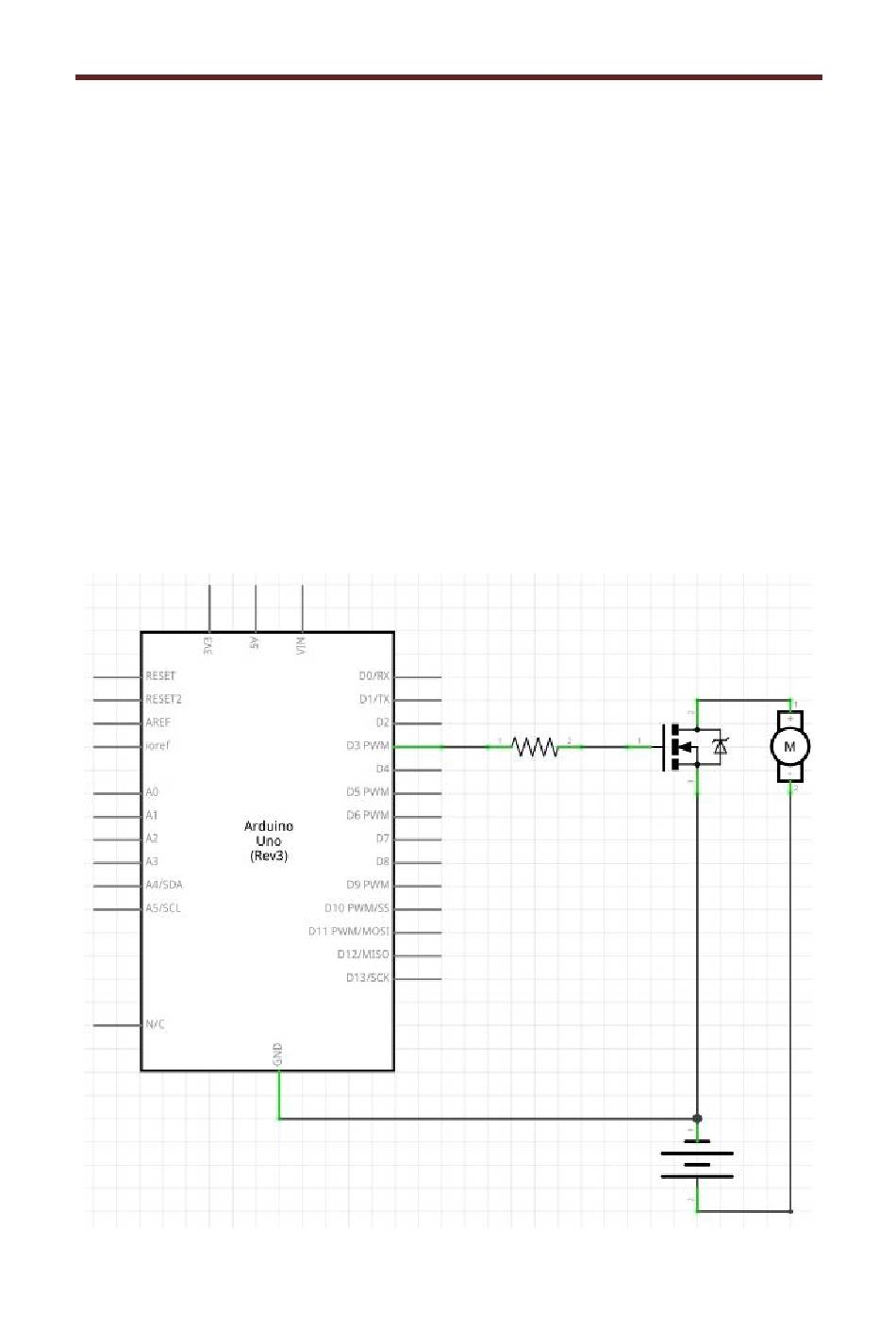

Schematic diagram
