keyestudio
I/O port to control 8 LEDs!
Hardware required
74HC595 chip*1
Red M5 LED*4
Green M5 LED*4
220Ω resistor*8
Breadboard*1
Breadboard jumper wires
Note: for pin 13 OE port of 74HC595, it needs to be connected to GND

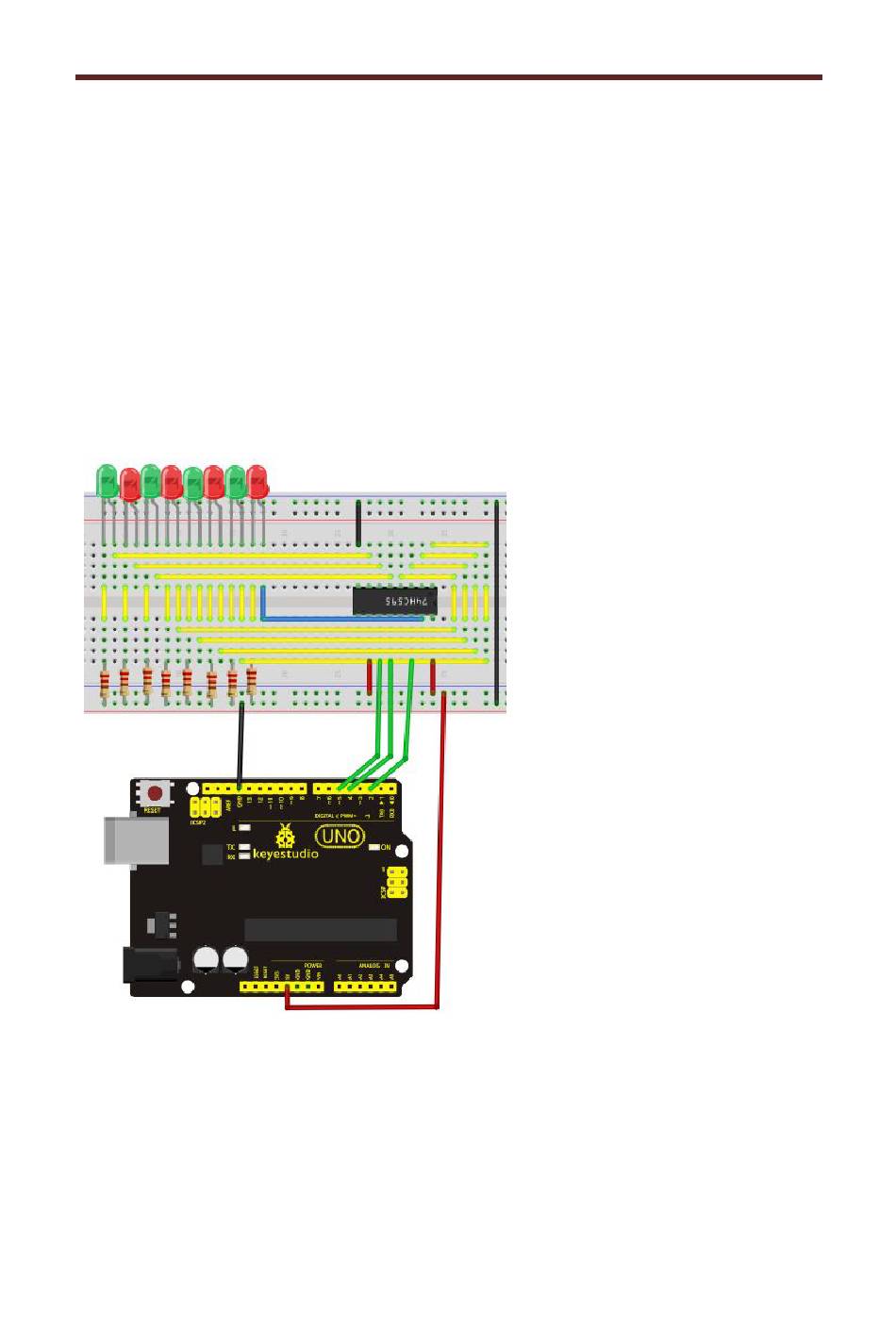

Circuit connection
Connection for R3:
Connection for 2560 R3:
www.keyestudio.cc
98
