Nav TV OPI-A Quick Start Manual

Adds iPod integration to factory radio for the 2005 and Up in the Q-7, A-8, A-6 (including RS6 & S6), and
What's in the box
1. OPI-A Interface module
2. Interface power cable
3. iPod cable
4. Optical cable
5. Optical Bypass (for extending optical cable if
needed)
6. USB cable (h ave the "A" connector side of the
cable accessible to the passenger side of the
vehicle cabin, but hidden from view).

Installation

1. Open glove box and using European keys remove
the CD changer in the glove box.
2. Disconnect all wiring harness from CD changer.
Note: The factory CD changer must be
disconnected. The OPI-A emulates a CD changer.
3. Connect fiber optic cables to the interface and
connect the yellow wire from the Molex connector
to constant +12volts and the black wire to vehicle
ground. Plug in Molex connector into interface.
Note: use the factory CD changer harness for
tapping power and ground.
4. Connect the iPod cable to the interface.
5. Connect the USB cable to the interface.
Note: After plugging in the iPod to the iPod cable,
secure the iPod in some fashion to keep it from being
damaged.
1 | P a g e
OPI-A
2009 A-4 (RS & S)
European radio removal keys.
OPI-A 2-3-2009
Rev 1.1 Mark Ryan
TH
100 NW 11 Street, Boca Raton, FL 33432
Tel. 561-955-9770 Fax. 561-955-9760
www.nav-tv.com info@nav-tv.com

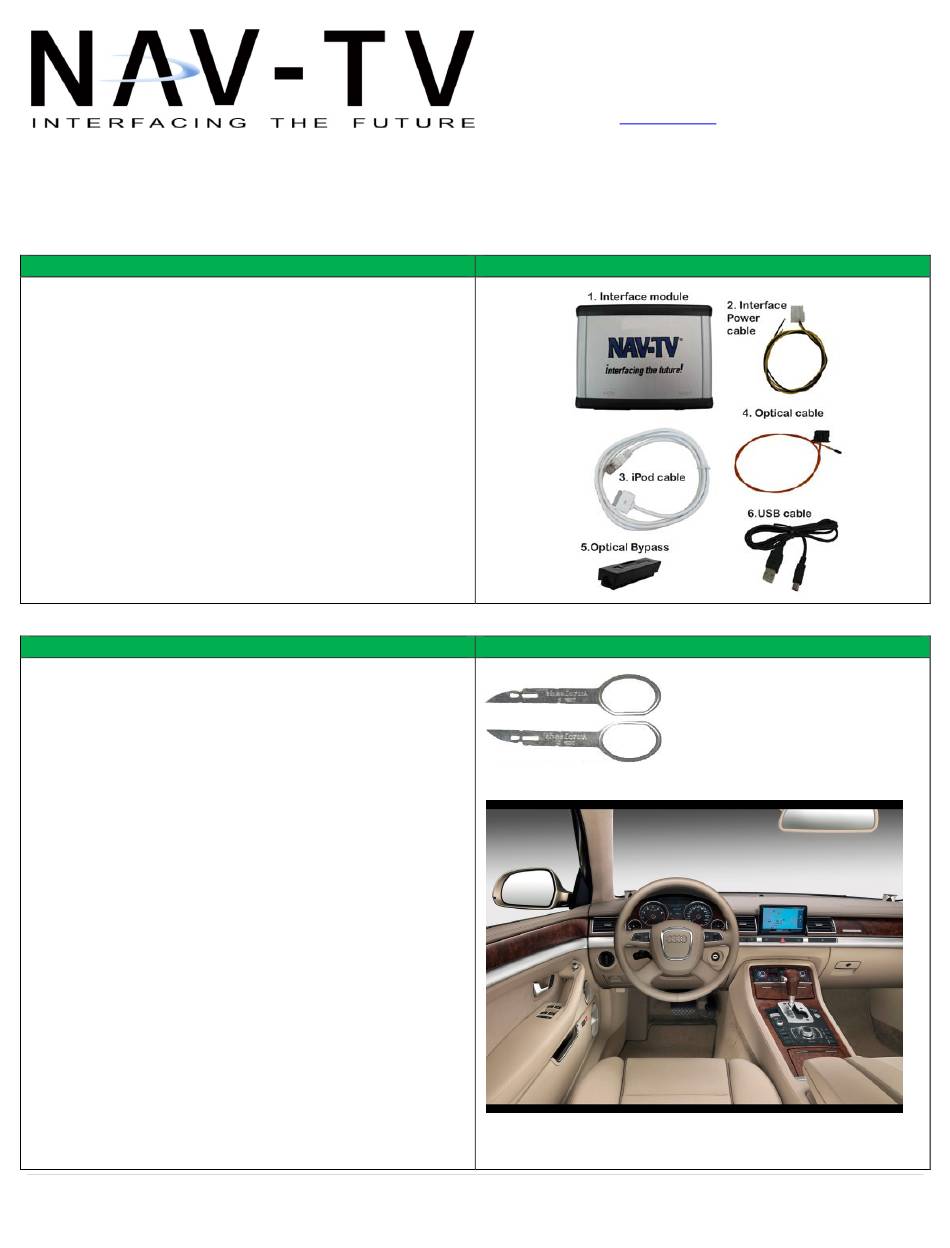

Package Contents
Tool Image
