The AUDI-DYN INT Kit interfaces a backup camera (with dynamic guidelines) and one additional
video input (front cam, etc) to the factory media screen in select Audi vehicles with the Concert
media system (MMi controls on vertical radio face, not console).
Input
IR-Eye
Toggle
Cable
Switch
Optional video expansion board,
cable & harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
AUDI DYNAMIC-INT
NTV-KIT700
Overview

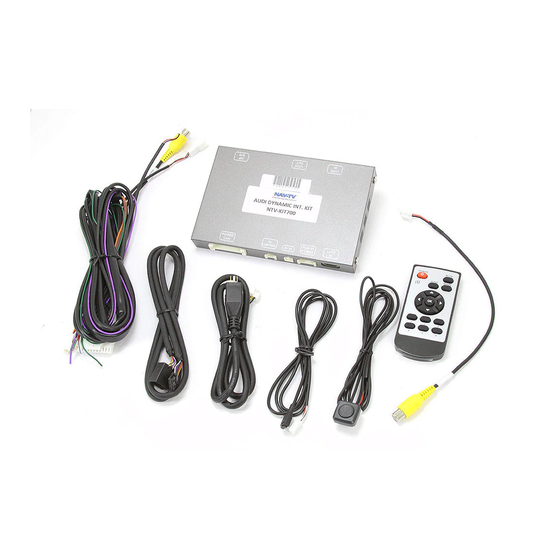

Kit Contents
AUDI-DYN INT Interface
info@nav-tv.com
VIDEO Input RCA
Power/CAN Harness
OSD Menu
Remote
BHM
09/02/15
NTV-DOC242
LVDS-IN Cable
LVDS-OUT Cable
1 |
P a g e

Advertisement

loading
Need help?

Need help?

Do you have a question about the AUDI DYNAMIC-INT and is the answer not in the manual?

Questions and answers

Related Manuals for Nav TV AUDI DYNAMIC-INT

Summary of Contents for Nav TV AUDI DYNAMIC-INT

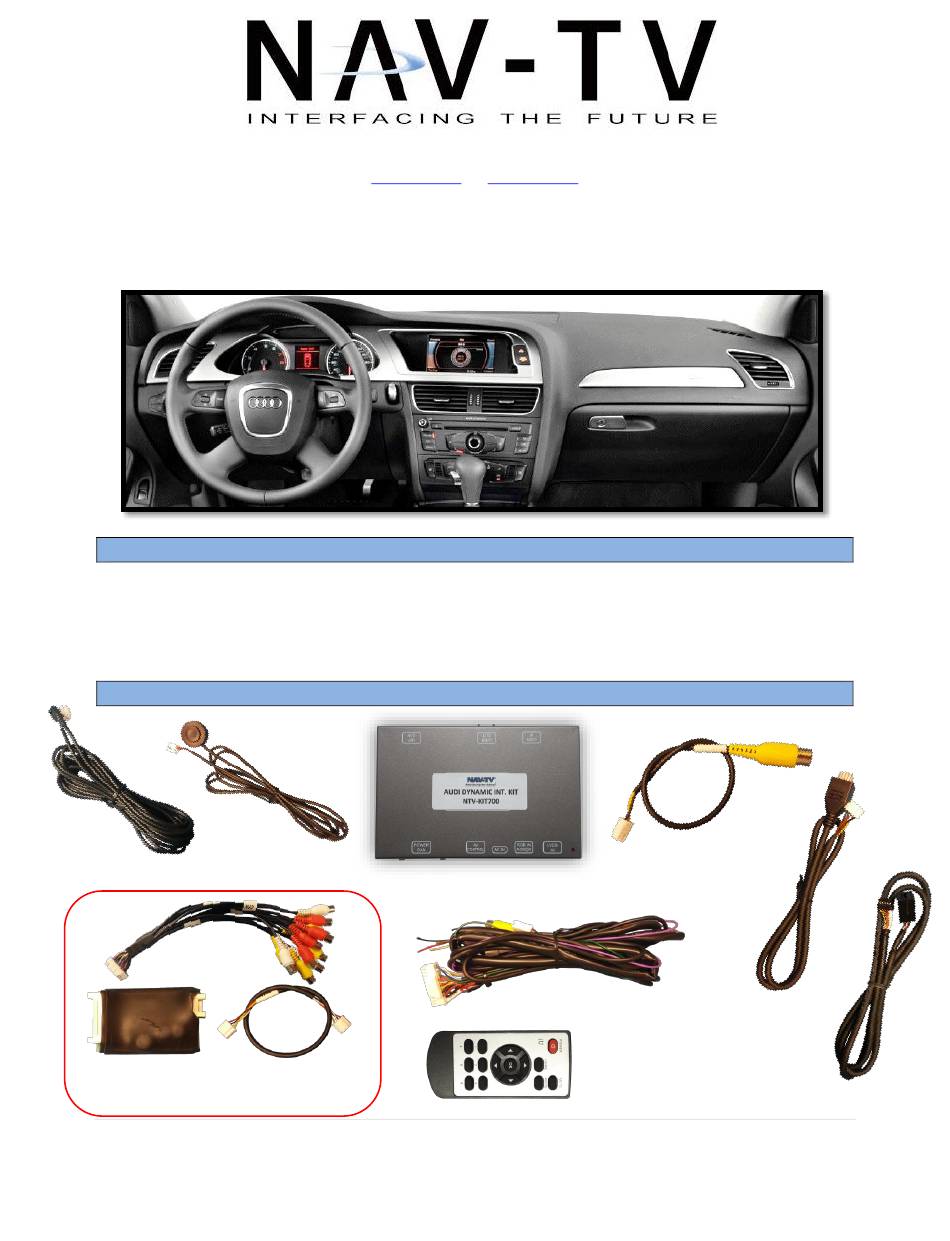

  • Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com AUDI DYNAMIC-INT NTV-KIT700 Overview The AUDI-DYN INT Kit interfaces a backup camera (with dynamic guidelines) and one additional video input (front cam, etc) to the factory media screen in select Audi vehicles with the Concert media system (MMi controls on vertical radio face, not console).
  • Page 2 09/02/15 NTV-DOC242 Interface Connectors LVDS (not used) Power/CAN Not Used RGB IN OUOUT OUOUT LVDS-IN LVDS-OUT Not Used Dip Switches Dip Switch Settings Dip SW: Skips Skips Skips RVC OFF N.C. N.C. N.C. N.C. HIGH Keep Down DOWN Enables Enables Enables RVC ON N.C.
  • Page 3 09/02/15 NTV-DOC242 AUDI-DYN-INT Installation ATTENTION INSTALLER: All connections (including CAN) must be made BEFORE connecting the power harness to this unit for proper startup operation. 1. Remove the factory screen. This requires removing the plastic screen bezel and then (4x) Torx T20 screws. Disconnect the 10-pin harness from the screen and set the screen aside.

  • Page 4: Can Gateway

    09/02/15 NTV-DOC242 7. Grab the provided Power/CAN Harness from the AUDI-DYN- INT kit. Use the chart below to locate and solder (splice, don’t cut) the following wires to the car (you may have to extend a pair of CAN wires for some vehicles): Vehicle Interface wires Connect to AUDI Wire:...
  • Page 5 09/02/15 NTV-DOC242 *NOTE: For Q5 (only), splice all 4 CAN wires in one location: at the steering wheel harness (near column cover - drop under-dash). The colors will be the same (from chart on page 4) Steering Column 8. Install your reverse camera and run signal, power and ground wires up front to the AUDI interface from step 7.
  • Page 6 09/02/15 NTV-DOC242 Installation Diagram *This module only integrates video input, not audio. Audio is only pass through (to outputs) if supplied. Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product.
  • Page 7 09/02/15 NTV-DOC242 Menu Adjustments Before you start: 1. The IR-Eye must be connected, the AV toggle switch must be connected (main harness) 2. Make sure the car’s ignition is on and radio is on Return 3. You must be in Reverse Camera mode AUX Video mode.
  • Page 8 09/02/15 NTV-DOC242 AUDI DYN-INT Operation  Once all connections have been properly made, placing the vehicle in reverse will show the connected rear camera image with Dynamic Guidelines which correspond with the steering wheel geometry.  If a front camera was added and Automatic front-camera switching was turned on, whenever the vehicle leaves reverse (after showing reverse image once) the connected front camera will display for the user-set amount of time (5, 7, 9 or 11 seconds).
  • Page 9 09/02/15 NTV-DOC242 FAQs Q. The unit will not power on, I have no indication of proper operation. A. This module will not power on properly or display anything (reverse image or AUX video IN) until CAN is properly connected. Q. All I see on the display is a black screen (no factory image pass-through). A.
