JR, BM
05/17/2016
NTV-DOC105
th
120 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
SRX VIM
(NTV-Kit394)
Overview
The SRX VIM enables video in motion (VIM), navigation control in motion (CIM) and forced rear camera
capability to the 2010+ Cadillac SRX vehicles. When VIM is enabled, GPS tracking will not be available.

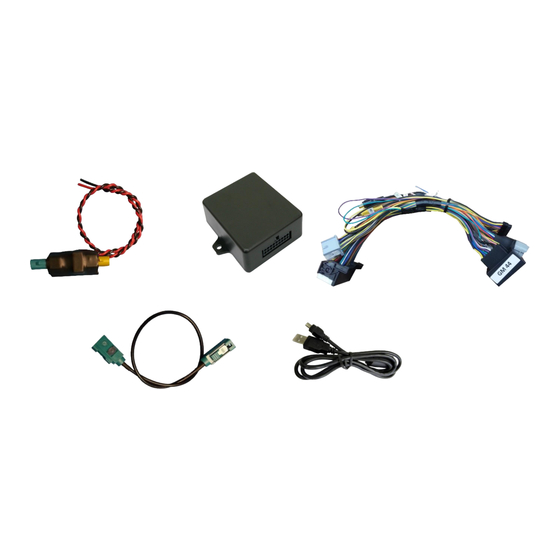

Kit Contents
SRX VIM Module
GPS-Break Relay
Plug and Play T-Harness
NTV-ASY192
NTV-ASY165
NTV-HAR-185
USB Cable
GPS FAKRA Cable
NTV-CAB009
NTV-CAB037
1 |
P a g e
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
Advertisement
Table of Contents
Related Manuals for Nav TV SRX VIM
Summary of Contents for Nav TV SRX VIM
- Page 1 SRX VIM (NTV-Kit394) Overview The SRX VIM enables video in motion (VIM), navigation control in motion (CIM) and forced rear camera capability to the 2010+ Cadillac SRX vehicles. When VIM is enabled, GPS tracking will not be available. Kit Contents...
- Page 2 JR, BM 05/17/2016 NTV-DOC105 SRX VIM Module pin outs Pin # Description Color 12v (+) Constant Yellow INPUT 1 (Send 12v for VIM act) GM LAN (Radio side) Green Ground (-) Black Reverse OUT White/Red OUTPUT A (GPS Break) White/Blue...
- Page 3 3. Connect the red wire from the GPS-Break board to the white/blue, OUTPUT (A) wire from the 18-pin SRX VIM module harness. Splice the black wire from the GPS-Break board to ground. 4. On the provided main 44-pin T-Harness, the RCA labeled ‘Rear Cam’...
- Page 4 JR, BM 05/17/2016 NTV-DOC105 -End User Quick Reference- Operation VIM/CIM toggle: Press and hold the PHONE/VOICE button on the steering wheel for 3 seconds. Forced Rear Camera toggle: Press the MUTE button on the steering wheel twice within 1 second. Hold (3 secs): Enable VIM/CIM...
