Ezairo® 7111 Pre Suite Getting Started Guide
1. I
NTRODUCTION
Ezairo 7111 Pre Suite is a comprehensive turnkey solution for hearing aids. Using the various tools described in
this document, Ezairo 7111 Pre Suite greatly simplifies the development of hearing-aid products. This document
provides a guide for getting started with Ezairo 7111 Pre Suite, illustrating interaction of the system components and
required tools.
2. P
O
RODUCT
VERVIEW
Ezairo 7111 Pre Suite is comprised of the Ezairo 7111 hybrid module and the Ezairo 7111 Firmware Bundle. The
product is configured using Sound Designer Software, the Ezairo 7111 Hybrid Demonstrator Board, and a
programming box that provides PC-to-device communications. The following sections provide a brief overview of
each component. Figure 1 illustrates a typical evaluation and development setup.

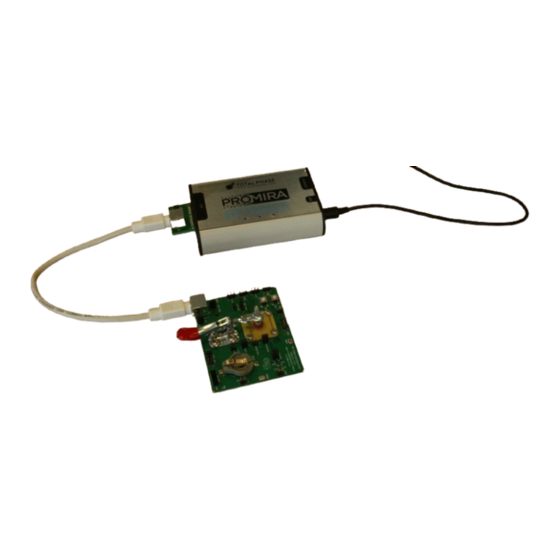

Figure 1. Typical Evaluation and Development Setup
2.1 Ezairo 7111 Hybrid Module
Ezairo 7111 is an open-programmable DSP-based hybrid module specifically designed for high-performance
hearing aids. The Ezairo 7111 hybrid is comprised of: the Ezairo 7100 System-on-Chip (SoC) audiology processor;
EA2M, a 2 Mb EEPROM; and all necessary passive components for operating the sub-system and interfacing with
hearing aid transducers.
A hearing-aid connection diagram using the Ezairo 7111 hybrid and the Pre Suite firmware is shown in Figure 2
on page 2.
ON Semiconductor Confidential
www.onsemi.com
1
D
N
M-20868-001
OCUMENT
UMBER
