SDHQ 53-1103-G3 Install Instructions

Under bed arb compressor mount for toyota tundra
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

SDHQ-53-1103-G3
Product:
'07-'20 Tundra under Bed ARB Compressor
Description:
Mount
(1) SDHQ ARB Air Compressor Mount
(1) Hardware Package
(4) M6 - 1.0 x 20mm S.S. Hex Head Screws
(4) ¼" S.S. SAE Washers
(2) 3/8" – 16 x 1 ½" S.S. Hex Head Screws
(4) 3/8" S.S. SAE Washers
(2) 3/8" – 16 S.S. Lock Nuts
(2) Aluminum Spacers
Inspected and Packaged by:
For questions or help with the installation, please call SDHQ Offroad @ 480-633-2929
Mon.–Fri. 8:00am–5:30pm and Sat. 8:00am–3:30pm Arizona Time. www.sdhqoffroad.com
Latest Revision: 10/31/2019

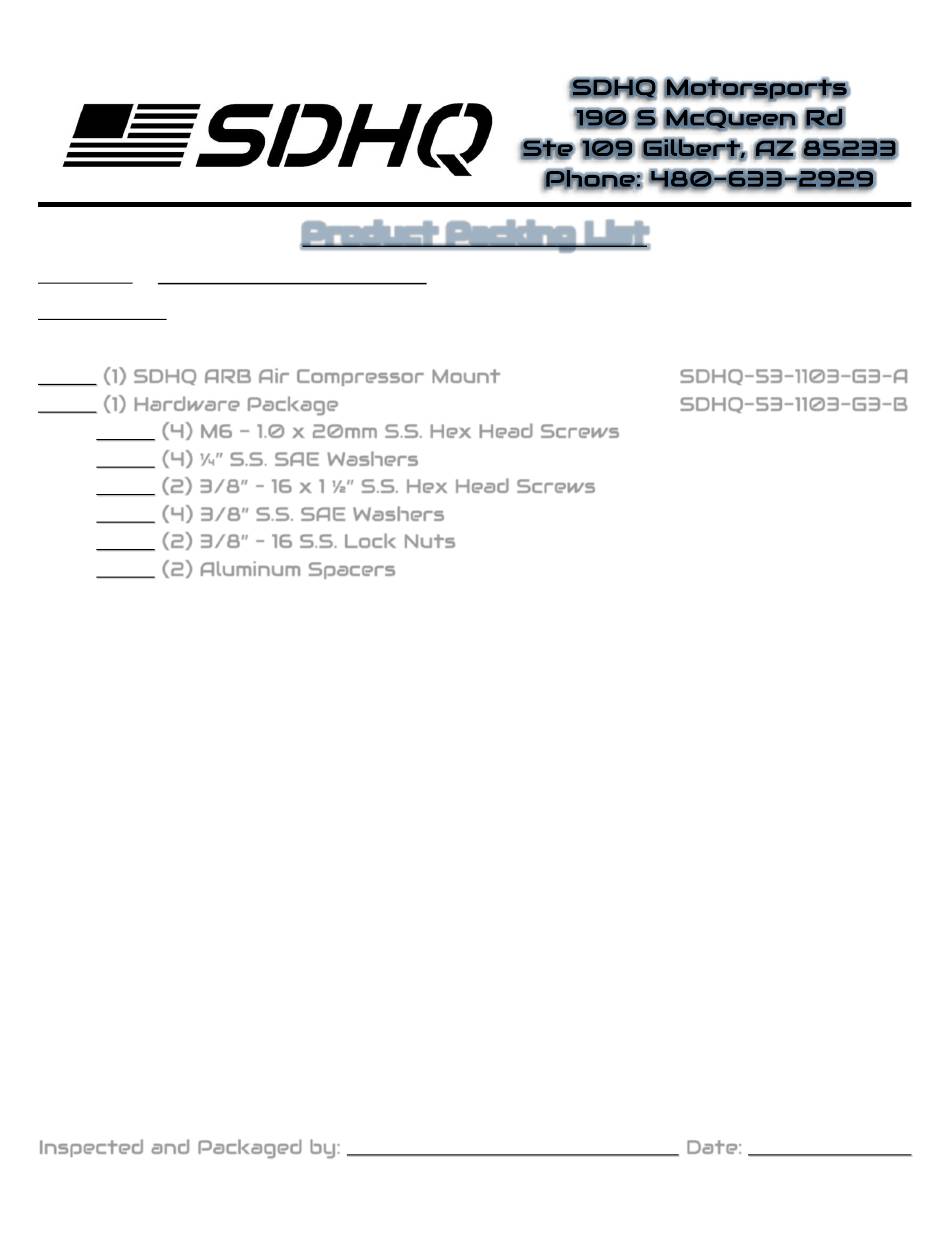

Product Packing List

Page 1 of 5
