SDHQ-55-1541-G3
Product:
2016+ Tacoma Long Bed Rock Sliders
Description:
(1) Driver Side Slider
(1) Passenger Side Slider
(2) Front Inner Double Brackets
(1) Gas Tank Upper Bracket
(7) Upper Brackets
(6) Lower Brackets
(2) Front Inner Single Brackets
(1) Hardware Package
(12) 3/8" – 16 x 1 ¼" Grade 8 Bolts
(12) 3/8" Grade 8 Flat Washers
(12) 3/8" Grade 8 Lock Washers
(16) 7/16" – 14 x 1 ¼" Grade 8 Bolts
(18) 7/16" Grade 8 Flat Washers
(14) 7/16" Grade 8 Lock Washers
(2) 7/16" – 14 Locknuts
(2) M10 – 1.25 x 25mm Grade 8 Flange Hex Head Bolt
(1) Loctite Packet
Inspected and Packaged By:
For questions or help with the installation, please call SDHQ Offroad @ 480-633-2929
Mon.–Fri. 8:00am–5:30pm and Sat. 8:00am–3:30pm Arizona Time. www.sdhqoffroad.com
Latest Revision: 11/9/2019

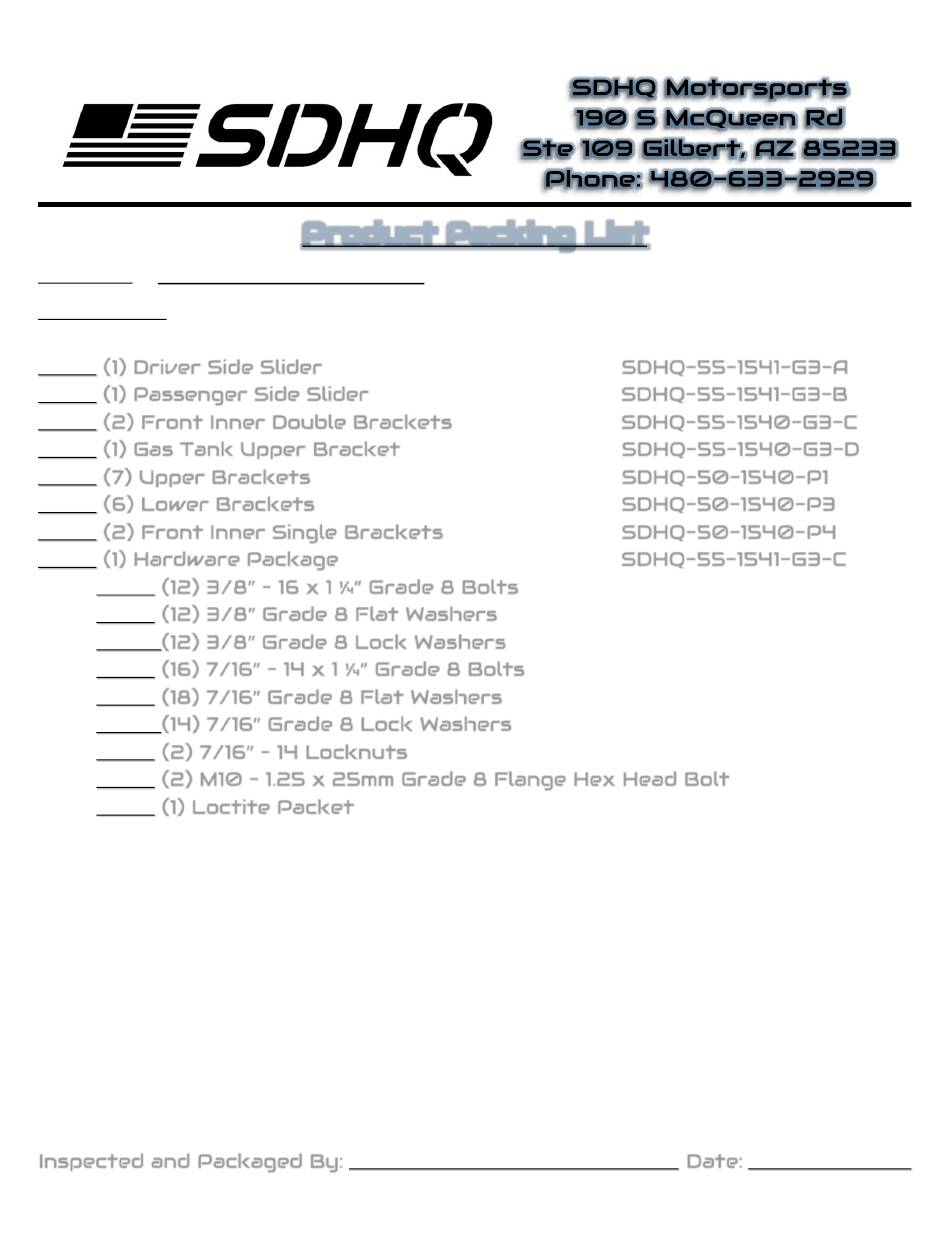

Product Packing List
Page 1 of 8
SDHQ-55-1541-G3-A
