SANUS VuePoint F55c Instruction Manual page 9

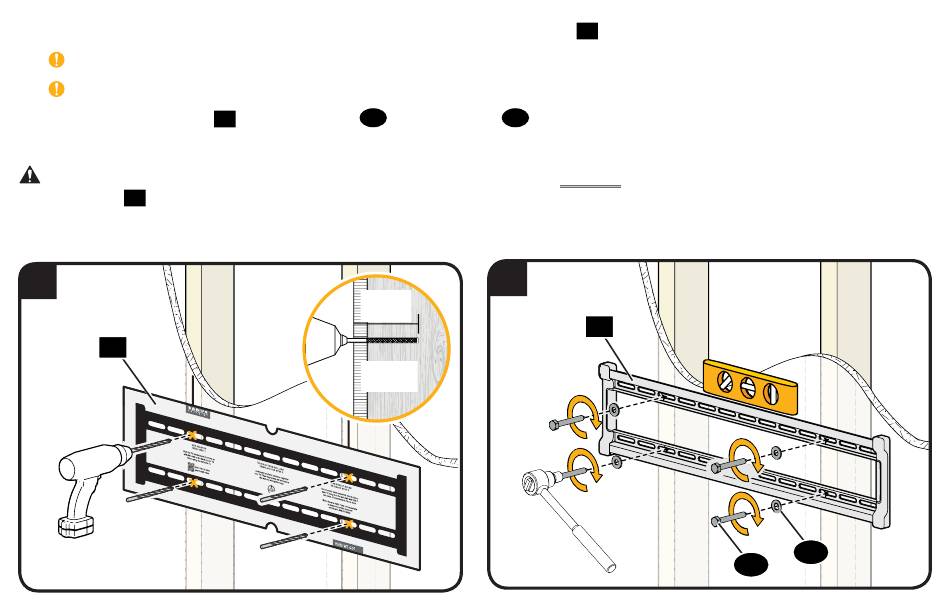

3. Drill pilot holes using a 7/32 in. (5 mm) diameter drill bit. Remove wall plate template
IMPORTANT: Be sure to drill into the center of the studs.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
4. Install wall plate assembly
wall plate.
CAUTION:
Avoid potential personal injury or property damage! All four lag bolts MUST BE firmly tightened to prevent unwanted movement
of the wall plate . Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
15
3
14
using four lag bolts and four washers
16
15
3 in.
(75 mm)
7/32 in.
(5 mm)
.
14
. Tighten the lag bolts only until they are pulled firmly against the
17
4
15
17
17
16
