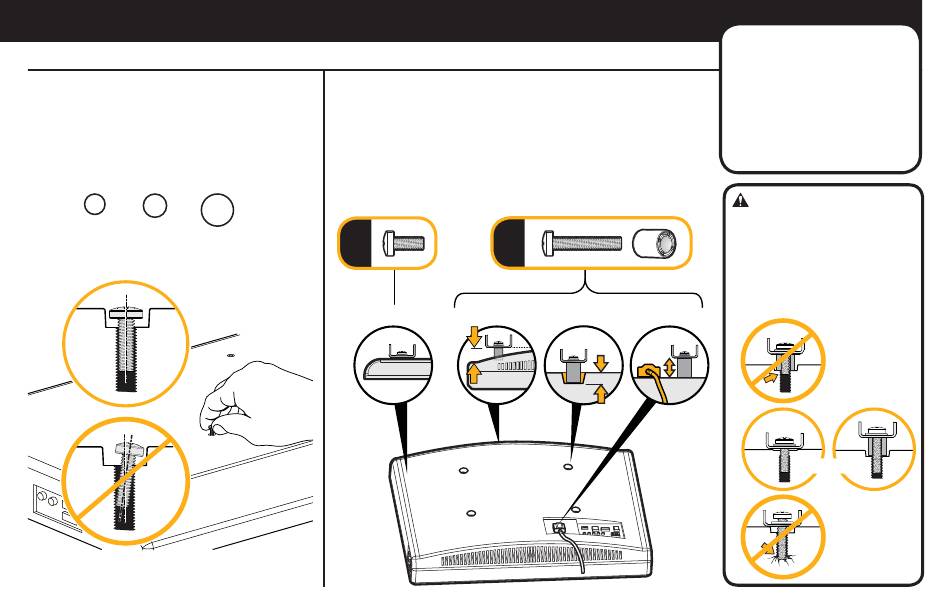

STEP 1 Attach Brackets to TV

1-1 Select TV Screw Diameter
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M5,
M6, or
M5
M6
6
1-2 Select TV Screw Length
If your TV has a flat back AND you want your TV closer to
the wall, use the shorter screws (a).
M8) to use.
Use the spacers and longer screws (b) to accommodate:
● Round/irregular back TVs
● TVs with inset mounting holes
M8
● Extra space needed for cables
a
FLAT BACK
b
ROUND BACK
INSET HOLES
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection,
contact Customer Service
at 1-888-333-9952.
CAUTION:
Verify adequate thread
engagement with the screw or
screw/spacer combination.
-
Too short will not hold the TV.
-
Too long will damage the TV.
CABLES
Correct
Too Short
Too Long
