OWNER'S MANUAL
IMPORTANT: READ OWNER'S MANUAL CAREFULLY
MODEL
Ultron 18BA
8050905
REV.01(07-2018)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultron 18BA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triple S Ultron 18BA

Summary of Contents for Triple S Ultron 18BA

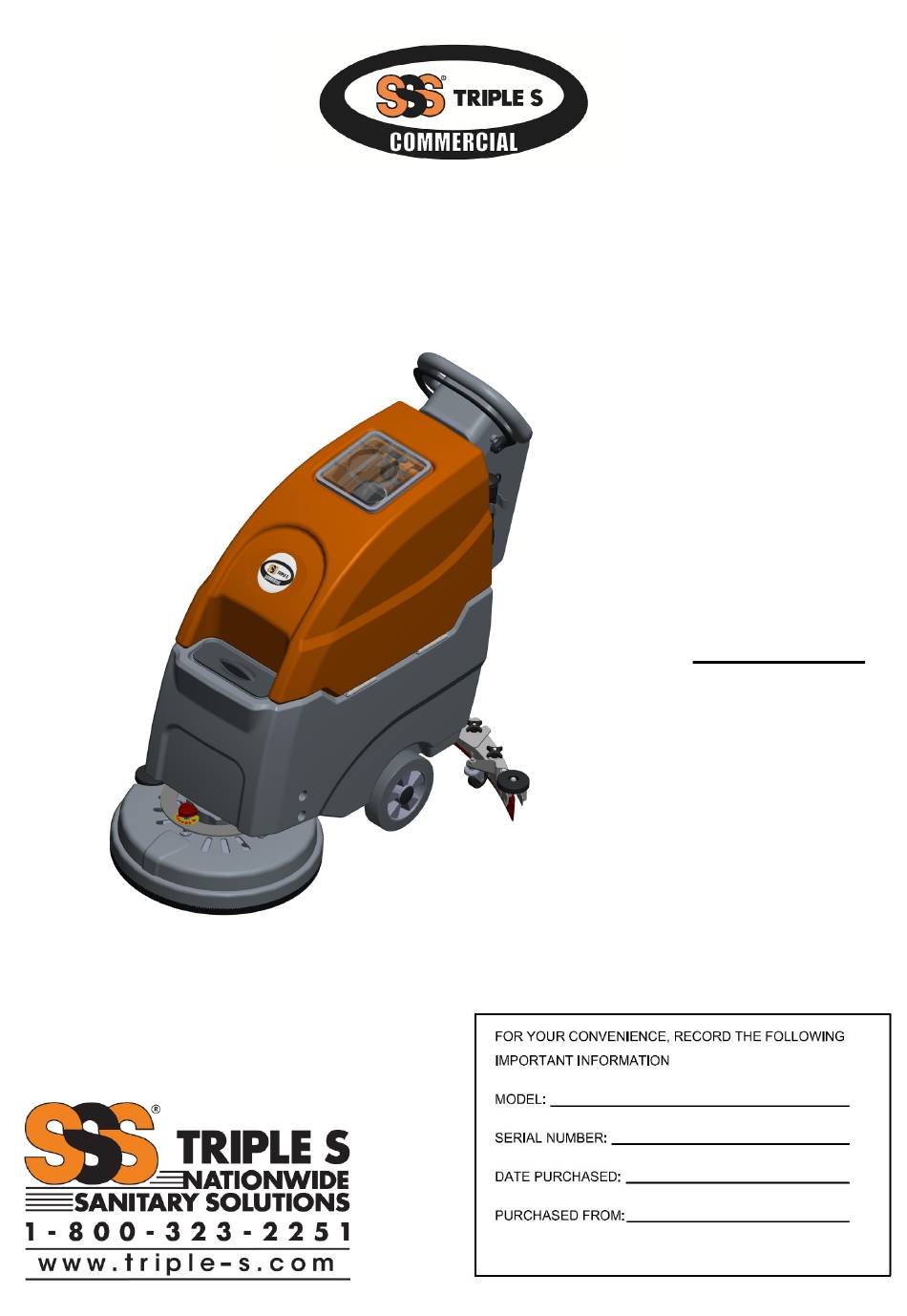

  • Page 1 OWNER'S MANUAL IMPORTANT: READ OWNER'S MANUAL CAREFULLY MODEL Ultron 18BA 8050905 REV.01(07-2018)
  • Page 2 OPERATOR MANUAL Read opeRatoR manual caRefully! HOW TO ORDER PARTS Please contact your local Triple S distributor, www.triple-s.com. Having the following information available will be helpful: • Machine model name • Serial number from serial plate • Part # and quantity (do not order by page number)

  • Page 3: Table Of Contents

    OPERATOR MANUAL TABLE OF CONTENTS SAFETY PRECAUTIONS......................4 MACHINE COMPONENTS....................5 MACHINE SETUP & INSTALLATION..................6 MACHINE OPERATION....................7 TANK DRAINING........................8 BATTERY CHARGING......................8 PREVENTATIVE MAINTENANCE..................9 BASIC TROUBLESHOOTING....................10 TECHNICAL SPECIFICATIONS..................11 PARTS LIST........................12-26 WEARABLE PARTS....................27 WIRING DIAGRAM.....................28 SSS Ultron 18BA...

  • Page 4: Safety Precautions

    - Read operators manual thoroughly prior to WaRInG: Repairs are to be completed 　 operating or servicing this machine. by a triple S dealer. any repairs completed by - Use manufacturer supplied or approved 　 unauthorized persons will avoid the warranty.

  • Page 5: Machine Components

    15. Rear parking wheel 16. 8-inch wheels 17. Control trigger 18. Recovery tank support stand 19. Vacuum motor 20. Batteries 21. Solution tank fill-port 22. Pressure adjusting handle 23. Scrub head 24. Splash Guard 25. Motor hub lock pin SSS Ultron 18BA...

  • Page 6: Machine Setup & Installation

    Make sure the knobs are completely seated into the slots before securing knobs. 3. Connect the vacuum hose to the squeegee assembly. Loop the hose by using the hose clip provided. 4. Check the squeegee blades for proper adjustment. SSS Ultron 18BA...

  • Page 7: Machine Operation

    Only use recommended 4. Pour a recommended defoamer into the recovery tank if excessive foam appears. cleaning chemicals. contact your triple S dealer for recommendations on proper WaRnInG: do not allow foam to enter chemicals.

  • Page 8: Tank Draining

    4. After rinsing out the tank, securely reconnect the tank level hose to the hose fitting, replace the filter assembly cover and be sure the filter screen and the "O" ring is in the correct position. SSS Ultron 18BA...

  • Page 9: Preventative Maintenance

    6. If storing in an area which may reach freezing temperatures, be sure to drain all fluids from the motoR maIntenance machine prior to storage. Any damage caused 1. Contact your Triple S Dealer for any motor by freezing temperatures will not be covered by maintenance. the warranty.

  • Page 10: Basic Troubleshooting

    Brush motor will not operate Bad brush motor solenoid Replace brush motor solenoid Faulty brush motor or wiring Contact Triple S Dealer Worn motor carbon brushes Contact Triple S Dealer Bad vacuum motor switch Replace vacuum motor switch Bad vacuum motor relay...

  • Page 11: Technical Specifications

    Weight with batteries 265 lbs / 120 Kg Decibel rating at operator's ear, indoors 68dB(A) Grade level, max 5% (3°) 43.4 × 20.5 × 42.5 in Dimensions L × W × H / 1152 × 520 × 1080mm SSS Ultron 18BA...

  • Page 12: Parts List

    PARTS LIST RECOVERY TANK GROUP SSS Ultron 18BA...
  • Page 13 1421824 FLAT WASHER M8×DIA24×2.0 8111007 RECOVERY TANK SUPPORT 8115404 SLEEVE, P/M 1021830 HEX HEAD BOLT M8×30 8111015 FLOAT, SHUT-OFF 1321210 SCREW, SELF-TAPPING, ST4×10 2320220 ELBOW 1421409 FLAT WASHER M4×DIA9×0.8 2320217 RUBBER HINGE 2320218 GASKET 2320216 COVER, CLEAR SSS Ultron 18BA...
  • Page 14 PARTS LIST SOLUTION TANK GROUP SSS Ultron 18BA...
  • Page 15 FLAT WASHER M12×DIA32×2.0 1021230 HEX BOLT, M12×30 1021616 HEX BOLT, M6×16 1422616 LOCK WASHER, M6 8037020 BRACKET, SQUEEGEE 8119007 ELBOW, G1/2 8119005 BALL VALVE, G1/2 1021830 HEX BOLT, M8×30 8013016 2 INCH CASTER 8034012 BRACKET, CASTER 1962025 CLAMP, 16-25MM SSS Ultron 18BA...
  • Page 16 BATTERY, DISCOVER EV24A-A OR TROJAN 24TMX 8114751 JACKET, BATTERY TERMINAL, BLACK 8050476 BATTERY CONNECT CABLE, RED 8050475 BATTERY CONNECT CABLE, BLACK 1321310 SCREW, SELF-TAPPING, ST4.8×9.5 8050153 CHAIN 8050156 LID, SOLUTION TANK FILL PORT 8050150-BK LID, KIT 8050152 SEAL 6210107 FILTER 8013002 BRACKET SSS Ultron 18BA...
  • Page 17 PARTS LIST CONTROL CONSOLE GROUP SSS Ultron 18BA...
  • Page 18 LOCK NUT M6 8134501 BRACKET 1021512 HEX HEAD BOLT M5×12,SS 1421515 FLAT WASHER M5×DIA15×1.0 1421132 FLAT WASHER M12×DIA32×1.5 1121605 HEX NUT M6 8134081 SLEEVE 8134080 SQUEEGEE LIFTING HANDLE 8113104 BALL KNOB M8 1021840 HEX HEAD BOLT M8×40, SS SSS Ultron 18BA...
  • Page 19 1123305 LOCK NUT M3 8014062 BRACKET, REAR PANEL 8114707 RELAY 8014035 SPRING 8014034 BRACKET, SPRING 8210421 RELAY 1534608 SET SCREW M6×8 8024022 TRIGGER 8014031 BUSHING, HEX 8014032 SPRING ROD 8014033 PLATE 1422411 LOCK WASHER, M4 8114101 SHAFT SSS Ultron 18BA...
  • Page 20 PARTS LIST SCRUB HEAD GROUP SSS Ultron 18BA...
  • Page 21 COTTER PIN 2×40 8015060 INLET 1221510 PAN HEAD SCREW M5×10 1221512 PAN HEAD SCREW M5×12 1421510 FLAT WASHER M5×DIA10×1.0 8116002 PLATE, BRUSH CLAMP 8116003 SPRING CLIP 8116008 HUB, DRIVE, 3-LUG 8116010 FLAT WASHER DIA8.5×DIA25.4×4.5 1422821 LOCK WASHER, M8 SSS Ultron 18BA...
  • Page 22 LOCK NUT, M8 RING, DIA 5 1439005 8015105 HOUSING, BEARING 8015104 JOINT BEARING 1111008 HEX NUT, M10 8015106 DECAL 8015020 HANDLE, ADJUSTING 1511065 SOCKET BOLT M10×65 8015115 NYLON WASHER, DIA10.5×DIA30×2.5 8015002 BRACKET 8015121 SPACER 1113012 LOCK NUT M10 SSS Ultron 18BA...
  • Page 23 PARTS LIST SQUEEGEE GROUP SSS Ultron 18BA...
  • Page 24 SQUEEGEE BLADE, FRONT, PU (OPTIONAL) 8118610 SHORT CLAMP ASSEBLY 1221575 SCREW M5×75 8118200 LEFT BRACKET 1121008 HEX NUT M10 8118600A CLAMP ASSEMBLY 8118624 SPACER 8118623 SHAFT 1123507 LOCK NUT M5 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 8118000-BK SQUEEGEE ASSEMBLY, LINATEX SSS Ultron 18BA...
  • Page 25 PARTS LIST SOLUTION FLOW GROUP SSS Ultron 18BA...
  • Page 26 BASE, FILTER ASSEMBLY 1622760 O RING 8119103 SCREEN, FILTER, 70 MESH 8119102 CAP, FILTER ASSEMBLY 1421409 FLAT WASHER M4×DIA9×0.8 1221412 PAN HEAD SCREW M4×12 8050903 TUBING ID=12MM L=120MM 8018007 SOLENOID VALVE, 24VDC 8018004 TUBING 8015060 INLET, TUBING SSS Ultron 18BA...

  • Page 27: Wearable Parts

    CASTER, 2 INCH 8118001 FRONT SQUEEGEE BLADE, PU 8118021 FRONT SQUEEGEE BLADE, LINATEX 8118002 REAR SQUEEGEE BLADE, PU 8118022 REAR SQUEEGEE BLADE, LINATEX 9040017 PAD HOLDER, 17 INCH 9050018 BRUSH, 18 INCH 8015090 SPLASH GUARD, SCRUB HEAD SSS Ultron 18BA...

  • Page 28: Wiring Diagram

    WIRING DIAGRAM WIRING DIAGRAM Ultron 18BA...
