The contents of this manual are based on the
latest product information available at the time
of publication. Triple S reserves the right to
make changes or improvements to its
machines without notice.
For new manuals write to:
Triple S
2 Executive Park Drive
Billerica, MA 01862
or download the most recent version of the
manuals from our website:
www.triple-s.com

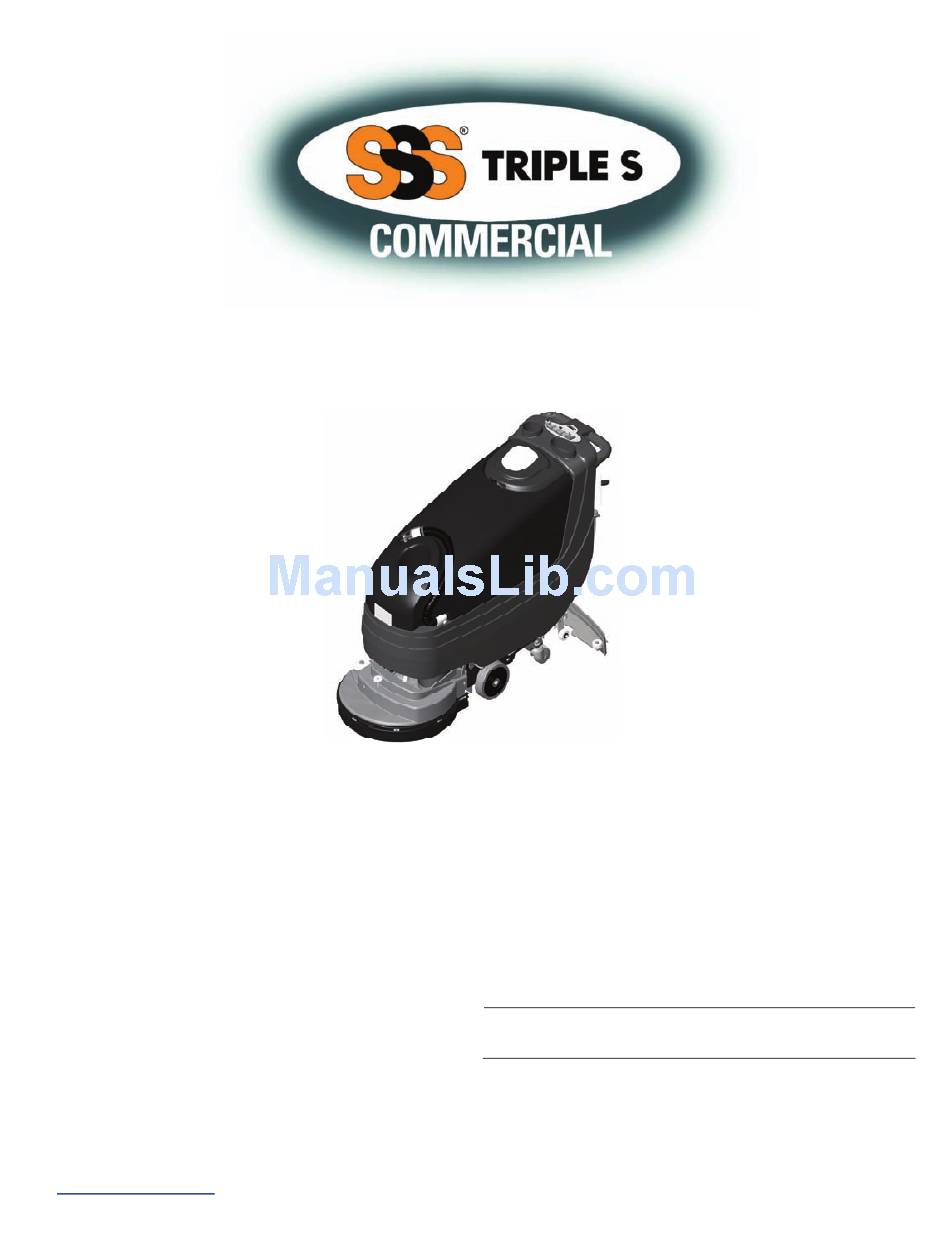

Ace 20B1 Auto Scrubber
Page 1 of 35
Carefully inspect all components to ensure that
there is no concealed freight damage. If such
damage is discovered, file a "CONCEALED
DAMAGE REPORT" immediately with the
delivering carrier.
FOR YOUR CONVENIENCE, RECORD THE
FOLLOWING IMPORTANT INFORMATION:
SERIAL NUMBER
DATE PURCHASED
Advertisement
Table of Contents
Related Manuals for Triple S Ace 20B1
Summary of Contents for Triple S Ace 20B1
- Page 1 Carefully inspect all components to ensure that latest product information available at the time there is no concealed freight damage. If such of publication. Triple S reserves the right to damage is discovered, file a “CONCEALED make changes or improvements to its DAMAGE REPORT”...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS You must have training in the operation of the machine before using it. READ THE INSTRUCTION BOOK. If you do not understand any instruction, ask your supervisor. Make sure all labels, decals, warnings, cautions and instructions are fastened to the machine. - Page 3 SYMBOLS USED ON THE AUTOMATIC SCRUBBER Water Valve Indicator Brush Drive Motor Control Switch Vacuum Motor Control Switch Brush Release Switch Battery Charge Indicator Main Machine Power Key Switch Squeegee Lift Control Lever Solution Flow Rate Adjusting Lever Page 3 of 35...
-
Page 4: Machine Preparation
MACHINE PREPARATION 1) UNPACKING THE MACHINE a) Take off the outer Pull packaging. Backwards b) The machine is fastened to the pallet with wooden wedges that block the wheels. Remove tie down straps. c) Using a ramp, pull the machine off the pallet. Remove 2) BATTERY INSTALLATION a) Remove the squeegee hose... -
Page 5: Battery Charge Level Indicator
MACHINE PREPARATION BATTERY INSTALLATION (Cont.) d) Place the batteries in the battery compartment. e) Connect the battery connector to the machine connector f) Replace the recovery tank and reassemble the vacuum cover and squeegee hose. Machine Connector Battery Connector 3) BATTERY CHARGE LEVEL INDICATOR The batteries’... - Page 6 MACHINE PREPARATION 4) SQUEEGEE ASSEMBLY INSTALLATION Vacuum The squeegee is assembled to the machine Outlet by lifting the locking latches and sliding the squeegee assembly onto the 2 posts at the rear of the squeegee swing arm. Push on the locking latches down.
-
Page 7: Recovery Tank
MACHINE PREPARATION 7) RECOVERY TANK Vacuum Open the lid and confirm the following Cover connections are secure: a) The vacuum cover is securely attached. Align the notches and rotate the cover clockwise to close. The vacuum hose must also be attached. b) Confirm that the squeegee hose is properly Squeegee connected. -
Page 8: Machine Operation
MACHINE OPERATION 1) Connect machine connector to the battery Machine connector. Connector Battery Connector 2) Turn on the main power key switch. Battery Brush charge indicator will illuminate indicating the Main Power Release charge level of the batteries. If the indicator is Key Switch Switch flashing the batteries need to be charged. -
Page 9: Overfill Protection
MACHINE OPERATION 10) SCRUBBING This machine is equipped with brush assist propulsion. Depress the handle switch lever. The scrub brush will begin to rotate and solution will begin to flow. During the first few yards of operation, check that the quantity of the cleaning solution is sufficient to wet the floor and that the squeegee dries the floor surface. - Page 10 UPON COMPLETION OF MACHINE USE After finishing your work and before any type of maintenance is done, it is necessary to do the Squeegee following: Lift Lever 1) Close the water valve by raising the solution flow control lever. 2) Raise the brush base by stepping down Parking Brake locking the brush base lift lever.
-
Page 11: Cleaning The Recovery Tank
DAILY MACHINE MAINTENANCE CLEANING THE RECOVERY TANK 1) Empty the recovery tank by removing the drain plug from the drain hose. WARNING: Use gloves for protection from contact with dangerous solution. Drain Plug 2) Lift the cover of the recovery tank. Vacuum 3) Take off the vacuum cover by rotating it Cover... -
Page 12: Cleaning The Squeegee
DAILY MACHINE MAINTENANCE CLEANING THE SQUEEGEE Vacuum To obtain the best drying results, keep the Outlet squeegee clean. To clean the squeegee it is necessary to: 13) Remove the vacuum hose from the squeegee. 14) Lift locking latches. Remove the squeegee assembly by pulling rearward. - Page 13 DAILY MACHINE MAINTENANCE BRUSH / PAD DRIVER REMOVAL Brush 24) Lift the brush base by depressing the foot Release level at the rear of the machine. Switch 25) Turn on brush motor switch. 26) Depress handle switch lever to start the brush spinning.
-
Page 14: Cleaning The Squeegee Hose
WEEKLY MACHINE MAINTENANCE CLEANING THE SQUEEGEE HOSE Do Not To obtain the best drying results, keep the Wash squeegee hose clean. To clean the squeegee Vacuum hose it is necessary to: Cover 1) Take off the vacuum hose from its vacuum Hose port on the squeegee. - Page 15 WATER SOLENOID MAINTENANCE In the event that the water solenoid begins to Water leak when turned off debris must be cleared at Solenoid the valve seat. Page 15 of 35...
-
Page 16: Troubleshooting Guide
TROUBLE SHOOTING GUIDE 1) INSUFFICIENT WATER TO THE BRUSHES Solution a) Make sure the solution flow control valve is open. Flow Control b) Confirm that there is water in the solution tank. Lever c) Make sure solution dispensing tubes are not clogged or obstructed. - Page 17 Brush Deck Assembly Drawing 1 Page 17 of 35...
- Page 18 Drawing 1 PART NUMBER DESCRIPTION & SPECIFICATION NOTE 841102 Wheel Bushing 841107 Bushing 841109 Bushing 841307 EPOXY PAINT Brush Deck Base Weldment 842003 Hose Clamp 842309 Base Cover 843301 Fitting Barbed 843302 Fitting Barbed 843606 Splash Guard 845004 Key - Motor Shaft 845005 Knob 845116...
-
Page 19: Main Frame Assembly
Main Frame Assembly Drawing 2 Page 19 of 35... - Page 20 Drawing 2 PART NUMBER DESCRIPTION & SPECIFICATION NOTE ZINC 840307 Brush Desk Lift Arm Weldment ASM ZINC 840308 Brake Lever Arm Weldment ZINC 840309 Brush Deck Idle Arm Weldment 841106 Rubber Bushing 841108 Bushing 842003 Hose Clamp 842008 Clamp Bar 842306 Pedal Cover 842311...
- Page 21 Squeegee Arm Assembly Drawing 3 Page 21 of 35...
- Page 22 Drawing 3 PART NUMBER DESCRIPTION & SPECIFICATION NOTE 840304 Squeegee Link Arm Weldment EPOXY PAINT 840501 Squeegee Adjuster Bolt ASM ZINC 841103 Wheel Bushing 842405 Squeegee Lift Cable 842407 Squeegee Lift Cable 845001 Adjustment Knob 845601 Squeegee Mount Base EPOXY PAINT 845602 Squeegee Mount Base Pivot ZINC...
-
Page 23: Squeegee Assembly
Squeegee Assembly Drawing 4 Page 23 of 35... - Page 24 Drawing 4 PART NUMBER DESCRIPTION & SPECIFICATION NOTE 840705 Squeegee Blade Front 840706 Squeegee Blade Rear 841304 Squeegee Attachment Block ZINC 842010 Band Clamp-Front 842011 Band Clamp-Rear 843204 Squeegee Frame Weldment EPOXY PAINT 843312 Filler - Squeegee 845104 Latch ASM ZINC 845105 Squeegee Attachment Block Latch...
-
Page 25: Solution Tank Assembly
Solution Tank Assembly Drawing 5 Page 25 of 35... - Page 26 Drawing 5 PART NUMBER DESCRIPTION & SPECIFICATION NOTE 841300 Rear Battery Bracket ZINC 841303 Side Battery Bracket ZINC 842003 Hose Clamp 842705 Sound Deadener 843308 Fitting Barbed 843309 Fitting Barbed 843310 Filter Basket 843401 Battery Plastic Gasket 843402 Side Battery Gasket 843404 Conical Tank Gasket 844702...
-
Page 27: Recovery Tank Assembly
Recovery Tank Assembly Drawing 6 Page 27 of 35... - Page 28 Drawing 6 PART NUMBER DESCRIPTION & SPECIFICATION NOTE 842007 Hose Clamp 842305 Solution Tank Cover 842308 Recovery Tank Cover 842403 Chain 842411 Chains For Lift 843405 Tank Gasket 844101 Recovery Tank Vacuum Hose 844102 Squeegee Vacuum Hose 844103 Drain Hose 845110 Recovery Tank Cover Label 845431...
-
Page 29: Vacuum Assembly
Vacuum Assembly Drawing 7 Page 29 of 35... - Page 30 Drawing 7 PART NUMBER DESCRIPTION & SPECIFICATION NOTE 840305 Lever Arm Weldment ZINC 840805 Bracket-Weldment EPOXY PAINT 841104 Bushing BRASS 841305 Lever Bracket EPOXY PAINT 842014 Hose Clamp 50mm 842702 Vacuum Motor Sound Deadener 842703 Vacuum Motor Sound Deadener 842704 Sound Deadener 843801 Grommet...
-
Page 31: Switch Box Assembly
Switch Box Assembly Drawing 8 Page 31 of 35... - Page 32 Drawing 8 PART NUMBER DESCRIPTION & SPECIFICATION NOTE 841306 Bezel - Rocker Switch 842301 Cover Upper Switch Box EPOXY PAINT 842302 Cover Lower Switch Box 842307 Cover - Rocker Switch 843801 Grommet 844001 Fuse Holder 845101 Scrubber Lever - Switch Box 845122 Switch Box Latch 845123...
-
Page 33: Electrical Schematic
Electrical Schematic Drawing 9 Page 33 of 35... - Page 34 Drawing 9 PART NUMBER DESCRIPTION & SPECIFICATION 844506 Wire Harness 844507 Wire Harness 844509 Wire Harness 844513 Wire Harness 844514 Wire Harness 844515 Wire Harness 844516 Wire Harness 844518 Wire Harness 844519 Wire Harness 844520 Wire Harness 844521 Wire Harness 844522 Wire Harness 844523...
-
Page 35: Battery Warranty
If unable to locate the Dealer, you may contact Triple S at the address listed herein for the location of the nearest Triple S repair center or agent or for other instructions pertaining to your warranty difficulty.
