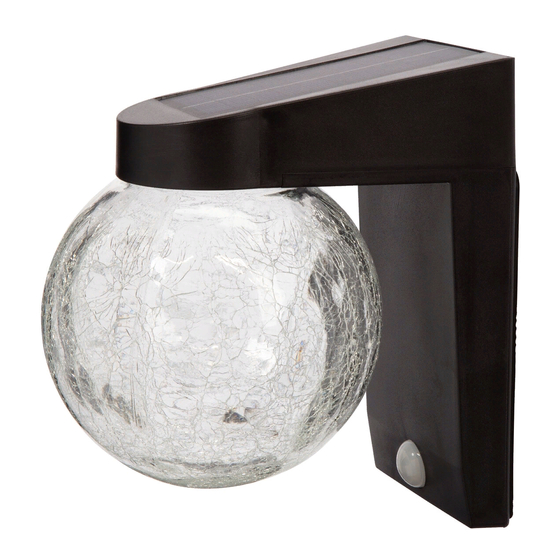

North Light TN-Q20A Instruction Manual

Solar Wall Light
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Safety
• Handle the product with care, making sure not to damage
the surface of the solar cell and ensuring that it is not
covered with dust or affected by other contaminants.
• The product must not be changed or modified in any way.
• Do not let children play with the product.
Assembly
When placing
the product
outdoors, make
sure that it
has access to
maximum sunlight
and is not affected
by other light
sources such as
street lights.
1. Slide the wall bracket down
and remove it from the light.
UNITED KINGDOM • CUSTOMER SERVICE
Tel. 020 8247 9300 E-mail: customerservice@clasohlson.co.uk Internet: www.clasohlson.co.uk Postal: 10 – 13 Market Place, Kingston upon Thames, Surrey, KT1 1JZ
Art.no 36-7566
2. Use the bracket as a template
and mark out where you need
to drill on the wall. Before
drilling and screwing, make
sure that the wall is free from
electrical wiring and water pipes.
3. Screw the wall bracket to the wall.
Use an appropriate fastening
method for the substrate material
in question.
4. Hook the light onto the bracket.
Instructions for use
Switch the light on using the power switch. The motion
detector is activated at dusk/in the dark and the light comes
on (as long as the battery is charged) when the motion
detector detects a movement. The light shines for
approximately 30 seconds and turns off automatically if no
new movement is detected.
Care and maintenance
Clean the light using a slightly moist cloth. Use only mild
cleaning agents, never solvents or corrosive chemicals.
Be careful not to damage the solar cell.
Model TN-Q20A
Responsible disposal
This symbol indicates that this product
should not be disposed of with general
household waste. This applies throughout
the entire EU. In order to prevent any harm to
the environment or health hazards caused by
incorrect waste disposal, the product must
be handed in for recycling so that the material
can be disposed of in a responsible manner.
When recycling your product, take it to your
local collection facility or contact the place of
purchase. They will ensure that the product is
disposed of in an environmentally sound manner.
Specifications
Luminous flux 100 lm
Battery 1 × 18650 3.7 V, 2000 mAh, Li-ion
Charging time Approx. 8 hours (in continuous sunlight)
Up to 90 minutes in total when fully charged
Operating time
(shines for 30 sec when activated)
Detection range 5–8 m in a 120° angle
ENGLISH
