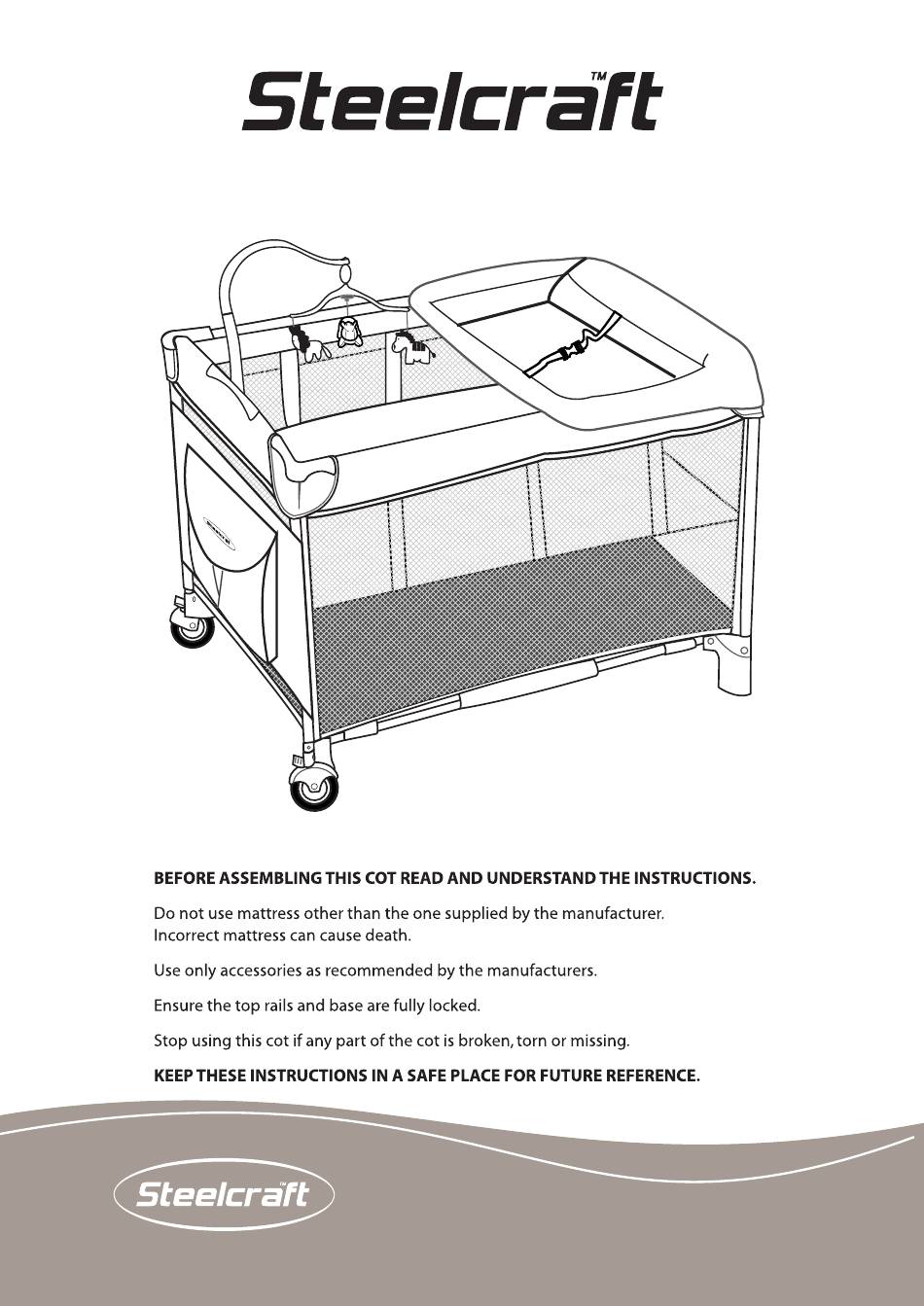

- Page 1 4 in 1 Portable cot Series No. Y-040...
- Page 2 WARNINGS RETAIN FOR FUTURE REFERENCE. READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF THIS COT. ALWAYS FOLLOW THE INSTRUCTIONS. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS ESSENTIAL. WARNINGS: TO AVOID INJURY OR DEATH: • FOLLOW THE MANUFACTURERS INSTRUCTIONS. •...
- Page 3 WARNINGS (Continued) • Do not place more than one child in the cot at the same time. • Do not use your cot if any part is torn, broken or missing. • Do not place toys or other objects in the cot which could provide a step or foothold to help the child climb out.
- Page 4 To ensure the cots correct assembly and use, ensure you follow these instructions in the order they are written. TESTED AND APPROVED ACCESSORIES Mattress by Steelcraft - Series Y-040 Bassinet by Steelcraft - Series Y-040 Change Table by Steelcraft - Series Y-040 Toy Mobile by Steelcraft - Series Y-040...
- Page 5 PARTS LIST 1 x Mattress 1 x Carry Bag 6 x Mattress Support 1 x Cot Rods 6 x Bassinet Support 1 x Bassinet Rods...
- Page 6 PARTS LIST 1 x Change Table 4 x Corner Moulding 1 x Toy Mobile Stand & 3 Soft Toy...
- Page 7 1. TO OPEN THE COT IMPORTANT: THESE STEPS WILL ENSURE THAT THE COT IS CORRECTLY OPENED AND READY TO USE. Unzip the carry bag and remove the cot. Stand the cot on its feet and undo the hook & loop straps that hold the mattress around the frame.
- Page 8 1. TO OPEN THE COT (Cont) NOTE: All the top rails should be locked in place. If they are not, release them and try again. The centre of the cot base must be in a raised position to allow the rails to lock easily. Check for the secure engagement of the rails by pushing down on them.
- Page 9 1. TO OPEN THE COT (Cont) WARNING: USE ONLY THE MATTRESS SUPPLIED BY THE MANUFACTURER, INCORRECT MATTRESSES CAN CAUSE DEATH. Place the mattress into the cot with its padded side facing up. Secure the mattress to the cot by passing the loop straps through the slot in the cot base and pressing it onto the hook attachment strips, sewn to the underside of the cot base.
- Page 10 2. TO USE THE WHEELS (Where tted) Push the brake lever down to lock, or lift the brake lever up to unlock. NOTE: Always apply the brakes wherever and whenever you are using the cot. 3. TO FOLD THE COT THESE STEPS MUST BE FOLLOWED IN THIS ORDER TO EASILY FOLD THE COT.
- Page 11 3. TO FOLD THE COT (Cont) Release each top rail by lifting the rail slightly and squeezing on the buttons, located on the centre joint. The buttons are covered by the top rail fabric and are located at the centre of rail.
- Page 12 3. TO FOLD THE COT (Cont) Take the mattress and wrap it around the folded cot with the padded side facing inwards. Thread the straps through the plastic loops, pull them tight and secure using the hook and loop attachments. Take the carry bag and cover the folded cot.
- Page 13 4. TO USE THE BASSINET WARNINGS: TO PREVENT FALLS, THIS BASSINET SHOULD NOT BE USED ONCE A CHILD CAN SIT UP. NEVER PLACE A CHILD IN THE COT WHEN THE BASSINET IS IN PLACE. Insert the 3, two piece support rods into bassinet inner sleeves separately and engage the locking pin.
- Page 14 4. TO USE THE BASSINET (Cont) Connect the 2, two piece frame rods by engaging the locking pin. Then insert the 2, two piece rods into the long sleeves of the longest sides of the bassinet and the 2, one piece rods into sleeves of the short sides.
- Page 15 4. TO USE THE BASSINET (Cont) Lower the bassinet into position, then push the mouldings onto the corners of the cot & snap the clamps onto the side rails to secure in place. NOTE: Always secure the mattress before using the bassinet. IMPORTANT: ALWAYS REMOVE THE BASSINET BEFORE FOLDING THE PORTABLE COT.
- Page 16 5. TO USE THE CHANGE TABLE WARNINGS: NEVER LEAVE YOUR CHILD UNATTENDED. TO PREVENT FALLS THE CHANGE TABLE SHOULD NOT BE USED ONCE A CHILD CAN SIT UP. NEVER PLACE A CHILD IN THE COT WHEN THE CHANGE TABLE IS IN PLACE. ALWAYS USE THE HARNESS WHEN USING THE CHANGE TABLE.
- Page 17 5. TO USE THE CHANGE TABLE (Cont) Pick the change table up by the plastic hooks and connect to the outside of the portable cot short end rail as shown. Rotate the change table over the portable cot and engage each of the four clamps onto the side rails.
- Page 18 6. TO USE THE CHANGE TABLE (Cont) Pull the pocket flap over the end of the portable cot. Attach the plastic clamps to the leg tubes to keep the pocket in place. When the change table is not in use, always fold over the end rail until required again.
- Page 19 6. TO ASSEMBLE AND USE THE TOY MOBILE WARNING: ALWAYS ATTACH THE MOBILE SECURELY TO THE COT ACCORDING TO THESE INSTRUCTIONS. CHECK ATTACHMENT FREQUENTLY. Insert the mobile upper curved arm into the mobile lower arm until locked together. Connect each of the three toys to the mobile tri-shaped hanger by threading the string into the slot at the end of each hanger arm.
- Page 20 6. TO ASSEMBLE AND USE THE TOY MOBILE (Cont) Insert the connector on the round music box into the hole on the mobile hanger and push until they lock together. Snap the moulding on the top of the music box into the end of the upper curved arm.
- Page 21 6. TO ASSEMBLE AND USE THE TOY MOBILE (Cont) Push the assembled mobile into the hole in the base moulding. Make sure it fully snaps in by pulling up the arm to check if they are securely attached. WARNING: POSSIBLE ENTANGLEMENT INJURY: THIS MOBILE IS DESIGNED TO BE USED FROM BIRTH TO 5 MONTHS.
- Page 22 6. TO ASSEMBLE AND USE THE TOY MOBILE (Cont) The mobile can be tted to the cot with or without the bassinet. To attach the mobile push the base of the mobile over any of the cot top rail centre joints. If using the change table, ensure the toy mobile is tted at the opposite end.
- Page 23 CARE AND MAINTENANCE • Regularly inspect and maintain you product to ensure the freedom of movements of the locking devices and security of components. • To prolong the life of your cot keep it clean and do not leave it in the direct sunlight for extended periods of time.
- Page 24 Due to our continuing program of development, Britax reserves the right to alter the specifications, color or design without any further notice. The Steelcraft trademark is the property of Britax Childcare Pty.Ltd - Australia. The Britax trademark is the property of Britax Childcare Holdings Limited - UK.
