The drive locations are also marked on the enclosure itself. The rows (A-G) are
marked on the left and right edges of the enclosure. The columns (1-14) are
marked on the front edge of the enclosure. The row and column marks are
visible when the top cover is removed.

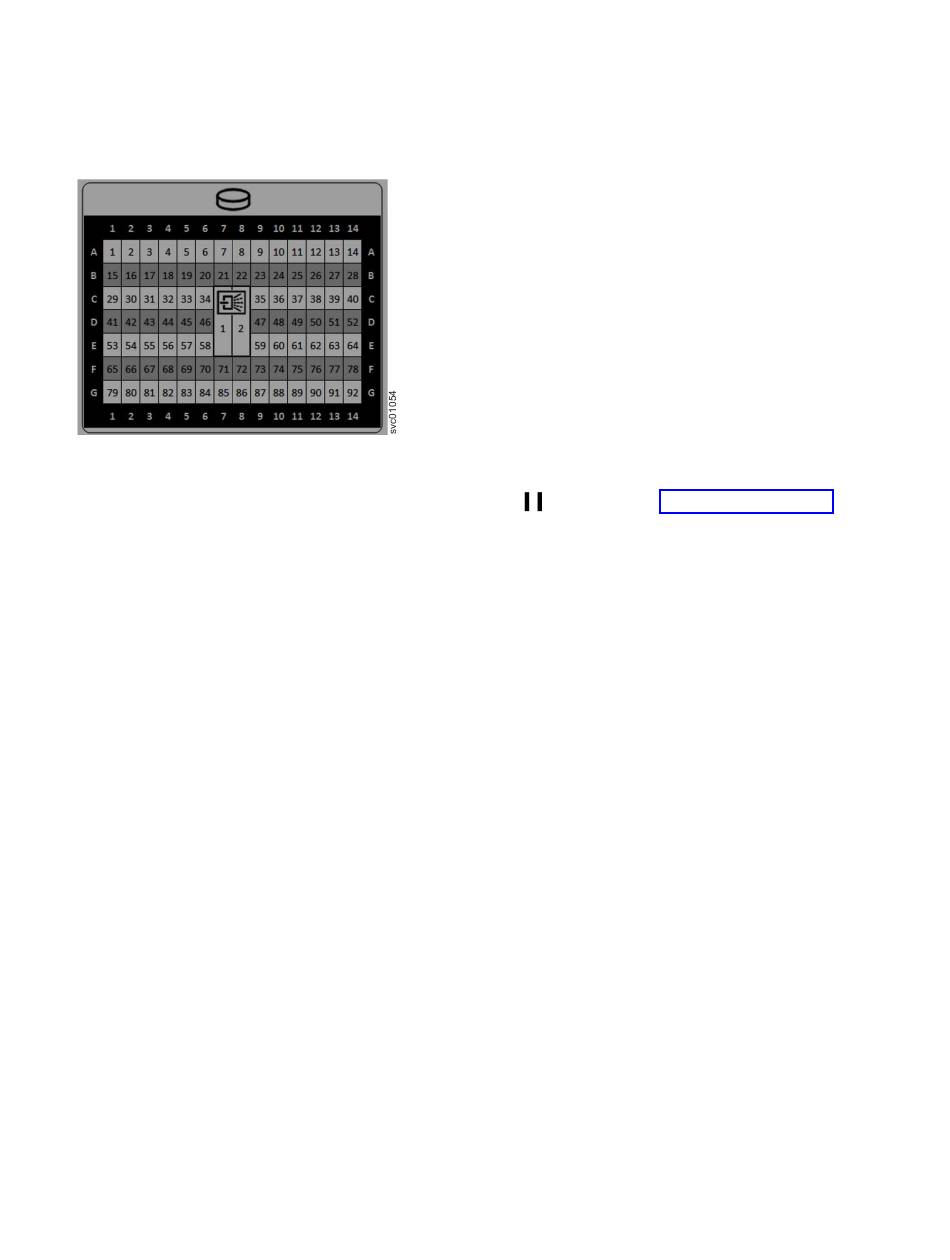

Figure 89. Drive locations in a 2077-92F expansion enclosure
5. Slide the release latch forward ( 1 ), as shown in Figure 90 on page 108.
107
Chapter 2. Installing the system hardware
