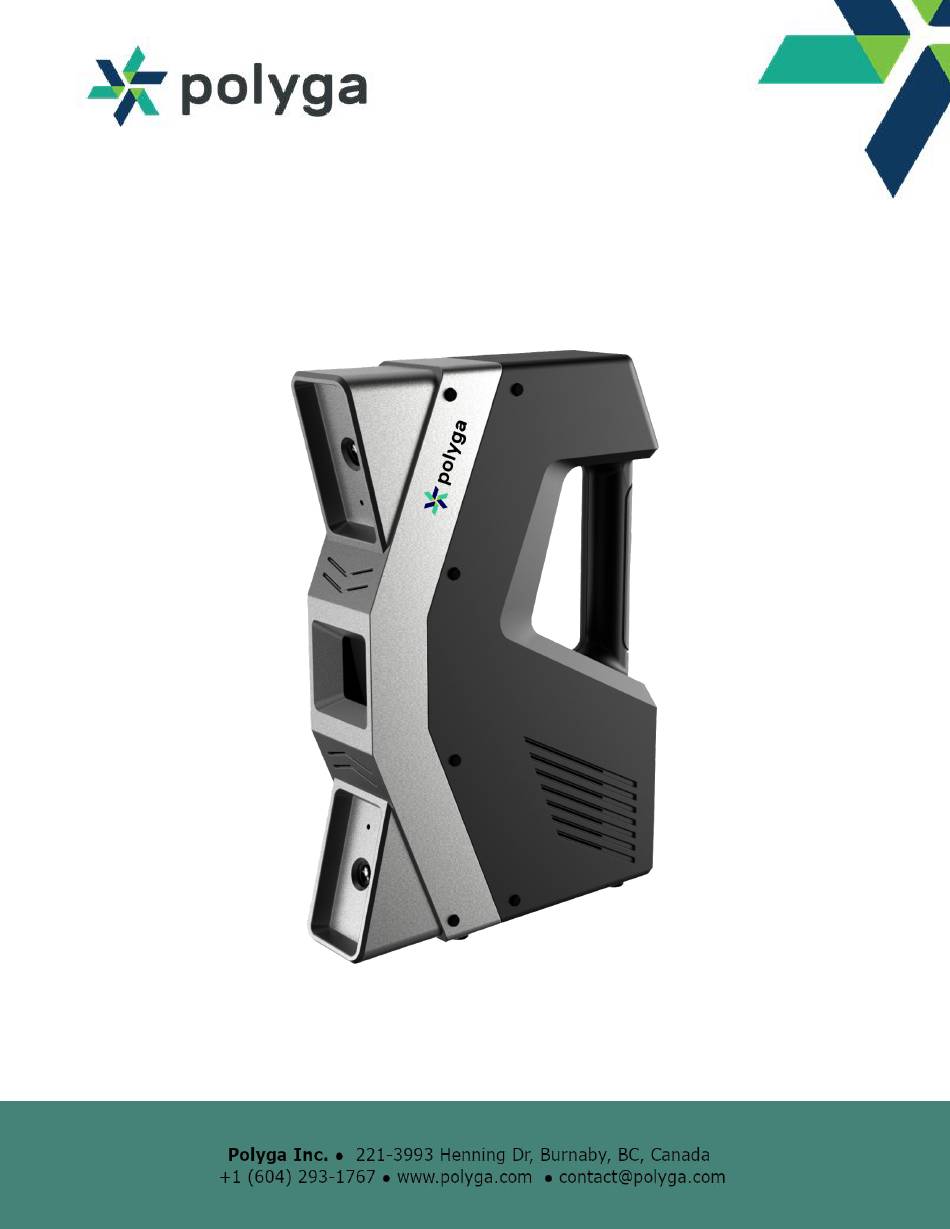

- Page 1 Getting Started Guide - The H3...
- Page 2 1.Getting Started with the H3 This quick start guide provides you with the resources to get you started on 3D scanning. The H3 comes with: ● 12V DC adapter(along with the power connectors). ● RJ45 Ethernet cable. ● FlexScan3D (3D Scanning Software).
- Page 3 Downloading FlexScan3D Software The H3 is powered by FlexScan3D. You can download the software from the Polyga Accounts Page ( h ttps://www.polyga.com/my-account/downloads/ ) or by contacting your distributor. To create a download account, please contact us at h ttps://www.polyga.com/contact/ Instructions for installing and activating FlexScan3D using an installation ID or dongle can be ...
- Page 4 Also, connect the RJ45 ethernet cable to the computer and to the H3. Once all the necessary connections are made, you will be able to power ON the H3 and add the scanner on FlexScan3D. Open FlexScan3D to add the scanner. Go to the S canners Panel tab which is on the top left of the screen, then click on ...
- Page 5 2. Taking your first 3D Scan The H3 has two laser’s that are positioned between the projector and the camera lenses. You will notice two laser dots on the surface of the object you are pointing the scanner towards. When you move the scanner towards and away from the object, the laser dots move away or closer to each other (as shown in the image below).
- Page 6 Go to the P roject tab in FlexScan3D and you will see the object in the live feed camera window on the bottom right of the screen. By default, the scanner brightness slider will be at the value of 1 and the gain at 0. If you require more gain so that you can get better results while scanning dark-colored objects the gain value could be increased using the slider.
- Page 7 FlexScan3D provides audio cues for a smoother scanning experience. Once done scanning, hit the SCAN button on the H3 to end the scan and the FlexScan will prompt if you need to save the scan data or not.
- Page 8 The H3 can also be switched between Handheld and Stationary mode. The stationary mode sets the scanner up to work exactly like the other stationary 3D scanners. Also, it is possible to toggle the detail level between High, medium, and low. The mesh quality...
