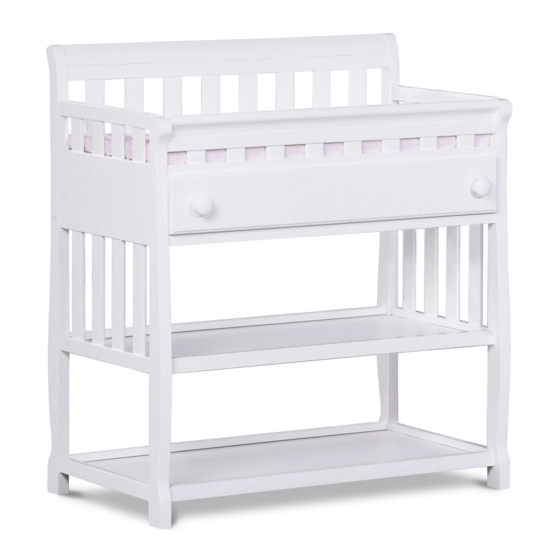

Changing Table
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
Consumer Care:
www.DeltaChildren.com
Delta Children's Products
114 West 26th Street
New York, NY 10001
Tele.212-645-9033
Conforms to
ASTM F2388
Safety Standards
To register your product for important safety alerts and updates to your product please
visit www.DeltaChildren.com and click on Product Registration.
DECEMBER 30, 2011, 22811, R0
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly, keep out of
reach of children until assembly is complete.
Style #:
___________
Lot:
___________
Date:
___________
When contacting Delta Consumer
Care you will need to reference the
above numbers. They can also be
found on the label on the Top Shelf.
A
REV
FACTORY
©2011 DELTA ENTERPRISE CORP.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7584 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta Children 7584

Summary of Contents for Delta Children 7584

  • Page 1 Changing Table THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. Consumer Care: Style #: ___________ www.DeltaChildren.com Lot: ___________ Delta Children’s Products 114 West 26th Street Date: ___________ New York, NY 10001 Tele.212-645-9033 FACTORY When contacting Delta Consumer Care you will need to reference the above numbers.

  • Page 2: Notes On Care And Maintenance

    - Do not scratch or chip the finish. - Inspect the product periodically, contact delta children's products for replacement parts or questions. - Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a damp, cold basement.
  • Page 3 PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT. B. Right Side x 1 Part # 22797 C. Cap Rail x 2 Part # 22798 D. Upper Back Rail x 1 Part # 22799 E. Top Front Rail x 1 Part # 22800 F.
  • Page 4 HARDWARE KIT PART #22812 FOR COLOR 100 OR #22813 FOR COLOR 604 OR #22814 FOR COLOR 260. SEE COVER PAGE. U. M6 x 35 mm Bolt x 20 No drills necessary. Do not use power screwdriver. Part # 5464 W. Knob x 2 Part # 22815 V.

  • Page 5: Section 1: Changing Table Assembly

    SECTION 1: CHANGING TABLE ASSEMBLY STEP 1 PARTS AND TOOLS REQUIRED TO COMPLETE STEP F. Front Middle Rail x 1 D. Upper Back Rail x 1 U. M6 x 35 mm Bolt x 8 EE. Back Middle Rail x 1 M4 Allen Wrench E.
  • Page 6 SECTION 1: CHANGING TABLE ASSEMBLY STEP 2 PARTS AND TOOLS REQUIRED TO COMPLETE STEP FF. Back Middle Panel x 1 From Step 1 H. Top Shelf x 1 J. Bottom Shelf x 2 Lay the Left Side on the floor, rails up. Slide the Top Shelf (Part H) in the grooves on the Top Front Rail and Upper Back Rail, into the groove on the Left Side.
  • Page 7 SECTION 1: CHANGING TABLE ASSEMBLY STEP 3 PARTS AND TOOLS REQUIRED TO COMPLETE STEP From Step 2 U. M6 x 35 mm Bolt x 8 M4 Allen Wrench Supplied B. Right Side x 1 Attach (1) Right Side (Part B) to the assembly from step 2 with (8) M6 x 35 mm Bolts (Part U) using the M4 Allen Wrench as shown.
  • Page 8 SECTION 1: CHANGING TABLE ASSEMBLY STEP 4 PARTS AND TOOLS REQUIRED TO COMPLETE STEP From Step 3 U. M6 x 35 mm Bolt x 4 C. Cap Rail x 2 M4 Allen Wrench Supplied Attach (2) Cap Rails (Part C) to the assembly from step 3 with (4) M6 x35 mm Bolts (Part U) using the M4 Allen Wrench as shown.
  • Page 9 SECTION 1: CHANGING TABLE ASSEMBLY STEP 5 PARTS AND TOOLS REQUIRED TO COMPLETE STEP V. M6 x 20 mm Bolt x 1 BB. Nut x 1 M4 Allen Wrench Supplied AA. Nylon Washer x 2 Pliers or Adjustable Wrench (Not Supplied) L.
  • Page 10 SECTION 1: CHANGING TABLE ASSEMBLY STEP 6 PARTS AND TOOLS REQUIRED TO COMPLETE STEP K. Foam Pad x 1 From Step 5 1. Insert the strap through the hole in the Foam Pad (Part K). 2. Place Foam Pad (Part K) on Top Shelf (Part H). Click !

  • Page 11: Section 2: Drawer Assembly

    SECTION 2: DRAWER ASSEMBLY STEP 1 PARTS AND TOOLS REQUIRED TO COMPLETE STEP Y. 25mm Flat Head Wood Screw x 4 Z. Φ6x25 mm Wood Dowel x 4 R. Drawer Right Side x 1 M. Drawer Front x 1 Phillips Screwdriver not supplied P.
  • Page 12 SECTION 2: DRAWER ASSEMBLY STEP 2 PARTS AND TOOLS REQUIRED TO COMPLETE STEP From Section 2 Step 1 S. Drawer Bottom x 1 T. Drawer Support x 1 1. Slide (1) Drawer Bottom (Part S) in the grooves on the Drawer Left Side and Drawer Right Side, into the groove on the Drawer Front.
  • Page 13 SECTION 2: DRAWER ASSEMBLY STEP 3 PARTS AND TOOLS REQUIRED TO COMPLETE STEP From Section 2 Step 2 Y. 25mm Flat Head Wood Screw x 1 CC. 35mm Flat Head Wood Screw x 4 DD. Plastic Barrel Nut x 4 N.
  • Page 14 SECTION 2: DRAWER ASSEMBLY STEP 4 PARTS AND TOOLS REQUIRED TO COMPLETE STEP From Section 2 Step 3 W. Knob x 2 Phillips Screwdriver not supplied X. M4 x 30 mm Bolt x 2 1. Attach (2) Knobs (Part W) to the assembly from section 2 step 3 with (2) M4 x 30 mm Bolts (Part X), Tighten with the Phillips Screwdriver.
  • Page 15 FINAL RESTRAINT HARNESS SYSTEM USE: . PLACE THE INFANT ON THE CHANGING TABLE FOAM PAD. . POSITION THE RESTRAINT HARNESS OVER THE MIDDLE OF THE INFANT’S TORSO AND INSERT THE BUCKLED ENDS INTO EACH OTHER UNTIL THE LOCK SHUT WITH A CLICK. .
  • Page 16 Style Number and Lot Number available. Use the space below to make note of those numbers. They can be found on the label on the Top Shelf. STYLE No: 7584 COLOR Lot No. : _______________________ Pack Date:_____________________...
