iComfort Auto Gliding
BASSINET
701605-XXXX
ASSEMBLY INSTRUCTIONS
WARNING:
CHOKING HAZARD
Adult assembly required because of
small parts. Keep assembly parts out
of reach of children under 3 years.
REQUIRED: Phillips Screwdriver (not included)
IMPORTANT: Read all instructions before assembly and use of the product. Keep the
instructions for future reference.
www.DeltaChildren.com I Customer Service: (646) 435-8726
Styles and colors may vary
DCP-IM-11222019-F8
Advertisement
Table of Contents
Related Manuals for Delta Children Serta iComfort 701605 Series
Summary of Contents for Delta Children Serta iComfort 701605 Series
- Page 1 iComfort Auto Gliding BASSINET 701605-XXXX Styles and colors may vary ASSEMBLY INSTRUCTIONS WARNING: CHOKING HAZARD Adult assembly required because of small parts. Keep assembly parts out of reach of children under 3 years. REQUIRED: Phillips Screwdriver (not included) IMPORTANT: Read all instructions before assembly and use of the product. Keep the instructions for future reference.
- Page 2 • If a sheet is used with the pad, use only the one provided by Delta Children or one specifically designed to fit the dimension of the bassinet mattress.
- Page 3 Contact our Customer Service Department directly for assistance (646) 435-8726 www.DeltaChildren.com • gcs@deltachildren.com ©2019 Delta Children’s Products, Inc. New York, NY 10001 EXTENDED WARRANTY DON’T MISS YOUR CHANCE TO BE COVERED FOR ALL OF LIFE’S MISHAPS! With Delta’s Extended Warranty, you’re covered for mechanical failure from normal use or if your item stops working due to normal wear and tear, plus all those unexpected surprises.
- Page 4 Parts IMPORTANT! Please remove all parts from the package and identify them before assembly. Frame Back Front Base Leg (X1) Base Leg with Wire Connection (X1) (For power housing and power cord attachment) Auto-Glide Housing (X1) (Needs 2 - M6 - 3.5cm - screws to attach to front base leg with wire connection) Mattress Support Board Support Tubes (X2)
- Page 5 Parts IMPORTANT! Please remove all parts from the package and identify them before assembly. Phillips Screwdriver (NOT INCLUDED) Locking Casters (X4) Mobile With Plush Stars Power Cord Hardware *Screws are shown in actual size - 10 total screws M6 - 1.7cm x 8pcs M6 - 3.5cm x 2pcs (Used for power housing assembly) Mobile Arm...
- Page 6 Top Frame Assembly NOTE: Make sure front of frame is aligned with top front mattress support • Place the frame on a flat surface and extend the support NOTE: You may need the help of another adult for assembly. legs out. •...
- Page 7 Attaching Power Housing to Front Base Leg M6 Screw - 3.5cm - x2 - Actual Size Auto-Glide Housing Auto-Glide Housing THIS SIDE UP FACING INWARD M6 Screw Thread Auto-Glide Attach (x2) M6 Screws Housing Nub M6 Screw Thread Front Base Auto-Glide Housing Front Base...
- Page 8 Front Base Leg and Frame Assembly M6 Screw - 1.7cm - x2 - Actual Size FRONT BASE LEG MATTRESS SUPPORT BOARD FRAME • Locate the two (x2) M6 screw, a Phillips screwdriver, and the front base leg. • Insert the two (x2) M6 screw to the assembled front base leg and use the Phillips screwdriver to tighten on both sides.
- Page 9 Back Base Leg and Frame Assembly M6 Screw - 1.7cm - x2 - Actual Size BACK BASE LEG Align two side nubs to the three holes on frame MATTRESS SUPPORT BOARD BACK BASE LEG NOTE: You may need the help of another adult for assembly. •...
- Page 10 Storage Basket Assembly Slide Support Tube Into Fabric Storage Liner Fabric Storage Liner Slip the corners fabric liner over bottom base legs (4x). Support Tube Fabric Storage Liner Facing Upward M6 Screw - 1.7cm - x2 - Actual Size • Locate the two (x2) support tubes, and the fabric storage liner. •...
- Page 11 Locking Casters Assembly *Once casters are assembled, turn the assembly bassinet upright. • Locate the four (x4) locking casters and insert into (4) bottom leg joints. • Insert the casters into the base legs. Push down until you hear the caster “CLICK” into place. •...
- Page 12 Consumer Information WARNING Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. CAUTION - Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a class B digital device.
- Page 13 Mobile Arm Unit Operation Rotate Mobile Toys Twinkling Lights Music Music Volume AUTO Switch GLIDE Auto Glide Night Light Music Volume Mobile Functions Switch On / Off Mobile Functions On/Off Switch Music Button • Push the Mobile Functions On/Off button at the base of the mobile •...
- Page 14 Attaching Fabric Mattress Pad With Sheet FRONT • Place the sheet over the mattress pad. • Place the covered mattress pad into the liner. • Locate the fabric liner. NOTE: Side of the frame has the mobile arm attachment holes and the Frame front of the liner has the warning label.
- Page 15 Mobile Assembly Screws • Fit the mobile to the mobile arm. Push the mobile up firmly. HINT: To disassemble the mobile for storage, press the tab on the mobile arm and pull the mobile down. • Remove two (x2) pre-installed screws from mobile arm. •...
- Page 16 Wire Connection Assembly M obile Ar m Wir e Mobile Arm Wire with Conne ct or With Connector Bat t er y Wir e Top Base Leg Top Base Leg with Conne ct or Conne ction Cor d Connection Cord Magnet Wir e Power Housing Conne ction...
- Page 17 Care and Maintenance • The frame, mattress pad, storage basket, music module may be wiped clean using a mild cleaning solution and a damp cloth. Do not use bleach. Do not use harsh or abrasive cleaners. Rinse clean with water to remove residue.
- Page 18 Customer Service Tel. (646) 435-8726 www.DeltaChildren.com...
- Page 19 Customer Service Tel. (646) 435-8726 www.DeltaChildren.com...
- Page 20 1-646-435-8726 www.DeltaChildren.com...
Need help?
Do you have a question about the Serta iComfort 701605 Series and is the answer not in the manual?
Questions and answers

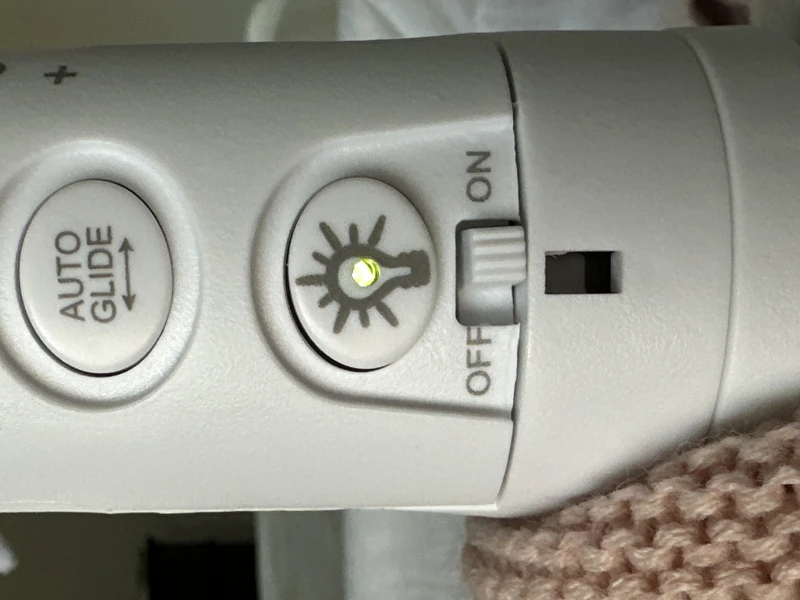

serta icomfort auto glide bassinet blinking yellow light when plugged in. The controls will not work and only the light blinks, why?
