Teradek Bolt DSMC2 Quick Manual

ZERO DELAY
WIRELESS
HD VIDEO
FOR DSMC2
Bolt DSMC2 is a zero delay
wireless video transmission
system designed to fit seamlessly
onto the back of RED DSMC2
cameras. Bolt transmits 1080p60
4:2:2 video at up to 500/1000/3000
ft line of sight over the unlicensed
5GHz band with less than 1ms
latency.

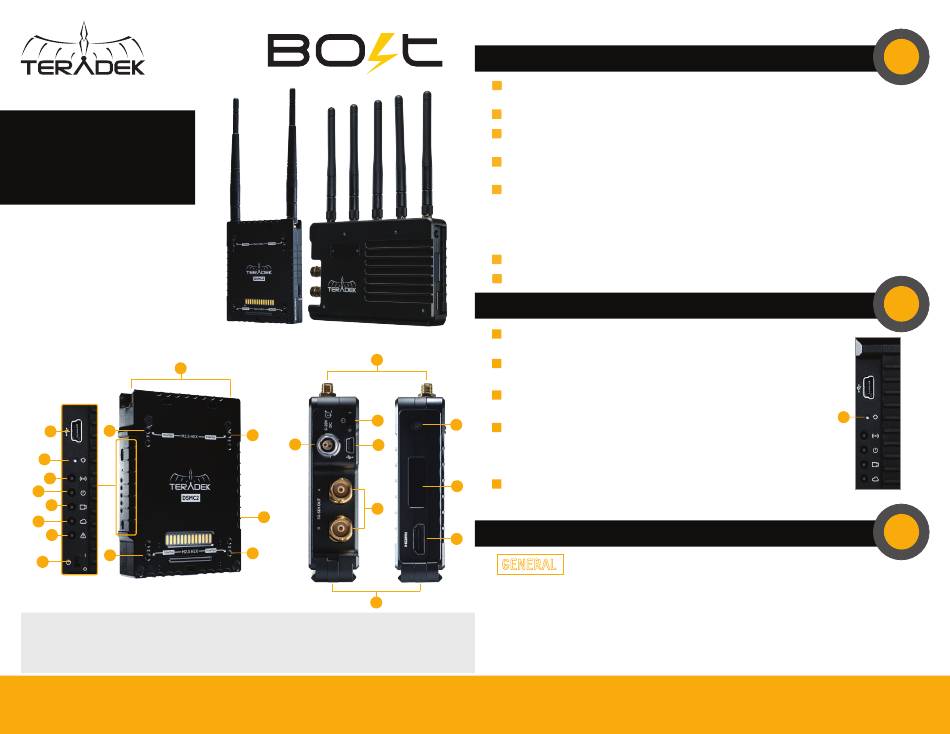

A
Bolt TX
J
B
C
D
E
F
G
H
J
I
A: RP-SMA connectors F: Video status LED
B: Mini USB port G: Network status LED
C: Reset/Pairing button H: Fault/Error
D: Wireless On/Off LED I: Power switch
E: Power status LED
Teradek regularly releases new firmware versions to improve performance, add new features, or to fix vulnerabilities.
Visit https://www.teradek.com to update your device with the latest firmware.
Bolt 3000 XT -RX
Bolt DSMC2 - TX
A
Bolt RX
I
J
L
B
M
K
J
Q
J: Captive screws N: Menu joystick
K: HDMI output O: OLED display
(opposite side)
L: Power input P: HDMI output
M: 3G-SDI output Q: NATO rail mount

CONNECT AND POWER

Remove the protective MOD GUARD plate from the front of the Bolt DSMC2 by unscrewing
1
the four captive screws from the back (J).
2
Place Bolt firmly against the back of the DSMC2 camera.
3 Tighten the four captive screws in a cross pattern ("X" pattern) using a 2.5mm hex wrench. DO NOT
OVER-TIGHTEN.
If using a DSMC2 Battery Module, place it firmly against the back of Bolt. Make sure the connector
4
in the front of the battery module aligns with the connector on the back of Bolt.
5 The Power status LED (E) will indicate power is present if a battery is connected to the DSMC2 Battery
Module or if power is provided via the DSMC2 camera. The camera will boot when the camera's power
button is pressed. While the camera is booting, Bolt will also boot.
NOTE: If the Power status LED is on, but the camera does not boot, remove Bolt then re-attach, making
sure it's properly seated. Always use an X pattern when tightening the M4 screws.
6 Move the power switch (I) to the ON position.
To remove Bolt, loosen the four captive screws and pull it off the back of the camera.
7

PAIRING INSTRUCTIONS

1 Turn on the Bolt transmitter and receiver. If the Bolt receiver does not have an OLED
display, connect a monitor to the receiver's video output.
2 Using the Menu joystick (N) on the receiver, navigate through the menus and
select Pairing.
3
Confirm that PLEASE ACTIVATE PAIRING ON TX is displayed on receiver's OLED
display (O) or the monitor.
N
4 On the transmitter, use a paper clip (or similar) to press the Reset/Pairing
button (C). After a few seconds, Pairing: XXXXX... should be displayed on the
receiver's OLED display or the monitor. If not, power cycle the receiver and the
transmitter, then try again.
5
O Using the Menu joystick, select OK to finish pairing. This process takes up to a
minute. If pairing fails, power cycle the receiver and the transmitter and try again.

DEVICE OPERATION

P

GENERAL

• Keep the transmitter and the receiver at close range for 60 seconds after powering on the devices. This
allows them to scan for and select the best wireless channel.
• For best results when using multiple Bolt systems in the same area, place the transmitters and receivers
a few feet apart from each other.
• Operation of other wireless equipment may interfere with Bolt. For best results, separate other
wireless transmitters and receivers as much as possible.
NEED MORE HELP?
Support: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
TERADEK SUPPORT STAFF: support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 7am to 6pm PST)
C
Bolt TX
