OPERATING INSTRUCTIONS
GB

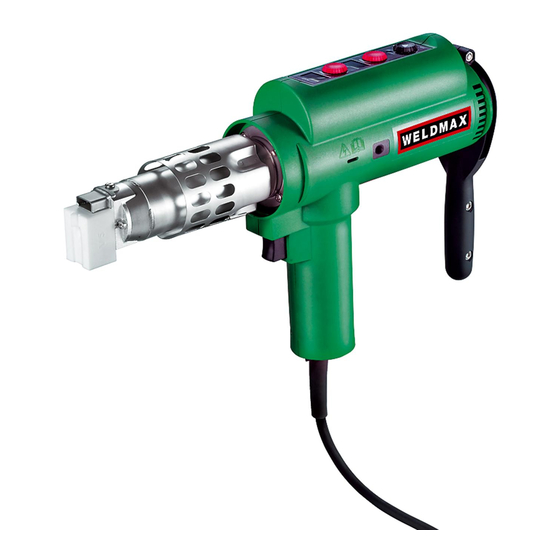

LEISTER WELDMAX
Mini-Hand Extruder
Please read operating instructions carefully before
use and keep for further reference.
Application
• Welding of thermoplastic materials made from:
PE-HD
PP-H, PP-B, PP-R
• Do not weld (PE-EL) electronically conductive material.
(Reason: electric shock.)
• Welding seams in containers, appliances and pipe construction are carried
out in accordance with DVS 2207 part 4.
• Welding of geomembrane liners for disposal sites and rubbish tips are carried
out in accordance with DVS 2225 part 4.
LEISTER Process Technologies, Riedstrasse, CH-6060 Sarnen / Switzerland
Tel. + 41 41 662 74 74 Fax + 41 41 662 74 16
PPS.
www.leister.com
sales@leister.com
1
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WELDMAX and is the answer not in the manual?

Questions and answers

Related Manuals for Leister WELDMAX

Summary of Contents for Leister WELDMAX

  • Page 1 DVS 2207 part 4. • Welding of geomembrane liners for disposal sites and rubbish tips are carried out in accordance with DVS 2225 part 4. LEISTER Process Technologies, Riedstrasse, CH-6060 Sarnen / Switzerland www.leister.com sales@leister.com Tel. + 41 41 662 74 74 Fax + 41 41 662 74 16...

  • Page 2: Technical Data

    WARNING DANGER! Danger when opening up the tool, as live components and connections are exposed. Therefore, before opening it, unplug the tool to ensure disconnection from the mains. Electronically conductive material (eg PE-EL) must not be welded. Incorrect use of the hand extruder (eg overheating of the material) can present a fire and explosion hazard, espe- cially near combustible materials and explosive gases.
  • Page 3 OPERATING LEISTER WELDMAX Hand Extruder Operating condition • As required, fit the relevant welding shoe (1) according to instructions for change of welding shoe. • Connect the tool to the mains. • Switch on the tool at main switch (13).
  • Page 4 OPERATING LEISTER WELDMAX Hand Extruder Change of welding shoe CAUTION! Danger of getting burned. • Do not change the welding shoe when the tool us cold. • Switch off the hot tool and disconnect from the mains. • Remove the welding shoe holder (3) from the heater tube (8). by loosening the set screws for welding shoe holder (4) (use gloves).
  • Page 5 OPERATING LEISTER WELDMAX Hand Extruder Control panel with digital display Welding positions V- / X-weld Filet weld...
  • Page 6 FAULTS LEISTER WELDMAX Handextruder Operating faults and preventative measures • Welding rod obstruction – Should the welding rod outside the tool get obstructed, the rod feed will skid to prevent tool damage. – Safeguard the welding rod feed, check welding rod tolerance.

  • Page 7: Maintenance

    • The carbon brushes of the winding motor should be checked after approx. 1000 running time by your Service Centre. • Repairs should only be carried out by authorized LEISTER Service Centres. They guarantee a specialised and reliable Repair Service within 24 hours using original spare parts in accordance with the circuit diagram and spare parts list.
  • Page 8 ® Service Record LEISTER WELDMAX This document should be kept up to date during repair or servicing by the authorized LEISTER Service Centre. This document should be in the possession of the owner of the equipment. Technical data Order No.
