Shark duo clean IZ202SM Owner's Manual

Shark duo clean IZ202SM Owner's Manual

Cordless vacuum with self-cleaning brushroll

Advertisement

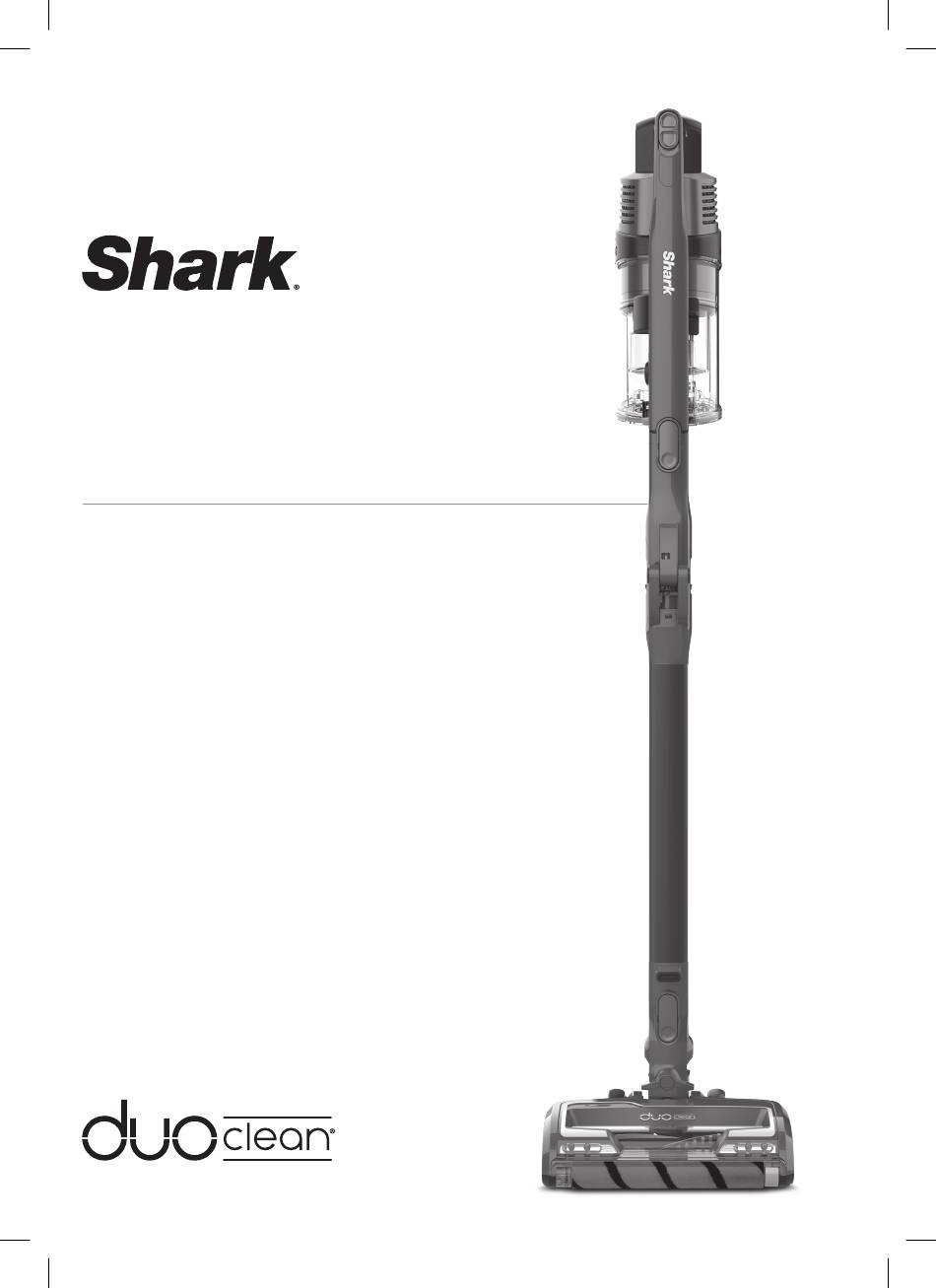

Cordless Vacuum with
l
Self-Cleaning Brushrol
IZ202SM
OWNER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the duo clean IZ202SM and is the answer not in the manual?

Questions and answers

Edward M. Krauss
April 10, 2025

roller not turning can't figure out how to open to check for blocks

1 comments:
Mr. Anderson
April 10, 2025

To check for blockages when the roller is not turning on the Shark Duo Clean IZ202SM:

1. Turn off the vacuum.
2. Remove the handheld vacuum from the wand.
3. Check all intake openings to the dust cup and remove any debris or blockage.
4. Check the wand, accessories, and inlet openings for blockages and remove any debris.
5. Inspect the brushroll area. If hair or fibers are wrapped around the brushroll, continue cleaning or carefully remove them.
6. To clean the Soft Roller:
- Pull it out using the tab.
- Tap off debris and wipe with a dry towel.
- Hand wash with water if needed and let air-dry for 24 hours before reinserting.

This answer is automatically generated

paul brown
May 24, 2025

how do i change the on off switch. & where can i get one

Summary of Contents for Shark duo clean IZ202SM

  • Page 1 Cordless Vacuum with Self-Cleaning Brushrol IZ202SM OWNER’S GUIDE...
  • Page 2: Important Safety Instructions

    11. DO NOT use without dust cup, filters, to the user. and brushroll in place. Before each use, carefully inspect 12. Only use Shark® branded filters and GUIDE all parts for any damage. If a part is accessories. Failure to do so will void damaged, discontinue use.
  • Page 3: Battery Pack

    DO NOT use as an attachment to the power switch. power tools for dust collection. 32. Use only Shark® charger DK33-288080H-B. e) Smoking or burning objects (hot coals, Use of an incorrect charger may result in cigarette butts, or matches) no charging, and/or unsafe conditions.
  • Page 4 ASSEMBLY 1. Insert Wand into Floor Nozzle. 2. Insert Handheld Vacuum into wand. For proper operation, ensure all components are completely connected and clicked into place. sharkclean.my...
  • Page 5: Li-Ion Battery

    LI-ION BATTERY The Lithium Ion Power Pack battery does not come fully charged. Prior to first use, charge completely. During first use, run the battery down until it is completely out of power. This will condition the battery. LED BATTERY POWER AND CHARGING INDICATORS Charging Charge Charge...
  • Page 6: Charging The Battery

    CHARGING THE BATTERY USING THE LI-ION CHARGER LI-ION CHARGER IN HANDHELD VACUUM Plug the Li-Ion Charger into a wall outlet. Remove the handheld vacuum from the wand by pressing the Wand Release Button and pulling up. Plug the charger into the charging port on the handheld vacuum.
  • Page 7: Boost Mode

    SETTINGS HARD FLOOR SETTING Slide switch to the bottom to turn off power. Hard Floor/Small Area Rugs To begin vacuuming in Standard Mode, slide switch The brushrolls spin slowly to clean bare floors and to the desired setting. small area rugs. CARPET SETTING BOOST MODE Carpet...
  • Page 8: Cleaning Modes

    CLEANING MODES UPRIGHT MODE To clean floors, place foot on floor nozzle and tilt handheld vacuum back. NOTE: Brushrolls will only engage when the handheld vacuum is tilted back. ABOVE-FLOOR HANDHELD ABOVE-FLOOR WITH WAND Press the wand release button and lift the handheld Stand the vacuum upright and press the nozzle vacuum off the wand.
  • Page 9: Using The Multiflex™ Wand

    USING THE MULTIFLEX™ WAND Press the unlock latch on the back of the wand, Adjust the wand to a lower angle to easily clean then adjust the angle. under furniture. MULTIFLEX™ STORAGE (Click) To put the vacuum in storage mode, press the To take the vacuum out of storage mode please the unlock latch while folding the handheld vacuum unlock latch and lift up the handheld vacuum until...
  • Page 10: Maintaining Your Vacuum

    MAINTAINING YOUR VACUUM EMPTYING THE DUST CUP To empty the Dust Cup while it is attached to the Press the wand release button to detach the handheld vacuum from the wand. handheld vacuum, position the dust cup over a trash receptacle and slide the CleanTouch™...
  • Page 11: Cleaning The Filters

    MAINTAINING YOUR VACUUM CLEANING THE FILTERS To clean filters, rinse them with water only. Allow all filters to air-dry completely for at least 24 hours before reinstalling to prevent liquid from being drawn into electric parts. Clean the pre-motor filters at least once a month and post-motor or HEPA filter at least once a year.
  • Page 12: Maintenance

    MAINTENANCE FLOOR NOZZLE FLOOR NOZZLE If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the self-cleaning brushroll or Soft Roller. 1. Turn off the vacuum. 2. Using a coin, turn locks counterclockwise to open, then lift off cover to access the self-cleaning brushroll.
  • Page 13: Checking For Blockages

    MAINTAINING YOUR VACUUM CHECKING FOR BLOCKAGES Checking for Blockages in the Handheld Vacuum: 1. Turn off vacuum. 2. Remove the handheld vacuum from the wand. 3. Check all intake openings to the dust cup and remove any debris or blockage. Checking for Blockages in the Wand: Standard Wand: MultiFLEX™...
  • Page 14: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING: To reduce the risk of shock and unintended operation, turn off power and remove the Lithium Ion Power Pack battery before servicing. Vacuum is not picking up debris. No suction or light suction. Nozzle light is red. (Refer to Checking for Blockages section for more information.) •...
  • Page 15 ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.COM 8" Crevice Tool 18" Flexi Crevice Tool Duster Crevice Tool Dusting Brush Multi-Angle Dusting Brush Anti-Allergen Dust Brush Upholstery Tool Wide Upholstery Tool Pet Multi-Tool Deep-Cleaning Motorized Pet Tool MultiFLEX™ Under-Appliance Wand Accessory Bag Li-Ion Charger Dual Li-Ion Charger Li-Ion Battery NOTE: Not all accessories come with all units.
  • Page 16 LIMITED WARRANTY • VACUUM: THREE (3)YEARS • BATTERY: TWO (2) YEARS If your vacuum becomes defective due to faulty material or workmanship within a period of 3 years and if your battery becomes defective due to faulty material or workmanship within a period 2 years from the date of purchase, we warrant to do the following: For New Zealand Consumers: We will replace the product with a new product, free of charge, or repair the product at our cost, at our discretion.
  • Page 17 NOTES sharkclean.sg...
  • Page 18 NOTES sharkclean.my...
  • Page 19: Register Your Purchase

    REGISTER YOUR PURCHASE sharkclean.sg sharkclean.my TECHNICAL SPECIFICATIONS RECORD THIS INFORMATION Voltage: 25.2V Model Number: ����������������������������� Date Code: ��������������������������������� Date of Purchase: ��������������������������� (Keep receipt) Store of Purchase: ��������������������������� TIP: You can find the model and serial numbers on the QR code label on the bottom of the back of the handheld vacuum and battery.
  • Page 20 For SharkNinja U.S. Patent information, visit sharkninja.com/uspatents © 2019 SharkNinja Operating LLC. DUOCLEAN, and SHARK are registered trademarks of SharkNinja Operating LLC. CLEANTOUCH and MULTIFLEX are trademarks of SharkNinja Operating LLC.
