Assembling the neat seam beginning (NSB)
2.4 Checking the locking mechanism and the throat plate
Information
To assemble the neat seam beginning, you must install the correct locking
mechanism and the correct throat plate holder.

2.4.1 Locking mechanism

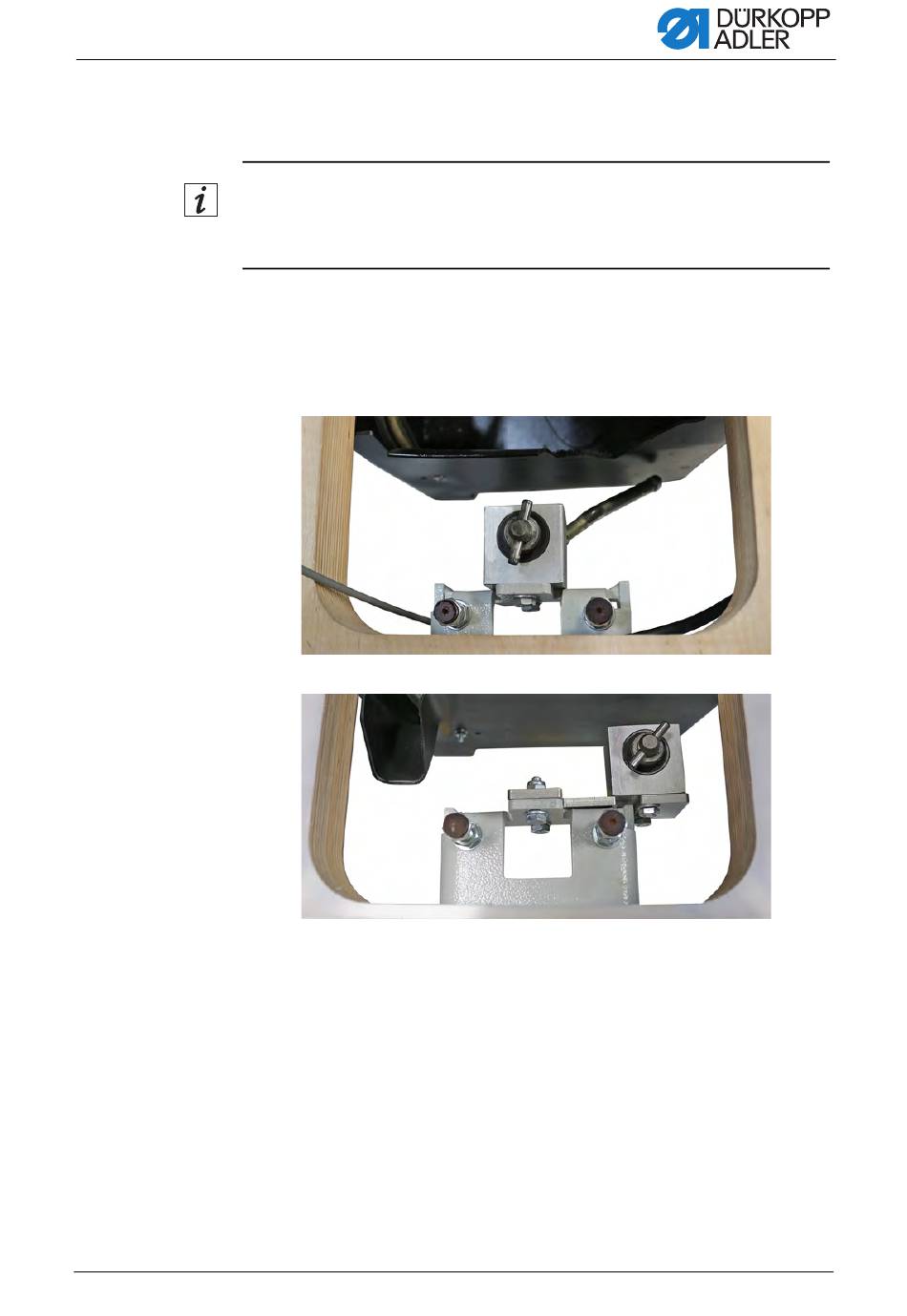

Fig. 6: Locking mechanism (1)
Check if the correct locking mechanism has been assembled. The correct
locking mechanism (part number 0911 400163) is seated on the right in
the tabletop cutout.
If the locking mechanism is seated in the center of the tabletop cutout,
assemble the correct locking mechanism.
Additional Instructions 911 - 00.0 - 05/2020
holder
old locking mechanism:
correct locking mechanism:
