Connect T3 components:
1) Connect the 6.8K resistor from T3(2) to the "bass" pot's cold lug, but do not solder at the cold lug
side, yet.
2) Connect the .047 µF cap from T3(1) to the "bass" pot's cold lug. Now solder at the "bass" pot's
cold lug side.
3) Connect the .1 µF cap from T3(1) to the "bass" pot's wiper lug, but do not solder at the wiper lug
side, yet.
4) Connect a short length of white wire (2.25") from the "bass" pot's wiper lug to the "treble" pot's
cold lug. Now solder at the "bass" pot's wiper lug.
5) Connect a 100K resistor from T3(1) to T4(5).
Connect T4 components:
1) Connect the 250 pF cap from T4(5) to the "treble" pot's hot lug.
2) Connect a 100K resistor from T4(5) to T4(4).
3) Connect a 22 µF 50V cap with negative end to T4(1) and positive end to T4(3).
4) Connect a 1.5K resistor from T4(1) to T4(3).
5) Connect a short length of white wire (2.25") from T4(5) to V1(1).
6) Connect a short length of white wire (2.25") from T4(3) to V1(3).
Connect T5 components:

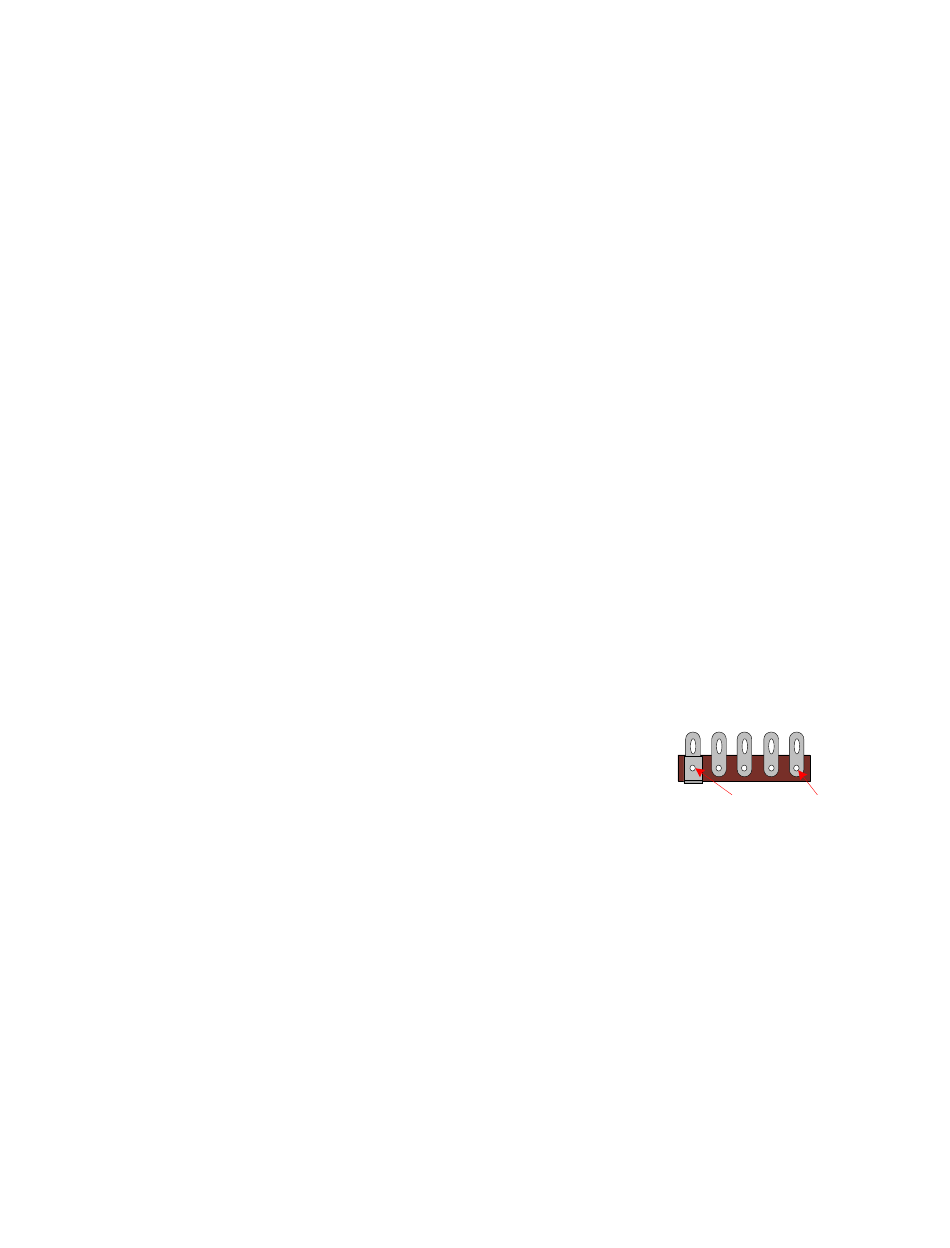

1) Connect a short length of white wire (2") from the T5(1) to T5(5). Use the lower terminal holes so
that the wire does not obstruct your mounting of other components.
2) Connect a 22 µF 50V cap with negative end to T5(5) and positive
end to V1(8), but do not solder the connection at V1(8), yet. lower terminal holes
3) Connect a 1.5K resistor from T5(5) to V1(8). Now solder the connection at V1(8).
4) Connect a 100K resistor from T5(2) to T5(3).
5) Connect a short length of white wire (1.5") from T5(3) to V1(6). Using the lower terminal hole of
T5(3) might make things easier.
6) Connect the .022 µF cap from T5(3) to T6(3).
Connect T6 components:
1) Connect the 1K 1W resistor from T6(5) to V2(9).
2) Connect the 5.6K resistor from T6(3) to V2(2).
3) Connect the 220K resistor from T6(3) to T6(1).
