SECTION 3 – Mounting of Rear Components

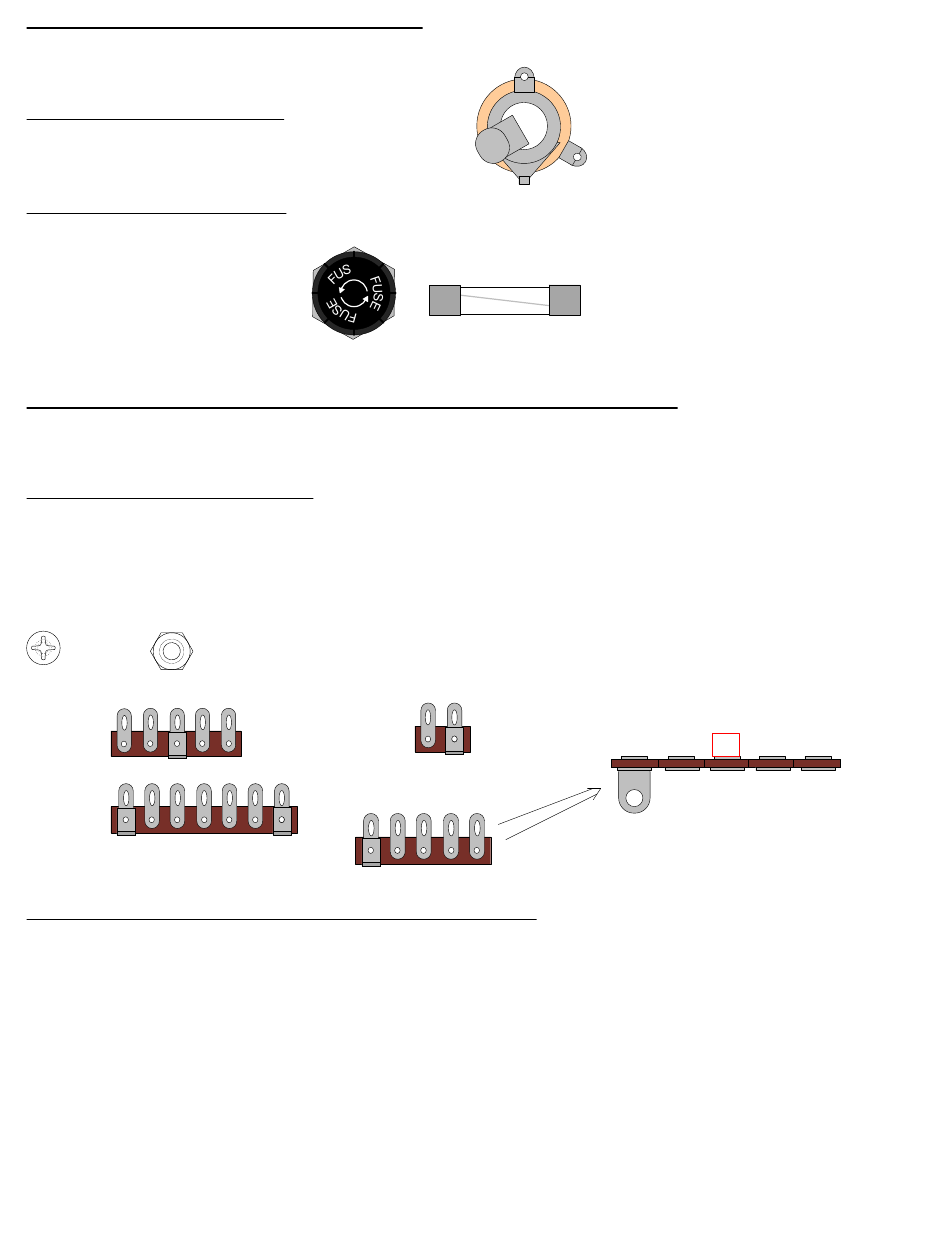

Please refer to Drawing 4.
Step 1 – Mount the Output Jack
Drawing 4 shows where to mount the output jack.
Step 2 – Mount the Fuse Holder
Drawing 4 shows where to mount the Fuse holder. You can also insert the 1A fast blow fuse at this time.
SECTION 4 – Mounting Internal Terminal Strips and Passive Components
Please refer to Drawings 5 & 6.
Step 1 – Mount the Terminal Strips
Drawing 5 shows what you should see when you flip the chassis box over so that you are looking inside and
viewing from the rear side with the terminal strips in place. The terminal strips are labeled T1 – T6. (You
will be mounting all 6 terminal strips in this step).
Use #6 hardware and Drawing 5 to mount the 6 terminal strips in the same orientation as in the drawing.
(7)
T1
T2
Step 2 – Solder Components to Their Terminal Strip Locations
Please see page 6 "Soldering Tips" if you are new to making solder connections.
Drawing 6 shows each passive circuit component and its respective location on the terminal strip. Be sure to
follow the same orientation of polarity as shown in the drawing for diodes and polarized electrolytic
capacitors.
These instructions will walk you through the mounting of each component so that no components
are missing. Unless noted otherwise, cut the component leads to a reasonable mounting length,
wrap the leads around their connection points and solder. Be sure to leave room on each terminal
for the mounting of future components. You can use Drawings 6 to 9 to anticipate what other
components and wires will be mounted to a particular location.
E
(7)
T3
T4, T5, T6
(1)
Note: Terminal strip terminals are numbered from left
to right with mounting bracket directed towards the
viewer and will be referred to with T6(3) meaning
terminal number 3 on "T6".
1
11
2 3 4 5
T6
