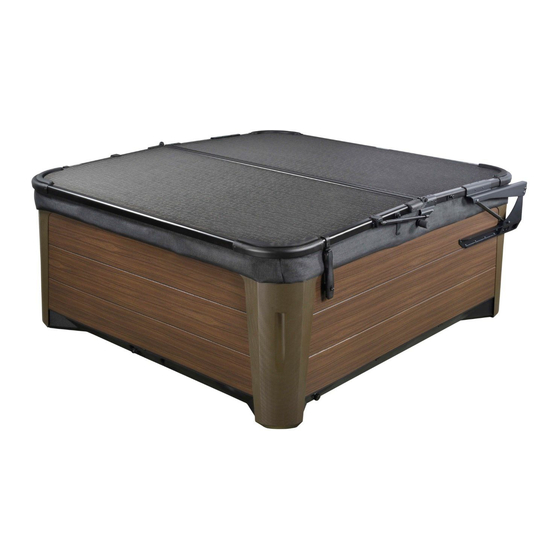

Leisure Concepts Smartop Upright 3.0 Installation Instructions

Upright 3.0
for Arc c Spas

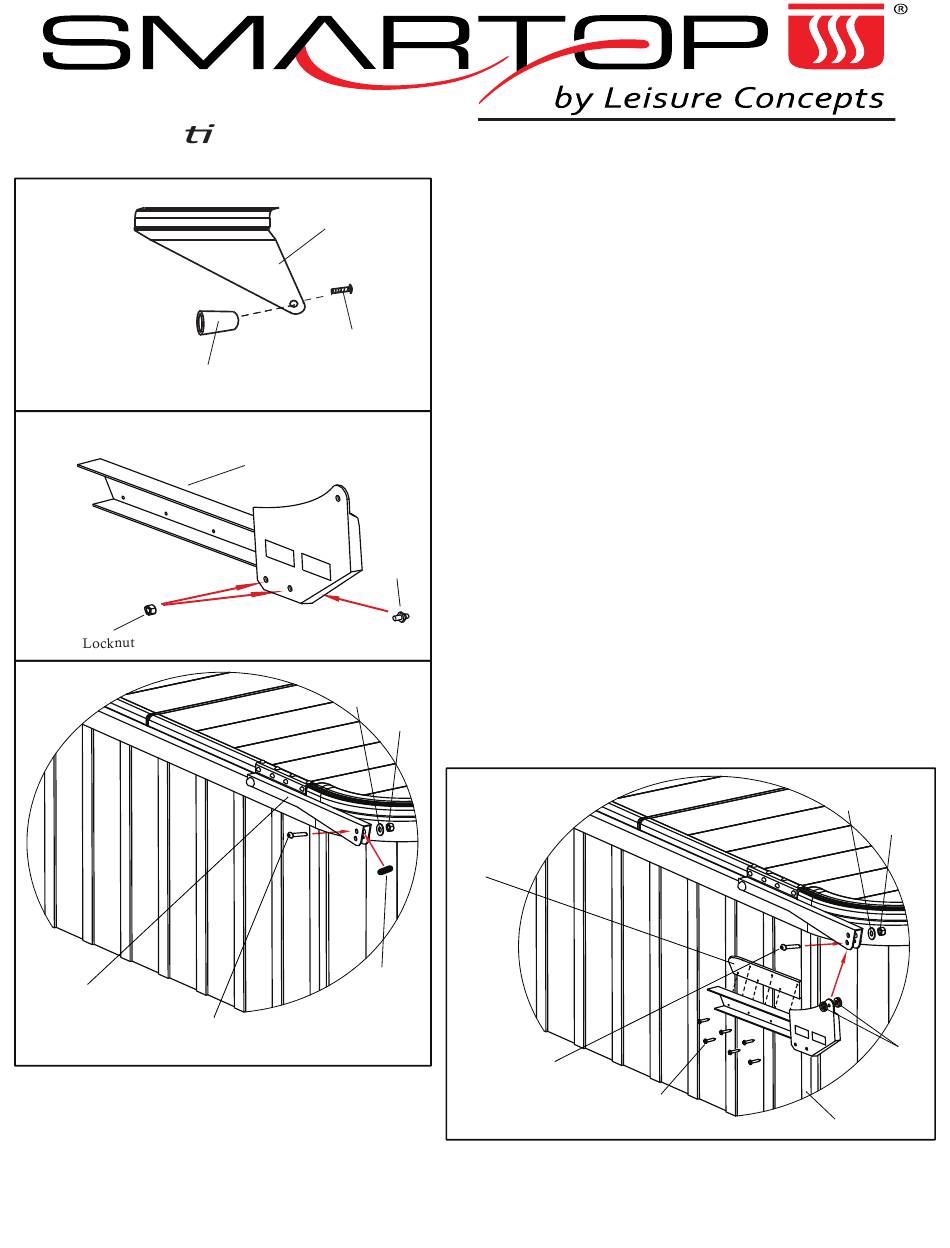

Figure 1
EAS Handle
Figure 2
C
Figure 3
Cover
Mounting
E
Bracket
Button Head
Socket Bolt
Smartop Upright 3.0-ARCTIC 200318
EAS Bracket
Button Head
Socket Bolt
K
J
Smartop
A
Cabinet
Mounting
Bracket
Ball stud
F
Washer
Locknut
Rubber
Stop
Installation Instructions - Updated as of 03/18/20
Step #1
Position the Smartop (in closed position) on the spa making sure that all four
corners are properly positioned and square on the spa.
Step #2
Attach the EAS handle to the EAS bracket using the supplied 5/16 x 1-1/4"
button head socket bolt (see Fig. 1).
Step #3
Note: The ball studs will be pre-installed in the hole closest to the back of the
bracket.
Step #4
Insert the 3/8 x 2" button head socket bolt into the top hole in the back of
the Smartop cover mounting bracket. Make sure to install the rubber stop
on the button head socket bolt once you insert the bolt through the outside
flange of the Smartop cover mounting bracket. Secure the 3/8 washer and
locknut to the opposite end of the button head socket bolt (see Fig. 3). Note:
Do not overtighten locknut.
Step #5
Attach the Smartop 3.0 cabinet mounting bracket to the Smartop 3.0 cover
B
mounting bracket, in the bottom hole, using the supplied 3/8 x 2" button
head socket bolt, washer and locknut (see Fig. 4). Note: Make sure to use the
plastic spacers on either sides of the Smartop cabinet mounting bracket where
the bolt goes through.
Step #6
While pressing downward on the Smartop cover mounting bracket, swing the
Smartop cabinet mounting bracket and plastic shim up until they are under-
neath the rail and attach to the spa cabinet using the supplied #10 x 2"
G
mounting screws (see Fig. 4). Note: For proper positioning of the cabinet
mounting bracket, make sure the plastic shim is butted up against the vertical
trim piece.
Figure 4
R
Shim
I
E
Button Head
Socket Bolt
L
Mounting
Screws
F
Washer
G
Locknut
H
Plastic
Spacers
Vertical
Trim Piece
Page 1
