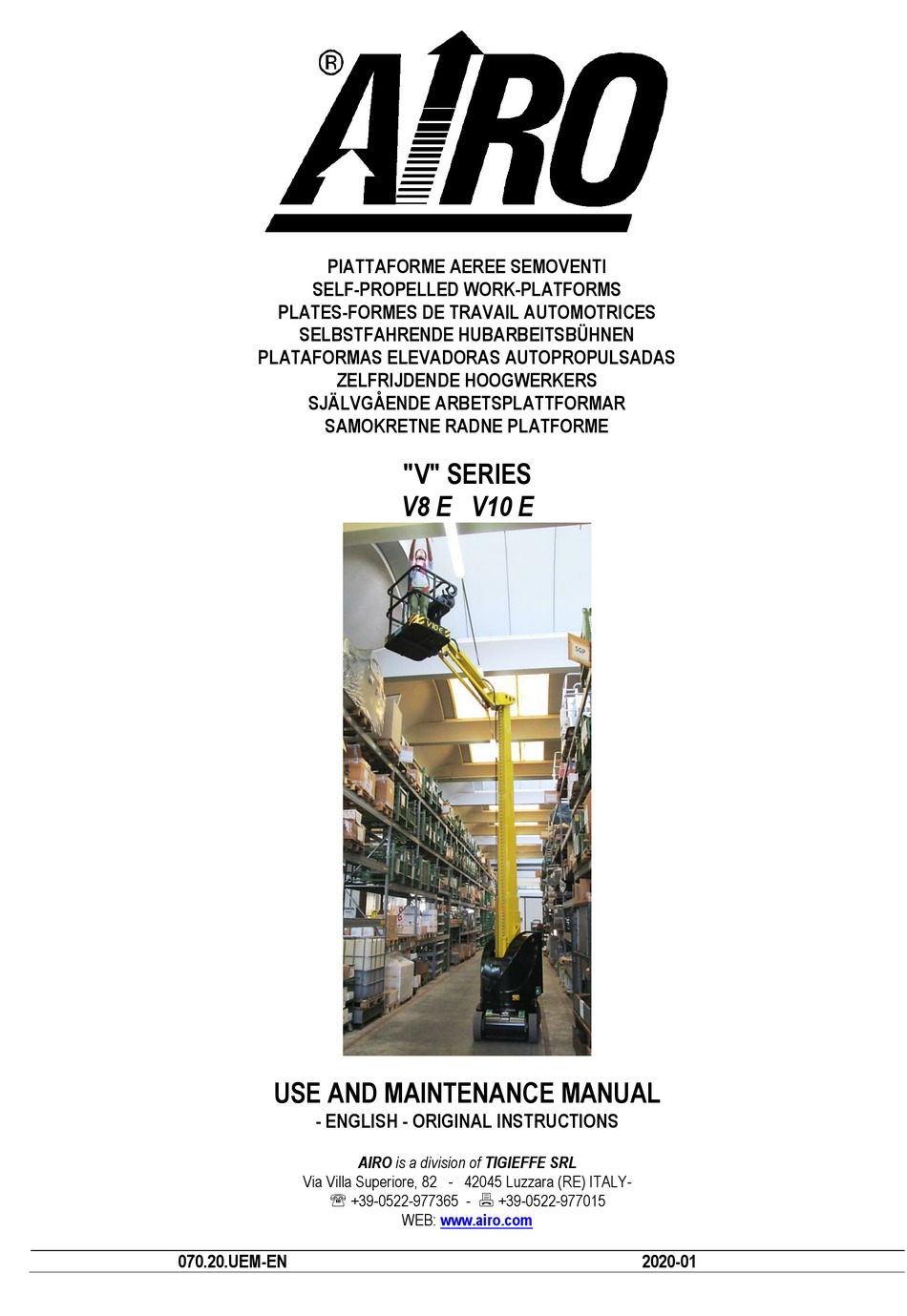

PIATTAFORME AEREE SEMOVENTI
SELF-PROPELLED WORK-PLATFORMS
PLATES-FORMES DE TRAVAIL AUTOMOTRICES
SELBSTFAHRENDE HUBARBEITSBÜHNEN
PLATAFORMAS ELEVADORAS AUTOPROPULSADAS
ZELFRIJDENDE HOOGWERKERS
SJÄLVGÅENDE ARBETSPLATTFORMAR
SAMOKRETNE RADNE PLATFORME
"V" SERIES
V8 E V10 E
USE AND MAINTENANCE MANUAL
- ENGLISH - ORIGINAL INSTRUCTIONS
AIRO is a division of TIGIEFFE SRL
Via Villa Superiore, 82 - 42045 Luzzara (RE) ITALY-
 +39-0522-977365 -
+39-0522-977015
WEB:
www.airo.com
070.20.UEM-EN
2020-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Airo V Series and is the answer not in the manual?

Questions and answers

Related Manuals for TIGIEFFE Airo V Series

Summary of Contents for TIGIEFFE Airo V Series

  • Page 1 SAMOKRETNE RADNE PLATFORME "V" SERIES V8 E V10 E USE AND MAINTENANCE MANUAL - ENGLISH - ORIGINAL INSTRUCTIONS AIRO is a division of TIGIEFFE SRL Via Villa Superiore, 82 - 42045 Luzzara (RE) ITALY-  +39-0522-977365 -  +39-0522-977015 WEB: www.airo.com...
  • Page 2 Revision date Description of revision 09-2014 • Manual issue. • 01-2015 CE conformity declaration updated. • Type of usable hydraulic oil updated. • Added indication for spare parts. They must be original or approved by the manufacturer of 10-2015 the machine in any way. •...

  • Page 3: Table Of Contents

    Tigieffe thanks you for purchasing a product of its range, and invites you to read this manual. Here you can find all the necessary information for a correct use of the purchased machine; therefore, you are advised to follow the instructions carefully and to read the manual thoroughly.
  • Page 4 5.1.3.3.4. Overload red warning light (ZD) ..........................31 5.2. Ground control panel and controllers........................32 5.2.1. On-off key and control panel selector (A)........................33 5.2.2. Emergency stop button (B) ............................33 5.2.3. Battery indicator / Hour meter / Display (C) ....................... 33 5.2.3.1.
  • Page 5 PLATES AND STICKERS .......................... 74 CHECK REGISTER ........................... 76 TRANSFERS OF OWNERSHIP ......................... 88 ELECTRIC DIAGRAM..........................93 HYDRAULIC DIAGRAM ..........................99 CONFORMITY DECLARATION......................101 Use and Maintenance Manual - Series V8 E V10 E Page 5...

  • Page 6: Introduction

    Therefore, the description of their components, as well as control and safety systems, may include parts not present on Your machine since supplied on request or not available. In order to keep pace with the technical development AIRO-Tigieffe s.r.l. reserves the right to modify the product and/or the use and maintenance manual at any time without updating the units already delivered.

  • Page 7: Further Periodical Checks

    Further periodical checks 1.1.2.2. Yearly checks are compulsory. In Italy the Aerial Platform owner must apply for a periodical check - by registered letter - to the local competent inspection board (ASL/USL or other qualified public or private services) at least twenty days before the expiry of the year from the last check.

  • Page 8: Leaving At Height

    Do not use the machine for purposes other than those for which it was designed, except after making a request and having obtained written permission in this sense from the manufacturer Leaving at height 1.3.1. The mobile elevating work platforms are not designed by taking into account the risks of the “leaving at height” because the only access position considered is when the platform is completely lowered.

  • Page 9: Control Panels

    1.5. Control panels The machine is equipped with two control panels: on the platform for normal use of the machine. ▪ ▪ on the turret (or ground) there are the controls of emergency for the recovery of the platform, the emergency stop button, a key-selector to select the control panel and to start the unit and an additional key-selector (FACTORY OVERRIDE) - protected against the non-permissible use for the emergency ground recovery of a trapped and/or unconscious operator.

  • Page 10: Machine Life, Demolition And Decommissioning

    1.7. Machine life, demolition and decommissioning The machine has been designed to last for 10 years in normal operating environments, if properly used and serviced. Within this period, the manufacturer must carry out a complete inspection/overhaul. If disposal of the unit is necessary, comply with current local regulations. In Italy, the demolition/decommissioning must be notified to the local ASL / USL or ARPA.

  • Page 11: Location Of Main Components

    1.9. Location of main components The picture shows the machine and its own components. 1) Control panel 2) Ground emergency controls 3) Controllers; 4) Hydraulic oil tank 5) Hydraulic block of control; 6) Pot-hole guards; 7) Electric pump 8) Electric drive motors with brake; 9) Turret rotation hydraulic motor;...

  • Page 12: Technical Features Of Standard Machines

    TECHNICAL FEATURES OF STANDARD MACHINES THE TECHNICAL FEATURES OF THE PRODUCTS IN THE FOLLOWING PAGES CAN BE MODIFIED WITHOUT PRIOR NOTICE 2.1. Model V8 E. V8 E Dimensions: Maximum working height 26’ 6” Max. platform height 20” Ground clearance - central area of the chassis 21.6”...
  • Page 13 Battery power Voltage and standard battery capacity - Deep Cycle 24 / 280 24 / 280 V/Ah V/Ah Total electrolyte quantity of standard battery 4 x 10.3 4 x 2.7 Standard battery weight 4 x 47 Voltage and optional battery capacity - Drive Battery 24 / 320 24 / 320 V/Ah...
  • Page 14 Use and Maintenance Manual - Series V8 E V10 E Page 14...

  • Page 15: Model V10 E

    2.2. Model V10 E. V10 E Dimensions: Maximum working height 9.86 32’ 4” Max. platform height 7.86 22’ 9” Ground clearance - central area of the chassis 0’ 2” Ground clearance - pot-hole area 0’ 1” Max. outreach from turntable centre 3.35 10’...
  • Page 16 Battery power Voltage and standard battery capacity - Deep Cycle 24 / 280 24 / 280 V/Ah V/Ah Total electrolyte quantity of standard battery 4 x 10.3 4 x 2.7 Standard battery weight 4 x 47 Voltage and optional battery capacity - Drive Battery 24 / 320 24 / 320 V/Ah...
  • Page 17 Use and Maintenance Manual - Series V8 E V10 E Page 17...

  • Page 18: Vibrations And Noise

    2.3. Vibrations and noise Noise tests have been carried out under the most unfavourable conditions to study the effects on the operator. The level of acoustic pressure weighed (A) at work places does not exceed 70dB(A) for each electrical model. For the models equipped with diesel motor generator, the level of acoustic pressure weighed (A) at work places does not exceed 106dB(A), the level of acoustic pressure at ground control panel does not exceed 85dB(A), the level of acoustic pressure at platform control panel does not exceed 78bD(A).

  • Page 19: Safety Precautions

    SAFETY PRECAUTIONS 3.1. Personal protective equipment (PPE) Always wear personal protective equipment according to current regulations concerning industrial health and safety (in particular, hard hat and safety shoes are COMPULSORY). It is the operator or safety manager’s responsibility to choose the personal protective equipment (PPE) depending on the activity to be carried out.

  • Page 20: Use Instructions

    3.3. Use instructions General 3.3.1. The electric and hydraulic circuits are provided with safety devices, calibrated and sealed by the manufacturer: DO NOT TAMPER WITH AND MODIFY THE CALIBRATION OF ANY COMPONENT OF THE ELECTRIC AND HYDRAULIC SYSTEMS. ▪ The machine must be used only in areas well lit up, checking that the ground is flat and firm. The machine may not be used if the lighting conditions are not sufficient.

  • Page 21: Operating Procedures

    Fig. 4 Operating procedures 3.3.3. The machine is equipped with a chassis inclination control system disabling lifting operations in case of unstable ▪ positioning. Working operations can be resumed only after placing the machine in a steady position. If the audible alarm and the red light on the platform control panel turn on, the machine is not correctly positioned (see paragraphs relevant to “Use instructions”).

  • Page 22: Wind Speed According To Beaufort Scale

    Wind speed according to Beaufort scale 3.3.4. You can use the table below for a simple assessment of the wind speed. We remember that the max. limit for each machine model is indicated in the table TECHNICAL FEATURES OF STANDARD MACHINES. The machines for which the max.

  • Page 23: Pressure Of The Machine On Ground And Load-Bearing Capacity Of Ground

    Pressure of the machine on ground and load-bearing capacity of ground 3.3.5. Before using the machine, the operator must make sure the floor is suitable for withstanding the specific loads and pressures on the ground with a certain safety margin. The following chart provides the parameters in play and two examples of calculation of the average pressure on the ground below the machine and max pressure underneath the wheels or outriggers (p1 and p2).

  • Page 24: High-Voltage Power Lines

    The table below shows the load-bearing capacity of the ground split up by ground type. Refer to the data contained in the specific tables of each model (chapter 2, TECHNICAL FEATURES OF STANDARD MACHINES) to obtain the figure relating to the max pressure on the ground caused by the single wheel. Using the machine is forbidden if the max pressure on the ground per wheel is above the load-bearing capacity of the specific type of ground on which the machine is to be used.

  • Page 25: Installation And Preliminary Checks

    INSTALLATION AND PRELIMINARY CHECKS The machine is supplied completely assembled, therefore it can perform all functions in full safety as provided for by the manufacturer. No preliminary operation is required. To unload the machine, follow the instructions in chapter “Handling and carrying”. Place the machine onto a firm ground and with a gradeability lower than the max.

  • Page 26: How To Use

    HOW TO USE Before using the machine read this chapter thoroughly. WARNING! Follow exclusively the instructions given in the next paragraphs and the safety rules described both hereafter and in the previous paragraphs. Read the next paragraphs carefully in order to properly understand the on/off procedures as well as all operations and their correct use.
  • Page 27 All movements are controlled by proportional joystick /levers; it is therefore possible to adjust movement speed by means of the relative controls. To avoid sudden shakes during movements, it is advisable to operate the proportional joystick controls gradually. For safety reasons, to operate the machine, it is necessary to press “dead-man” pedal M or “dead-man” button N at platform before operating the controls.

  • Page 28: Drive And Steering

    Drive and steering 5.1.1. Before carrying out any displacement operation, verify that no people are in proximity of the machine and in any case proceed with the utmost caution. IT IS FORBIDDEN to drive the machine when the platform is lifted unless the chassis is flat and steady with no holes and steps.

  • Page 29: Platform Positioning Movements

    Platform positioning movements 5.1.2. To carry out all movements other than drive, use proportional levers B, C, D. To achieve the movement, it is necessary to carry out the following operations in sequence: a) Press and hold down “dead-man” pedal M or press and release “dead-man”...

  • Page 30: Other Functions Of The Platform Control Panel

    Other functions of the platform control panel. 5.1.3. Manual horn 5.1.3.1. It warns that the machine is moving; it is manually operated by means of the press-button F. Emergency stop button 5.1.3.2. By pressing the red emergency STOP button E all control functions of the machine are stopped. Normal functions are enabled by rotating the button of 1/4 turn clockwise.

  • Page 31: Overload Red Warning Light (Zd)

    WARNING! The activation of this indicator together with the audible alarm warns of a dangerous situation since the machine or the platform have reached a dangerous inclination level for the machine stability. When the chassis inclination exceeds the allowed value, to prevent increasing the overturn risk, the operator on the platform is recommended to retract the telescopic boom first and to lower it as the last operation.

  • Page 32: Ground Control Panel And Controllers

    5.2. Ground control panel and controllers The controllers (administration devices and control functions of the machine) have been located inside the cowling in the turret, fixed at the base of the telescopic column. The ground control panel is located on the rotating turret (see paragraph "Location of main components") and is used to: ▪...

  • Page 33: On-Off Key And Control Panel Selector (A)

    ON-OFF key and control panel selector (ground/platform) Emergency STOP button Battery indicator / Hour meter/ Display Battery charger light TELESCOPIC COLUMN LIFTING/LOWERING lever JIB LIFTING/LOWERING lever TURRET ROTATION lever Key-selector for emergency FACTORY OVERRIDE Screwed and leaded door for emergency FACTORY OVERRIDE On-off key and control panel selector (A) 5.2.1.

  • Page 34: Display Messages

    Display messages 5.2.3.1. Any alarm and/or system error codes can be displayed in the following form: Example of error code: 03 A 22 The first 2 figures relate to the concerned device: 03 = MASTER controller 04 = SLAVE controller 08 = board on platform CAN TILLER 16 = MDI indicator.
  • Page 35 NO CAN MSG. CAN Bus Error Check that the controllers and boards on CAN Bus are correctly supplied. Check the wiring of CAN Bus connections on various devices. If there are no errors in the wiring, the internal transmission circuit on CAN BUS may have failed. In this case replace the controller or the board.
  • Page 36 PUMP VMN LOW Output voltage on pump lower A) If the problem occurs at startup (the line contactor LC is than required not closed yet), check: - Internal connections of the motor (ohmic continuity) - Cable connections of the motor power - If motor connection is OK, the problem is inside the controller which must be replaced.
  • Page 37 BRAKE RUN OUT Brake circuit error This alarm is displayed if the operation of the electric brakes of the drive motors was forced due to inconsistency between the drive speed value detected by the encoders and that required by the command (e.g.: control loss during drive highly inclined ground).
  • Page 38 LOGIC FAILURE #1 Error in logic: power supply Alarm displayed at start-up or in standby; in these cases, the undervoltage or overvoltage error is very likely due to undervoltage, then it is advisable to check: A) Descendant pulse of the key input signal (below the undervoltage threshold) due to external loads, such as the starting of DC/DC converters, relays, contactors or excitation of solenoids;...
  • Page 39 CHARGER ON Battery charger in operation The alarm is normally present when the system is switched mode on and the battery charger is in operation: all movements are disabled. Check that the NC mains contact, inside the battery charger, is closed and that the wiring for connecting the contact to the controller is correct.
  • Page 40 INCORRECT START Control sequence not correct The possible reasons for this alarm are (use the readings on the TESTER menu of the console to facilitate troubleshooting): A) A command already active at system’s start-up B) A command active before the dead-man pedal contact is closed;...
  • Page 41 JIB POT ERROR Jib potentiometer signal error Open the platform control panel and check the joystick wiring of the jib; If wiring is correct, connect the console, enter the ADJUSTMENTS menu and execute the procedure for the acquisition of the JIB control joystick signal: - bias position of Jib lifting (JIB UP MIN);...
  • Page 42 PUMP VACC RANGE Pump control out of range If the parameter EVP TYPE is set to ANALOG, acquire the values LOWER MIN and MAX LOWER once again. If the controller is in Combiacx configuration and the parameter PROPORTION. LIFT is set to ON, acquire also the values LIFT MIN and MAX LIFT once again.
  • Page 43 Table of wire disconnection tests: Use and Maintenance Manual - Series V8 E V10 E Page 43...

  • Page 44: Battery Charger Warning Light (D)

    Battery charger warning light (D) 5.2.4. They allow to check the correct operation of the battery charger and the state of charging of the battery. After plugging into the mains, the indicator starts flashing for a few seconds with red light, checking phase of the battery. Then the phases of battery charge are started and displayed in sequence from fixed light first red, then yellow and finally green, which indicates the end of charging.

  • Page 45: Platform Access

    5.3. Platform access The “access position” is the only one from which loading or unloading of persons and materials is allowed. The “access position” to the work platform is the completely lowered configuration. To get on the platform: get on the platform hanging on to the entry side rails. ▪...

  • Page 46: Machine Stop

    5.5. Machine stop Normal stop 5.5.1. During the normal use of the machine, releasing the controls or the dead-man pedal in the platform, the operation will be stopped. Stop occurs within a time limit set in the factory, which guarantees smooth braking. Emergency stop button 5.5.2.

  • Page 47: Emergency Controls

    5.6. Emergency controls In case of emergency caused by a fault of the control system, or by an accident occurred to an operator at height, it is possible to bring the work platform to the ground using these following systems. Each of these systems is available to the operator in the ground, who has been trained of the emergency functions and who has the keys of the machine.

  • Page 48: Socket For Electric Tool Connection (Optional)

    Solenoid valves and relevant movements: EV4 = Telescopic column lifting (not manually activated); ▪ ▪ EV5 = Telescopic column lowering - solenoid valve at the base of the cylinder lifting column. It is activated through the knob A; EV12 = Turret right rotation; ▪...

  • Page 49: Handling And Carrying

    HANDLING AND CARRYING 6.1. Handling To handle the machine in normal operating conditions, follow the instructions given in chapter "USE INSTRUCTIONS" under paragraph "Drive and steering”. When the platform is completely lowered (booms down, telescopic boom completely in and jib at a height between +10° and –70°...

  • Page 50: Carrying

    6.2. Carrying In order to carry the machine to the various working sites, follow the instructions given below. Considering the large dimensions of some models, before carrying, it is recommended to inquire about the overall dimension limits for road transport in force in your country. Before carrying the machine, turn it off and remove the keys from the control panels.

  • Page 51: Emergency Towing Of The Machine

    IT IS FORBIDDEN to lift up the machine by means of a lift truck, since there are no suitable positioning points of the forks. Once the machine has been placed on the vehicle platform fasten it by means of the same holes used for lifting and/or the four slots provided on the chassis and indicated with the symbol of the hook.

  • Page 52: Maintenance

    MAINTENANCE ▪ Always carry out maintenance operations with machine at a standstill position and after having removed the key from the control panel with the platform in rest position. The maintenance operations described below refer to a machine with ordinary working use. ▪...

  • Page 53: General Maintenance

    7.2. General maintenance The table below indicates the main maintenance operations and their frequency. The machine is equipped with a service hour-meter. Operation Frequency Screw tightening (see paragraph "Various adjustments") After the first 10 working hours Oil level check in hydraulic tank After the first 10 working hours Check of the battery state (charge and liquid level) Every day...

  • Page 54: Various Adjustments

    Various adjustments 7.2.1. Check the conditions of the following components and, if necessary, tighten after the first 10 working hours and, afterwards, at least once a year: 1) Wheel screws 2) drive geared motor fixing screws; 3) Steering cylinder fixing screws 4) fixing screws of steering hub pins;...

  • Page 55: Greasing

    Greasing 7.2.2. Grease all articulated joints equipped with greaser (or predisposition for greaser) at least every month. At least once a month, using a spatula or a brush, lubricate the telescopic column extension. Moreover, always remember to grease the articulated joints: After washing the machine.

  • Page 56: Hydraulic Circuit Oil Level Check And Change

    Hydraulic circuit oil level check and change 7.2.3. Check after the first 10 working hours and, afterwards, once a month the oil level in tank by means of the level dipstick of the filler cap (part. A in the picture aside) and make sure that it always lies between the max.

  • Page 57: Biodegradable Hydraulic Oil (Optional)

    Biodegradable hydraulic oil (Optional) 7.2.3.1 At the request of the customer, the machines can be supplied with biodegradable hydraulic oil compatible with the environment. Biodegradable hydraulic oil is completely synthetic, without zinc, non-polluting and highly efficient with saturated ester base, combined with special additives. The machines with biodegradable oil use the same component parts as standard machines, but the use of such type of oil is best taken into account from machine construction.

  • Page 58: Mix

    7.2.3.7 Mixtures with other biodegradable oils are not allowed. The remaining amount of mineral oil must not exceed 5% of total filling quantity as long as the mineral oil is suitable for the same use. Micro-filtration 7.2.3.8 When making the conversion on second-hand machines, always take into account the high dirt dissolution power of biodegradable oil.

  • Page 59: Hydraulic Filter Replacement

    Hydraulic filter replacement 7.2.4. All models are equipped with suction filter inside the tank. It is advisable to replace it at least every two years. To replace the filtering cartridge: ▪ Stop the machine by pressing the emergency stop button on the ground control panel. Disconnect the tubes from the tank.

  • Page 60: Drive Reduction Gear Oil Level Check And Change

    Drive reduction gear oil level check and change 7.2.5. The oil level should be checked at least once a year. Place the machine so as to have the two caps (A and B) in the position shown in the picture aside (in a few cases it is necessary to remove the driving wheels to access the a.m.

  • Page 61: Telescopic Column Sliding Blocks Clearance Adjustment

    Telescopic column sliding blocks clearance adjustment 7.2.6. Check the wear of the telescopic boom sliding blocks every year. The correct clearance between the blocks of the boom is 0,5-1 mm; in case of higher clearance by means of an additional calibrated thickness of 0,5 mm B.

  • Page 62: Pressure Relief Valve Operation Check

    Pressure relief valve operation check 7.2.7. The main pressure relief valve controls the maximum pressure of the hydraulic circuit. Normally, this valve does not require any adjustment, since it is calibrated at the factory before the machine is delivered. Calibration is required: ▪...
  • Page 63 The inclinometer does not require any adjustment since it is calibrated in the factory before the machine is delivered. This device controls the chassis inclination and when inclined over the allowed value: it disables lifting ▪ it disables drive when platform exceeds a given height (varying ▪...

  • Page 64: Adjustment Of The Overload Controller (Load Cell)

    Adjustment of the overload controller (load cell) 7.2.9. WARNING! Usually this device does need to be adjusted unless the device itself is replaced. The equipment necessary for the replacement and adjustment of this component is such that these operations should be carried out by skilled personnel. AS THIS OPERATION IS VERY IMPORTANT IT IS TO BE CARRIED OUT BY SKILLED TECHNICIANS ONLY.
  • Page 65 With platform completely lowered add to the rated load an ▪ overload of 25% of the nominal load. In this condition the red alarm light and the audible alarm turn on. If the platform is at a height from the ground higher than that ▪...

  • Page 66: Overload Controller By-Pass - Only For Emergency Operations

    AS THIS OPERATION IS VERY IMPORTANT IT IS TO BE CARRIED OUT BY SKILLED TECHNICIANS ONLY Overload controller by-pass – ONLY FOR EMERGENCY OPERATIONS 7.2.10. In case of fault and impossibility to calibrate the device, a by-pass of the system is possible by means of locking key switch (A) under the control panel.

  • Page 67: Operation Check Of M1 Microswitches

    Operation check of M1 microswitches 7.2.11. The lifting booms are controlled by microswitches: M1A at the base of telescopic column ▪ (N.2 microswitch; M1C on the Jib. ▪ Once a year check the working conditions of the microswitches M1. The M1A microswitch functions are the following: With platform outside the rest position (M1A activated):...

  • Page 68: Operation Check Of Dead-Man Pedal Safety System

    Operation check of dead-man pedal safety system 7.2.12. The platform dead-man pedal is for enabling the operation controls of the machine on the platform control panel. Check operation at least once a year. To check the “dead-man” PEDAL: ▪ Move the drive joystick forward and backward in sequence, WITHOUT PRESSING THE “DEAD-MAN” PEDAL. check that the machine does not perform any movement.

  • Page 69: Battery

    7.3. Battery The battery is one of the most important elements of the machine. It is recommended to keep it in an efficient condition to increase its useful life, to avoid faults and to reduce the management costs of the machine. General instructions for battery 7.3.1.

  • Page 70: Battery Maintenance

    Battery maintenance 7.3.2. For normal water operating conditions, water topping up is to be carried out every week. ▪ Top up using distilled or demineralized water. ▪ Top up after battery charging. The electrolyte level must be 5-7 mm higher than the splash guard level. ▪...
  • Page 71 To use the battery chargers, follow these procedures: connect the battery chargers by means of plug A to a current socket with the a.m. features ▪ ▪ check the connection state of the battery charger through led B. If it is on, connection has taken place and charging has started.

  • Page 72: Battery Charger: Fault Report

    Battery charger: fault report 7.3.4. The flashing LED on the battery charger indicator described in the previous paragraph indicates that a warning situation has occurred: WARNING PROBLEM SOLUTION No connection with the battery Red led constantly Connections with the battery Check the connections with the battery flashing inverted...

  • Page 73: Marks And Certifications

    MARKS AND CERTIFICATIONS The models of self-propelled aerial platform described in this manual were subject to the CE type test according to the Directive 2006/42/EC. The certification was issued by: Eurofins Product Testing Italy Srl - 0477 Via Cuorgné, 21 10156 –...

  • Page 74: Plates And Stickers

    PLATES AND STICKERS CODE DESCRIPTION QUANTITY 001.10.001 AIRO WARNINGS PLATE 001.10.024 AIRO SERIAL NUMBER PLATE 001.10.031 TOWING HOOK STICKER 001.10.057 GENERAL WARNINGS STICKER 001.10.059 WHEELS TIGHTENING STICKER 001.10.150 OIL TYPE STICKER “46” I_D_F_NL_B_G_PL 001.10.180 NEXT CHECK STICKER 001.10.243 “MAX. LOAD PER WHEEL" STICKER 001.10.259 IPAF EMERGENCY LOWERING STICKER 001.10.260...
  • Page 75 Use and Maintenance Manual - Series V8 E V10 E Page 75...

  • Page 76: Check Register

    10. CHECK REGISTER The check register is released to the user of the platform in conformance with annex 1 of Directive 2006/42/EC. This register is to be considered an integral part of the equipment and must accompany the machine for its entire life until its final disposal.
  • Page 77 REQUIRED PERIODIC INSPECTIONS BY THE REGULATORY AGENCY Date Observations Signature + Stamp Use and Maintenance Manual - Series V8 E V10 E Page 77...
  • Page 78 REQUIRED PERIODIC INSPECTIONS BY THE OWNER STRUCTURAL CHECK DESCRIPTION OF OPERATIONS TO BE PERFORMED Check the integrity of the guardrails; the harness anchoring points; state VISUAL CHECK of the lifting structure; any access ladders; rust; state of the tyres; oil leaks;...
  • Page 79 REQUIRED PERIODIC INSPECTIONS BY THE OWNER STRUCTURAL CHECK DESCRIPTION OF OPERATIONS TO BE PERFORMED VARIOUS ADJUSTMENTS See chapter 7.2.1 DATE REMARKS SIGNATURE + STAMP 1st YEAR 2nd YEAR 3rd YEAR 4th YEAR 5th YEAR 6th YEAR 7th YEAR 8th YEAR 9th YEAR 10th YEAR See chapter 7.2.2...
  • Page 80 REQUIRED PERIODIC INSPECTIONS BY THE OWNER CHECK DESCRIPTION OF OPERATIONS TO BE PERFORMED HYDRAULIC TANK AND DRIVE See chapter 7.2.3 and 7.2.5 REDUCTION GEARS OIL LEVEL Daily operation. It is not necessary to indicate its execution every day, but CHECK at least every year when the other operations are carried out.
  • Page 81 REQUIRED PERIODIC INSPECTIONS BY THE OWNER CHECK DESCRIPTION OF OPERATIONS TO BE PERFORMED CALIBRATION CHECK OF See chapter 7.2.7. PRESSURE RELIEF VALVE DATE REMARKS SIGNATURE + STAMP 1st YEAR 2nd YEAR 3rd YEAR 4th YEAR 5th YEAR 6th YEAR 7th YEAR 8th YEAR 9th YEAR 10th YEAR...
  • Page 82 REQUIRED PERIODIC INSPECTIONS BY THE OWNER CHECK DESCRIPTION OF OPERATIONS TO BE PERFORMED TOTAL OIL CHANGE IN HYDRAULIC TANK See chapter 7.2.3. (EVERY TWO YEARS) DATE REMARKS SIGNATURE + STAMP 2nd YEAR 4th YEAR 6th YEAR 8th YEAR 10th YEAR HYDRAULIC FILTER REPLACING See chapter 7.2.4.
  • Page 83 REQUIRED PERIODIC INSPECTIONS BY THE OWNER CHECK DESCRIPTION OF OPERATIONS TO BE PERFORMED TOTAL OI CHANGE IN DRIVE REDUCTION GEARS See chapter 7.2.5. (EVERY TWO YEARS) DATE REMARKS SIGNATURE + STAMP 2nd YEAR 4th YEAR 6th YEAR 8th YEAR 10th YEAR Use and Maintenance Manual - Series V8 E V10 E Page 83...
  • Page 84 REQUIRED PERIODIC INSPECTIONS BY THE OWNER SAFETY SYSTEM CHECK DESCRIPTION OF OPERATIONS TO BE PERFORMED OPERATION CHECK OF THE See chapter 7.2.8. TURRET INCLINOMETER DATE REMARKS SIGNATURE + STAMP 1st YEAR 2nd YEAR 3rd YEAR 4th YEAR 5th YEAR 6th YEAR 7th YEAR 8th YEAR 9th YEAR...
  • Page 85 REQUIRED PERIODIC INSPECTIONS BY THE OWNER SAFETY SYSTEM CHECK DESCRIPTION OF OPERATIONS TO BE PERFORMED OPERATION CHECK See chapter 7.2.11 MICROSWITCHES M1 DATE REMARKS SIGNATURE + STAMP 1st YEAR 2nd YEAR 3rd YEAR 4th YEAR 5th YEAR 6th YEAR 7th YEAR 8th YEAR 9th YEAR 10th YEAR...
  • Page 86 REQUIRED PERIODIC INSPECTIONS BY THE OWNER See Chapter 9. Check the legibility of the aluminium plate on the platform where the main instructions are summarised; that the capacity stickers are STICKERS AND PLATES CHECK on the platform and that they are legible; that the stickers on the ground and platform controls are legible.
  • Page 87 REQUIRED PERIODIC INSPECTIONS BY THE OWNER CHECK OF EMERGENCY DEVICES DESCRIPTION OF OPERATIONS TO BE PERFORMED MANUAL EMERGENCY LOWERING See chapter 5.6 CHECK DATE REMARKS SIGNATURE + STAMP 1st YEAR 2nd YEAR 3rd YEAR 4th YEAR 5th YEAR 6th YEAR 7th YEAR 8th YEAR 9th YEAR...

  • Page 88: Transfers Of Ownership

    COMPANY DATE MODEL SERIAL NUMBER DELIVERY DATE AIRO / Tigieffe S.r.l. SUBSEQUENT TRANSFERS OF OWNERSHIP COMPANY DATE We affirm that, as of the date quoted above, the technical, dimensional and functional features of this machine were in conformance with what was originally required and that any changes have been recorded in this Register.
  • Page 89 SUBSEQUENT TRANSFERS OF OWNERSHIP COMPANY DATE We affirm that, as of the date quoted above, the technical, dimensional and functional features of this machine were in conformance with what was originally required and that any changes have been recorded in this Register. THE SELLER THE PURCHASER SUBSEQUENT TRANSFERS OF OWNERSHIP...
  • Page 90 IMPORTANT BREAKDOWNS DATE DESCRIPTION OF BREAKDOWN SOLUTION SPARE PARTS USED DESCRIPTION CODE QUANTITY SERVICE SAFETY MANAGER DATE DESCRIPTION OF BREAKDOWN SOLUTION SPARE PARTS USED DESCRIPTION CODE QUANTITY SERVICE SAFETY MANAGER Use and Maintenance Manual - Series V8 E V10 E Page 90...
  • Page 91 IMPORTANT BREAKDOWNS DATE DESCRIPTION OF BREAKDOWN SOLUTION SPARE PARTS USED DESCRIPTION CODE QUANTITY SERVICE SAFETY MANAGER DATE DESCRIPTION OF BREAKDOWN SOLUTION SPARE PARTS USED DESCRIPTION CODE QUANTITY SERVICE SAFETY MANAGER Use and Maintenance Manual - Series V8 E V10 E Page 91...
  • Page 92 IMPORTANT BREAKDOWNS DATE DESCRIPTION OF BREAKDOWN SOLUTION SPARE PARTS USED DESCRIPTION CODE QUANTITY SERVICE SAFETY MANAGER DATE DESCRIPTION OF BREAKDOWN SOLUTION SPARE PARTS USED DESCRIPTION CODE QUANTITY SERVICE SAFETY MANAGER Use and Maintenance Manual - Series V8 E V10 E Page 92...

  • Page 93: Electric Diagram

    12. ELECTRIC DIAGRAM V8 E V10 E SYMB. DESCRIPTION Pag-Col. 1-09/11 UXILIARY CONTACTOR 2-26 ROUND AUDIBLE ALARM 4-62/63 LATFORM AUDIBLE ALARM 1-02/04 ATTERY CHARGER 1-05/06 ATTERY 4-68 VERLOAD CONTROLLER BY PASS SELECTOR 1-08/09 LECTRIC PUMP 1-17/18 OLUMN LIFTING SOLENOID VALVE 1-18 OLUMN LOWERING SOLENOID VALVE 1-17/18...
  • Page 94 Use and Maintenance Manual - Series V8 E V10 E Page 94...
  • Page 95 Use and Maintenance Manual - Series V8 E V10 E Page 95...
  • Page 96 Use and Maintenance Manual - Series V8 E V10 E Page 96...
  • Page 97 Use and Maintenance Manual - Series V8 E V10 E Page 97...
  • Page 98 Use and Maintenance Manual - Series V8 E V10 E Page 98...

  • Page 99: Hydraulic Diagram

    13. HYDRAULIC DIAGRAM V8 E V10 E N°070.07.001 OIL TANK EMERGENCY OPERATION HAND PUMP QUICK COUPLING HOSE REEL TURRET ROTATION ROTATING TABLE TURRET ROTATION HYDRAULIC MOTOR STEERING CYLINDER LOWERING CONTROL INTEGRATED ASSEMBLY - COLUMN TELESCOPIC CYLINDER - COLUMN JIB CYLINDER ELECTROPUMP SUCTION FILTER LOWERING CONTROL INTEGRATED ASSEMBLY - JIB...
  • Page 100 Use and Maintenance Manual - Series V8 E V10 E Page 100...

  • Page 101: Conformity Declaration

    Originalerklärung Declaración Original Оригинальнaя декларация Noi - We - Nous - Wir – Nosotros- мы Tigieffe S.r.l. - Via Villa Superiore N.° 82 - Luzzara (Reggio Emilia) - ITALIA Dichiariamo sotto la Declare under Declarons sous notre Erklaren hiermit unter...
  • Page 102 Originalerklärung Declaración Original Оригинальнaя декларация Noi - We - Nous - Wir – Nosotros- мы Tigieffe S.r.l. - Via Villa Superiore N.° 82 - Luzzara (Reggio Emilia) - ITALIA Dichiariamo sotto la Declare under Declarons sous notre Erklaren hiermit unter...
  • Page 103 TIGIEFFE S.r.l. a socio unico Via Villa Superiore, 82 - 42045 Luzzara (RE) ITALIA-  +39-0522-977365 -  +39-0522-977015 WEB: www.airo.com – e-mail: info@airo.com  Use and Maintenance Manual - Series V8 E V10 E Page 103...
