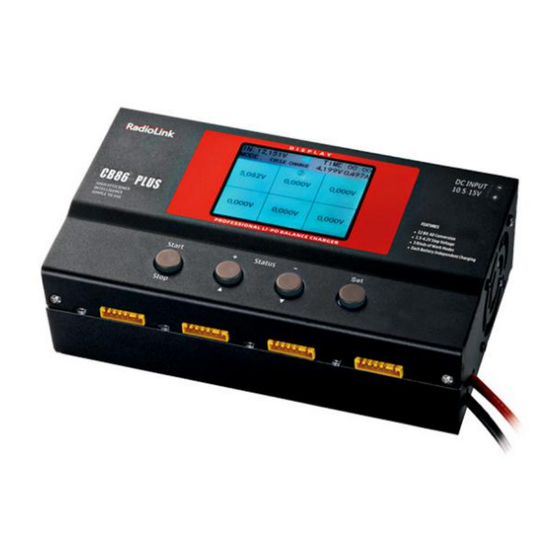

RadioLink CB86-PLUS User Manual

Lithium battery balance charger
Hide thumbs Also See for CB86-PLUS:
Table of Contents

Advertisement

Quick Links

RadioLink Electronic Ltd
www.radiolink.com
Lithium Battery Balance Charger
CB86-PLUS
User Manual
Adaptable to
Lithium Iron Battery and High Voltage Lithium Battery
* Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to
download the latest version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB86-PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for RadioLink CB86-PLUS

Summary of Contents for RadioLink CB86-PLUS

  • Page 1 Lithium Battery Balance Charger CB86-PLUS User Manual Adaptable to Lithium Iron Battery and High Voltage Lithium Battery * Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to download the latest version.
  • Page 2 2. PM us on our Facebook page or leave comments on our Youtube page 3. If the product is purchased from the local distributor, you can also ask them for support and repair as prefer. All manuals and firmwares are available on RadioLink official website www.radiolink.com and more tutorials are uploaded.
  • Page 3 Copyright @ 2016 Shenzhen Radiolink Electronic, Co., Ltd. All rights reserved. Without written consent by Shenzhen Radiolink Electronic Co., Ltd, any units or individual extract and copy parts or entire contents of this manual, and transmission in any form is illegal and strictly prohibited.

  • Page 4: Table Of Contents

    RadioLink Electronic Ltd www.radiolink.com CONTENT Chapter 1 CB86PLUS System............................1 1.1 Specification ................................. 1 1.2 Operation ................................1 1.2.1 Connect to Power Supply......................... 1 1.2.2 Battery Connection............................ 1 1.3 Functions ................................3 1.3.1 Home Screen.............................. 3 1.3.2 Buttons.................................4 Chapter 2 Working Mode..............................5 2.1 Cycle Charge................................5...

  • Page 5: Chapter 1 Cb86Plus System

    RadioLink Electronic Ltd www.radiolink.com Chapter 1 CB86PLUS System 1.1 Specification Input Voltage: Voltage range 10.5-15V Note There will be warning if input power is over 15V or less than 10.5V. Fans will auto-start when the temperature is over 48C°. Voice Indicator: ON/OFF...
  • Page 6 RadioLink Electronic Ltd www.radiolink.com CB86PLUS has eight charging ports, supporting max eight pieces batteries of six cells charged at one time.12 cells batteries NOT supported. To charge a 12-cell battery, it should be divided into two separate 6 cells to charge without any external electrical connection.

  • Page 7: Functions

    RadioLink Electronic Ltd www.radiolink.com (4) 1 piece of 4S + 1 piece of 2S (5) 6 piece of 1S 1.3 Functions 1.3.1 Home Screen Press the key SET，set the working mode as CYCLE CHARGE or DISCHARGE or STORAGE. Then press the key“+/▲”or“-/▼” to set (dis)charge voltage and current value.

  • Page 8: Buttons

    RadioLink Electronic Ltd www.radiolink.com Battery Capacity Charge Current Charge Voltage Charging Time Needed 500mAh 0.5A 4.2V 80 minutes 1000mAh 1.0A 4.2V 80 minutes 2200mAh 2.2A 4.2V 80 minutes 1.3.2 Buttons Sound Status Set Current Working Mode Input Voltage Set Voltage...

  • Page 9: Chapter 2 Working Mode

    RadioLink Electronic Ltd www.radiolink.com to 8) to work first. Then press SET for next option. Working Mode Setup When the charging stops, press SET to choose FUNCTION, press “+/▲” or“-/▼” to select preferred Mode: CYCLE CHARGE, DISCHARGE, STORAGE, and then press SET for next option.

  • Page 10: Discharge

    RadioLink Electronic Ltd www.radiolink.com Each square represents cell charging situation to the corresponding port Initial voltage when (dis)charging cell Internal resistance of the cell Current voltage of the cell Charged power of the cell 2.2 DISCHARGE The discharged current of CB86PLUS is fixed as 1.05A. The voltage can be customized and the charger will discharge to the set voltage.

  • Page 11: Storage

    RadioLink Electronic Ltd www.radiolink.com Set cut-off value discharging Fixed discharging voltage current Each square represents cell discharging situation to the corresponding port 2.3 STORAGE Besides (dis)charge mode, STORAGE working mode is also available.If batteries are kept unused for a long time, this mode can be used to (dis)charge them to the best storage status.
