  • Page 1 Machine configuration manual Vibratory plate DPU 130Le 08.2011 0217734en / 004...
  • Page 2 Manufacturer Wacker Neuson Produktion GmbH & Co. KG Preußenstraße 41 80809 München www.wackerneuson.com Tel.: +49-(0)89-354 02-0 Fax: +49-(0)89-354 02-390 Translation of the original operator's manual in German...

  • Page 3: Table Of Contents

    Foreword ........................4 Introduction ....................... 5 Means of representation for this operator's manual............5 Wacker Neuson representative..................6 Using the configuration menu ................. 7 Opening the configuration menu and changing settings ..........8 Changing from numerical code display to language display ........16 Troubleshooting ......................

  • Page 4: Foreword

    Wacker Neuson. Any type of reproduction, distribution or storage on data media of any type and form not authorized by Wacker Neuson represents an infringement of copyright and will be prosecuted. Machine configuration manual...

  • Page 5: Introduction

    2 Introduction Introduction Means of representation for this operator's manual Warning symbols This operator's manual contains safety information of the categories: DANGER, WARNING, CAUTION, NOTICE. They should be followed to prevent danger to life and limb of the operator or damage to equipment and exclude improper service.

  • Page 6: Wacker Neuson Representative

    This symbol is used for lists. Wacker Neuson representative Depending on your country, your Wacker Neuson representative is your Wacker Neuson service, your Wacker Neuson affiliate or your Wacker Neuson dealer. You can find the addresses in the Internet at www.wackerneuson.com.

  • Page 7: Using The Configuration Menu

    DPU 130 3 Using the configuration menu Using the configuration menu The machine has a machine configuration system, with which you can adjust certain of the machine's settings to meet your requirements: Item Designation Configuration menu Remote control Settings options in the configuration menu In the configuration menu on the display screen, you can adjust the following machine settings: Change setup PIN.

  • Page 8: Opening The Configuration Menu And Changing Settings

    3 Using the configuration menu DPU 130 Opening the configuration menu and changing settings CAUTION Unintentional changing of settings. If you select Setup Exit, the changed settings are always saved. If you accidentally changed settings and you do not want to save them, switch off the machine with the emergency stop switch.

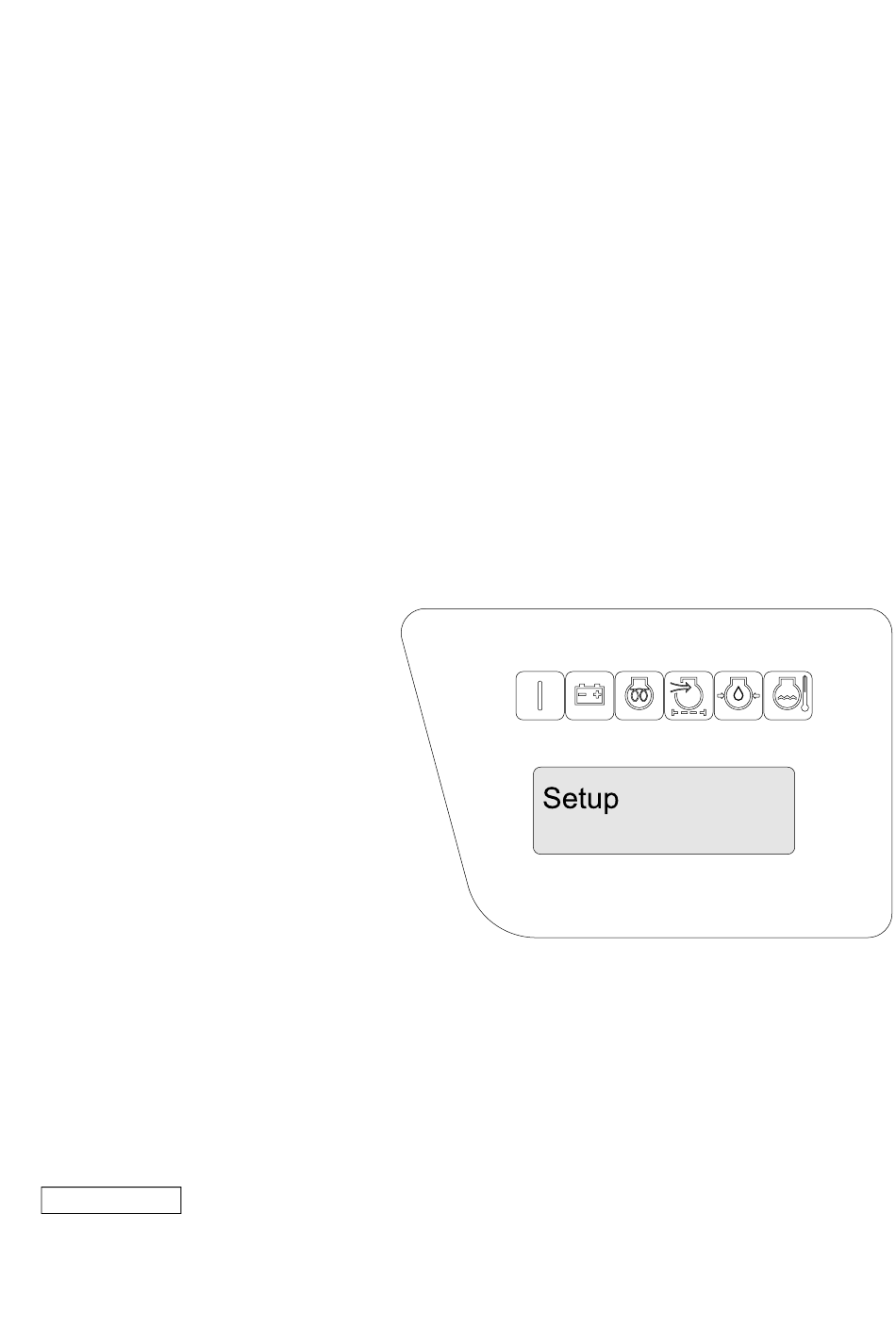

  • Page 9 DPU 130 3 Using the configuration menu After approx. 2 seconds the following text appears on the display: Setup-PIN Enter PIN 4. If the following text appears on the display, enter the setup PIN using the remote control and then press the ON/OFF switch on the machine. Enter PIN 0000 Push the left control lever on the remote control forward or backward to select...
  • Page 10 3 Using the configuration menu DPU 130 Changing the setup PIN The setup PIN secures access to the configuration menu. You can change the factory default setup PIN. Note: Never deactivate the setup PIN because otherwise the configuration menu is not protected against unauthorized changes. 1.
  • Page 11 DPU 130 3 Using the configuration menu Changing the PIN You can set a PIN that will protect the machine from unauthorized operation. After activating the machine, the user must enter the PIN with the remote control. 1. Press the ON/OFF switch on the machine until the following text appears on the display: Setup 2.
  • Page 12 3 Using the configuration menu DPU 130 Setting the turn-off time You can select the amount of time after which the machine automatically deactivates if it does not receive any more commands from the remote control. 1. Press the ON/OFF switch on the machine until the following text appears on the display: Setup Turn-off time...
  • Page 13 DPU 130 3 Using the configuration menu Setting the language You can choose the language in which information will be shown on the display screen. 1. Press the ON/OFF switch on the machine until the following text appears on the display screen: Setup Select language 2.
  • Page 14 3 Using the configuration menu DPU 130 Setting the overload sensor The machine's overload sensor detects when you are operating the machine on hard ground that cannot be further compressed. You can determine how the machine should react to overload in order to protect it from damage. 1.
  • Page 15 DPU 130 3 Using the configuration menu Exiting the configuration menu and saving your settings 1. Press the ON/OFF switch on the machine until the following text appears on the display screen: Setup Exit After approx. 2 seconds the changed settings are saved and the configuration menu is exited.

  • Page 16: Changing From Numerical Code Display To Language Display

    3 Using the configuration menu DPU 130 Changing from numerical code display to language display Note: The meaning of the numerical codes is given in the appendix of the operator's manual. The following steps are necessary to switch from numerical code display back to language display: 1.
  • Page 17 DPU 130 3 Using the configuration menu Language Value German (factory default setting for EU machines) English (factory default setting for US machines) French Spanish Numerical code display (no language) Language-neutral display solely using numerical code. Use this setting if the user does not understand the languages listed above.

  • Page 18: Troubleshooting

    4 Troubleshooting DPU 130 Troubleshooting Potential faults, their causes and remedies can be found in the following table. Malfunction Cause Remedy Configuration menu cannot be Machine has not been Activate machine and wait until called. activated. the display screen shows the hours of operation.

  • Page 19: Pin Data

    If you have forgotten the PIN, you can also unlock the machine with the setup PIN. However, if you have forgotten both the PIN and the setup PIN, it will no longer be possible to unlock the machine; in this case, seek the assistance of the Wacker Neuson representative. Machine configuration manual...
  • Page 20 5 PIN data DPU 130 Machine configuration manual...
