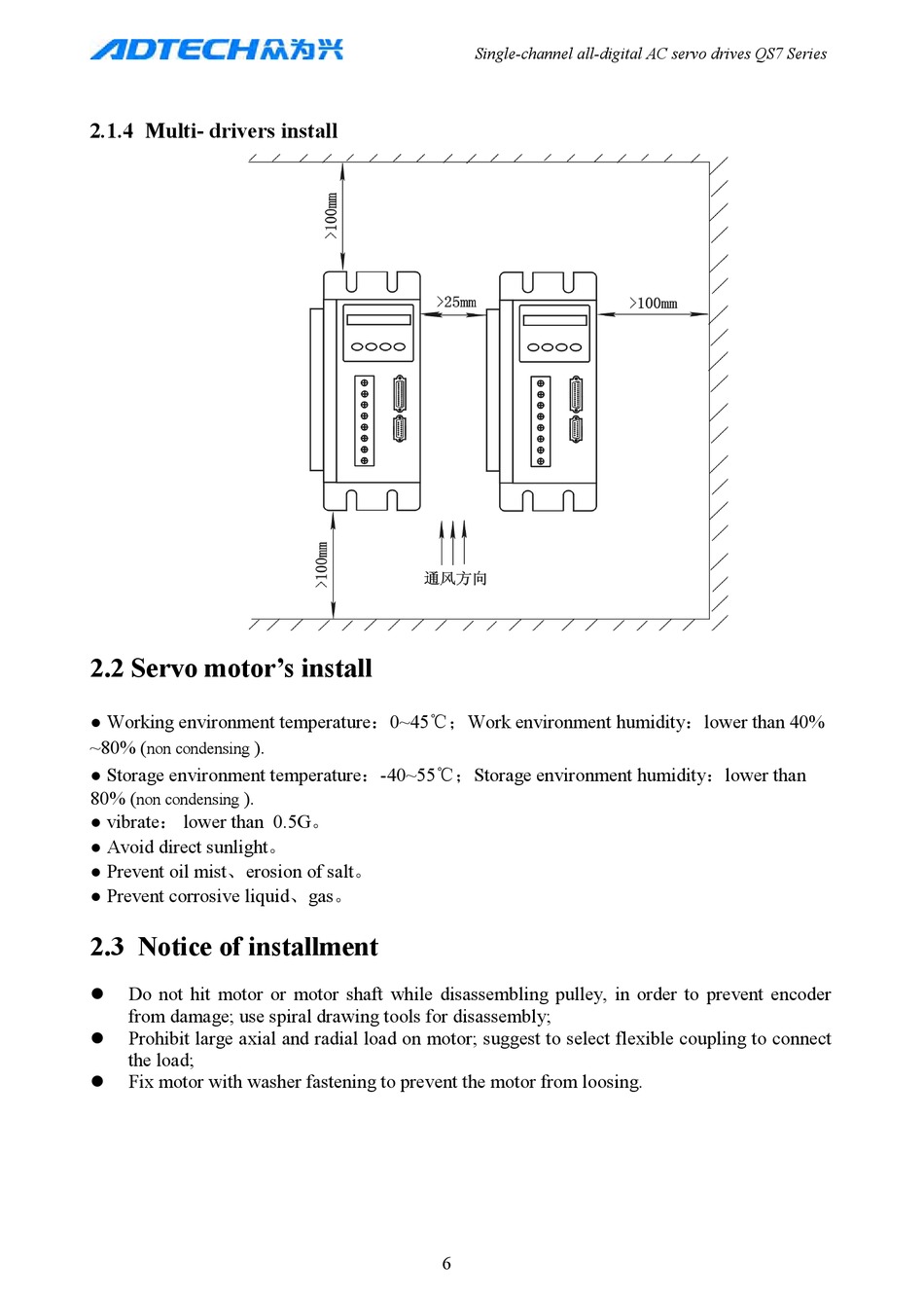

2.1.4 Multi- drivers install

2.2 Servo motor's install

● Working environment temperature：0~45℃；Work environment humidity：lower than 40%
~80% ( ).
non condensing
● Storage environment temperature：-40~55℃；Storage environment humidity：lower than
80% ( ).
non condensing
● vibrate： lower than 0.5G。
● Avoid direct sunlight。
● Prevent oil mist、erosion of salt。
● Prevent corrosive liquid、gas。

2.3 Notice of installment


Do not hit motor or motor shaft while disassembling pulley, in order to prevent encoder
from damage; use spiral drawing tools for disassembly;

Prohibit large axial and radial load on motor; suggest to select flexible coupling to connect
the load;

Fix motor with washer fastening to prevent the motor from loosing.
