Installation - continued

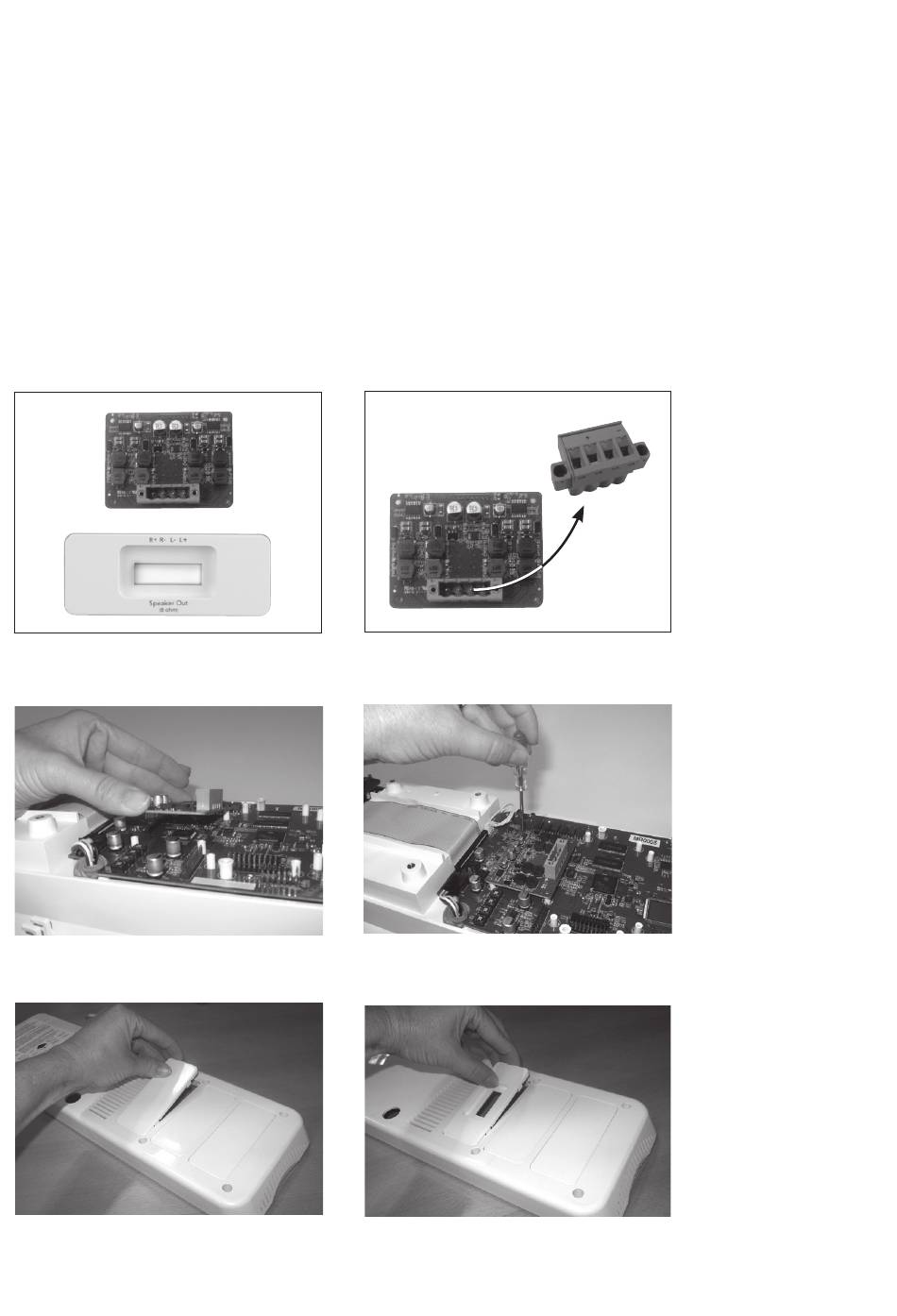

4. R emove the module and access panel from the packaging. (See Image 4)
5. Remove terminal block from the module. (See Image 5)
6. C onnect the 10 pins on the Page Override module to the 10-pin connector on the main Tower PCB.
Make sure the module board is seated all the way down. (See Image 6)
7. A ttach the board to the main Tower PCB using the four included screws. (See Image 7)
8. R emove the access panel cover from the back panel and replace with the Speaker Expansion module
access panel. (See Image 8 & 9)
9. Replace the back panel and screws.
10. T o connect speakers, refer to the Juno Installation guide
Image 4
Image 6
Image 8
Image 5
Image 7
Image 9
821-5082-101/Rev B 1112
