ITR-01 Speaker Expansion Module
Installer Guide
General Safety Precautions
• D isconnect all electronics from the Juno Tower during
installation of this module
• D o not short wires between speakers and this module
• D o not install or use the module near water or heat sources
• P rotect all cables from wear and damage from staples, foot
traffic, doors, and other hazards
• Use only accessories specified by FrontRow
• R efer installation and service to qualified personnel
• Follow all safety guidelines when using ladders
• O bserve all applicable building, electrical, and fire codes when
installing any electrical equipment
ESD Warning
The Juno Tower and/or expansion modules can be
damaged by electrostatic discharge (ESD). When
handling, care must be taken so that the devices are
not damaged. Damage due to inappropriate handling is not
covered by the warranty.
The following precautions must be taken when installing the
expansion modules:
• U se a conductive wrist strap attached to a good earth ground.
• A lways disconnect the power to the Juno from the power outlet.
• A lways discharge yourself by touching the grounded bare
metal surface or approved anti-static mat before picking up
an ESD-sensitive electronic component.
• U se an anti-static mat to cover your work surface.
You will need the following items to install this module:
• E nough speaker wire to connect between the external
speakers and the installed module. Be sure to use
plenum-rated wire if it will pass through a plenum space.
• #1 Phillips and small slotted screwdriver
Installation
1. U nplug the Juno Tower from the power outlet

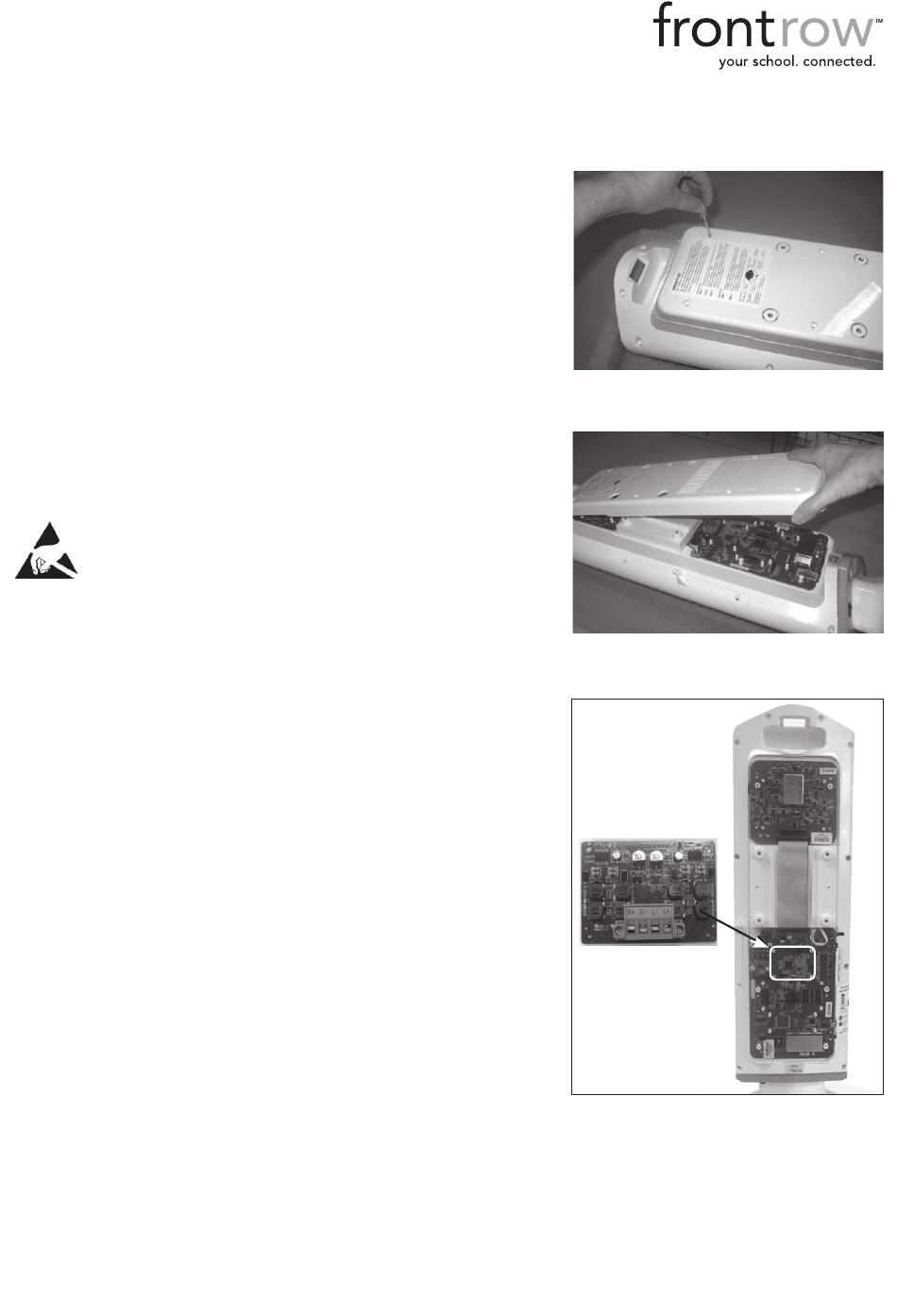

2. L ay the Juno Tower down on a flat surface with the back of the
Tower facing up. Remove the 8 screws that attach the back panel
to the case back and remove the back panel (See Image 1 & 2)
3. L ocate the area on the lower PCB where the module will be
installed (See Image 3)
Image 1
Image 2
Image 3
Advertisement
Table of Contents
Related Manuals for FrontRow ITR-01
Summary of Contents for FrontRow ITR-01
- Page 1 ITR-01 Speaker Expansion Module Installer Guide General Safety Precautions Image 1 • D isconnect all electronics from the Juno Tower during installation of this module • D o not short wires between speakers and this module • D o not install or use the module near water or heat sources • P rotect all cables from wear and damage from staples, foot traffic, doors, and other hazards • Use only accessories specified by FrontRow • R efer installation and service to qualified personnel • Follow all safety guidelines when using ladders Image 2 • O bserve all applicable building, electrical, and fire codes when...
- Page 2 Installation - continued 4. R emove the module and access panel from the packaging. (See Image 4) 5. Remove terminal block from the module. (See Image 5) 6. C onnect the 10 pins on the Page Override module to the 10-pin connector on the main Tower PCB. Make sure the module board is seated all the way down. (See Image 6) 7. A ttach the board to the main Tower PCB using the four included screws. (See Image 7) 8. R emove the access panel cover from the back panel and replace with the Speaker Expansion module access panel. (See Image 8 & 9) 9. Replace the back panel and screws. 10. T o connect speakers, refer to the Juno Installation guide Image 4 Image 5 Image 6...
