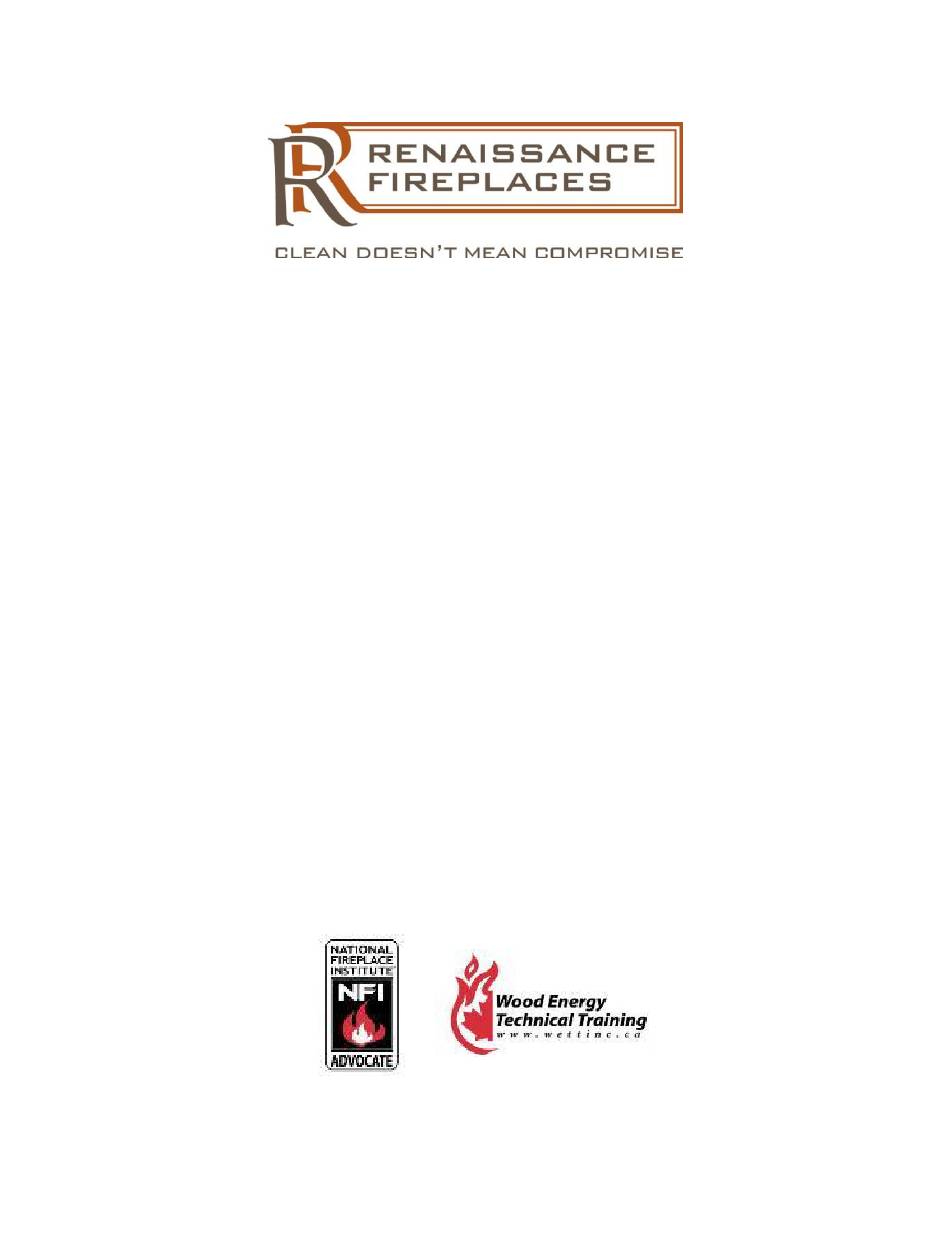

- Page 1 RENAISSANCE RUMFORD 1000 INSTALLATION MANUAL We recommend our products be installed and serviced by certified U.S. National Fireplace Institute or Canadian Wood Energy Technology Transfer Inc. professionals only. Keep this manual for future reference. RRR1000B-INAN - 2020-04...
- Page 2 We welcome comments and feedback concerning the installation of the Renaissance RUMFORD 1000. Contact us by phone or email. Sincerely, The Renaissance Fireplaces Team Industrial Chimney Company Inc. 400 J.-F. Kennedy, St-Jerome, Quebec, Canada, J7Y 4B7 Telephone: (450) 565-6336 Email: technical@icc-rsf.com...
-
Page 3: Table Of Contents
VERVIEW GENERAL SPECIFICATIONS IREPLACE PECIFICATIONS RAMING VERVIEW HIMNEY VERVIEW FIREPLACE INSTALLATION RUMFORD 1000 NCLUDED WITH THE ENAISSANCE RUMFORD 1000 OVING THE NGAGING THE UILLOTINE YSTEM Counterweights' Installation Firescreen Unlocking the Glass Door MANDATORY INSTALLATIONS ANDATORY PARK UARD – S ANDATORY... -
Page 4: Renaissance Rumford Tm 1000 Listing Label
RENAISSANCE RUMFORD 1000 LISTING LABEL The listing label has been placed on the left counterweight channel. To be able to consult the label, fully open the firescreen and guillotine glass door. Use a portable lamp and look left in the guillotine bay. The listing label is permanently affixed and should not be removed. -
Page 5: Important Installation Safety Precautions
IMPORTANT INSTALLATION SAFETY PRECAUTIONS Carefully follow all instructions. Improper installation of this fireplace and chimney system could result in a house fire. Detailed explanations are in the sections which follow. For information about local building code requirements or the need for a permit, contact your local municipal jurisdiction or fire department. -
Page 6: Planning The Installation
PLANNING THE INSTALLATION RECOMMENDATIONS Before beginning, we strongly recommend adequate planning of your installation, including the chimney and the hearth protection. Refer to Figure 1 for an installation overview including critical components and warnings. The planning process may involve your retail salesperson, installation personnel, outside contractors and local building officials. -
Page 7: Installation Overview
INSTALLATION OVERVIEW MANDATORY – Roof Top Radiation Shield *Refer to page 29 to determine the appropriate flashing (regular or vented) IGURE ENERAL NSTALLATION VERVIEW... -
Page 8: General Specifications
GENERAL SPECIFICATIONS Under the 2015 U.S. EPA (Environmental Protection Agency) regulation, the Renaissance RUMFORD 1000 is defined as a fireplace primarily for its decorative and aesthetic prominence offering more than 500 square inches of pure fire viewing (930 square visible inches). -
Page 9: Fireplace Specifications
FIREPLACE SPECIFICATIONS IGURE IREPLACE IMENSIONS... -
Page 10: Framing Overview
FRAMING OVERVIEW Walls on all interior sides of the fireplace enclosure should be finished and flat. Insulation or other materials should not be placed within the required clearance spaces around the fireplace. IMPORTANT: INSULATION SHOULD ONLY BE WITHIN THE FRAMING, NOT IN THE SPACE BETWEEN THE FRAMING AND THE FIREPLACE Air space required... -
Page 11: Chimney Overview
CHIMNEY OVERVIEW MANDATORY – Roof Top Radiation Shield *Refer to page 29 to determine the appropriate Min. flashing Ceiling (regular or Clearance vented) 8' ** ** See Table 2 (C) on page 21 for more details IGURE ENERAL HIMNEY EQUIREMENTS ABLE HIMNEY PECIFICATIONS... -
Page 12: Fireplace Installation
FIREPLACE INSTALLATION Move the fireplace on its crate. Only unpack and/or remove from crate once the fireplace is as close as possible to its final installation location. INCLUDED WITH THE RENAISSANCE RUMFORD 1000 On the crate with the fireplace Item Description Quantity Renaissance RUMFORD... - Page 13 In the bag with the manuals Item Description Quantity Installation manual (English and French) Owner's manual (English and French) Door cover button – round black Screw – self tapping 1" long hex head Screw – self tapping 1/2" long hex head Bottle of high temperature door grease Removable door handle Collar for 5"...
-
Page 14: Moving The Rumford 1000
The RUMFORD 1000 weighs 740 lb crated. The RUMFORD 1000 fireplace is front heavy. To safely ship and transport the RUMFORD 1000, we have taken various parts from the front of the fireplace and attach them to the back of the crate rendering the overall crate rather well- balanced. -
Page 15: Engaging The Guillotine System
ENGAGING THE GUILLOTINE SYSTEM OUNTERWEIGHTS NSTALLATION Openings A and C allow the insertion of the counterweights. The openings will be covered by cement board and do not have finishing metal cover plates. x3 counterweight cables Left pulley Right back pulley Right front pulley Start by placing the three counterweight cables through the openings A and C, and over the pulleys. - Page 16 Connect the three cables to the three counterweights and tighten the nuts that hold them in place. Connect the hanging cables to the bottom of the door left and right, and to the bottom of the firescreen at the front right. Using pliers, remove the caps on the back side of each blocking rod.
-
Page 17: Firescreen
IRESCREEN Try moving the firescreen up and down slowly while looking at the cable and the pulley on the right. Make sure the firescreen cable can move freely and centered over its pulley in a straight line. If needed, realign the pulley. If you do so, do not forget to tighten the pulley's nut and bolt without over tightening. -
Page 18: Mandatory Installations
2" wood screws. MANDATORY - FIREBOX LINING OPTIONS (ONE CHOICE REQUIRED) The RUMFORD 1000 has two options for the bricks that line the interior of the firebox. One of the two options MUST be installed. Vermiculite panels with a herringbone brick pattern (EO-VP1000). This choice offers the cleanest burning fireplace on the market and a very classic herringbone look. -
Page 19: Mandatory - Anti-Tip Brackets
MANDATORY – ANTI-TIP BRACKETS The RUMFORD 1000 fireplace MUST be securely fastened to the back wall. One anti-tip bracket has been provided. It is attached to the top of the fireplace. The bracket can be removed and repositioned as needed to ensure it aligns with the framing (see Figure 7). The anti-tip bracket MUST be attached to the top of the fireplace. -
Page 20: Mandatory Clearances
ABLE CEILING HEIGHT REQUIREMENTS Using the components included with the RUMFORD 1000, the minimum ceiling height measured from the base of the fireplace to the ceiling is 8'. This requirement applies to ALL ceilings above the fireplace (room ceiling, enclosure ceiling). - Page 21 ABLE IREPLACE LEARANCES Distance to combustible material from side, back and top standoffs. 0" 0 mm Minimum distance from the guillotine bay opening to a side wall. 24" 610 mm Minimum ceiling height: measured from the base of the fireplace to the lowest point of the ceiling above the fireplace.
-
Page 22: Hearth Extension Requirements
Refer to the "Mantel" section on page 31 for details. HEARTH EXTENSION REQUIREMENTS The minimum size of a non-combustible hearth extension for the RUMFORD 1000 is 45" wide by 24" deep centered in front of the fireplace glass door opening. - Page 23 1" 0.027 If the RUMFORD 1000 is installed on a non-combustible floor (a non-combustible floor surface with a non-combustible floor structure), the floor protection is not required, provided that the non-combustible floor (surface and structure) extends for the entire hearth extension area (45"...
- Page 24 RUMFORD 1000 MIN. 24" IGURE TANDARD EARTH XTENSION RUMFORD 1000 MIN. 24" IGURE AISED IREPLACE RUMFORD 1000 MIN. 24" IGURE AISED EARTH XTENSION...
-
Page 25: Outside Air Intake
OUTSIDE AIR INTAKE The use of outside air is not required unless specified by local building codes. The fireplace only accepts outside air on the left side of the fireplace and comes standard with a 4" connection collar on the fireplace. For outside air runs of 10' or less, the Renaissance FO-INT outside air kit is recommended. -
Page 26: Chimney
CHIMNEY For the best chimney performance, we recommend an interior chimney installation over an exterior chimney installation. In climates with temperatures below 32°F (0°C) the use of an exterior chimney may adversely affect how the fire burns and how well smoke is vented through the chimney. -
Page 27: Offsetting The Chimney
OFFSETTING THE CHIMNEY Use an elbow to offset the chimney to avoid cutting the roof and/or floor joists. An elbow may be installed directly on top of the fireplace. Use the RIS 10" offset chart (see Table 7) to correctly offset the chimney. An offset requires additional chimney support in the form of an offset support or wall support to prevent the chimney from leaning. -
Page 28: Outside Chase Enclosure
ABLE HROUGH FFSET NSTALLATION IMENSIONS 30 Offset 45 Offset Through the Wall Through the Wall US and Canada Canada Only Minimum required ceiling height* 10' 6" 3,2 m 2,74 m Height of the center of the hole in the wall* 8' 4 ½"... -
Page 29: Chimney Installation
CHIMNEY INSTALLATION Cut and frame the required holes in the floor(s), ceiling(s) and roof where the chimney will pass through. The rough opening in the framing is 16" square (the opening can be slightly bigger, up to 16 ½", but NEVER smaller). THE CLEARANCE BETWEEN THE CHIMNEY AND COMBUSTIBLES MUST BE 2"... -
Page 30: Finishing
FINISHING LINTEL INSTALLATION Lintels are installed on the fireplace to easily finish the border of the front opening. These lintels protrude past the front of the fireplace by 1 ¼" allowing ½" for the cement board panels that must cover the front and ¾" for your non-combustible finishing materials. If thicker lintels are required, you can use these lintels as a template to have custom lintels made. -
Page 31: Mantel
SCREWS ALLOWED NO SCREWS SCREWS ALLOWED (grey) areas: Screws can penetrate the fireplace facing at these locations by no more than ½". If using one ½" sheet of cement board, 1" long screws are the maximum length permitted. Longer screws may damage the guillotine system. NO SCREWS (white) areas: Do not screw into this area with any length or type of screw. -
Page 32: Mandatory - Firebox Lining Installation
MANDATORY - FIREBOX LINING INSTALLATION The firebox lining installation instructions for the RUMFORD 1000 fireplace is packaged separately from the fireplace. You must make sure that all is properly installed inside the firebox before making your first fire. This is easily accomplished by following the instructions provided with the lining option you have chosen: •... -
Page 33: Glass Cleaning
THE FIREPLACE SHOULD NEVER BE BURNED WITHOUT THE FIREBOX INSULATION AND REFRACTORY BRICKS PROPERLY INSTALLED. GLASS CLEANING If the glass needs cleaning after installation is complete, use a glass cleaner specifically formulated for wood stove ceramic glass. Do not use an abrasive cleaner and do not clean the glass while it is hot. -
Page 34: 30 Year Limited Warranty
All Renaissance Fireplaces™ models are warranted against defects in material and workmanship for a period of 30 years, subject to the following conditions: During the first year Renaissance Fireplaces™ will repair or replace, at our option, any parts which upon examination by an authorized Renaissance Fireplaces™ representative, are found to be defective, except the parts listed in the EXCLUSIONS portion of this warranty.
