- Page 1 RENAISSANCE LINEAR 50 – RL50 INSTALLATION MANUAL We recommend our products be installed and serviced by certified U.S. National Fireplace Institute or Canadian Wood Energy Technology Transfer Inc. professionals only. Keep this manual for future reference. RL50-INAN - 2020-02...
- Page 2 NOTE TO THE INSTALLER Dear Installer, The Renaissance LINEAR 50 Fireplace is a member of the Renaissance family of luxury fireplaces. It has a contemporary design with a 50" wide opening providing an enormous linear viewing space. Our engineers designed the LINEAR 50 to be easy to install, operate and maintain.
-
Page 3: Table Of Contents
TABLE OF CONTENTS RENAISSANCE LINEAR 50 LISTING LABEL IMPORTANT INSTALLATION SAFETY PRECAUTIONS YES! W HAT TO DO NO! W HAT NOT TO DO OMBUSTIBLE VS COMBUSTIBLE MATERIAL PLANNING THE INSTALLATION ECOMMENDATIONS HOOSING A OCATION AND ESTRICTIONS GENERAL SPECIFICATIONS IREPLACE PECIFICATIONS... -
Page 4: Renaissance Linear 50 Listing Label
RENAISSANCE LINEAR 50 LISTING LABEL The listing label is a thin steel plate attached to a cable, located inside the guillotine bay on the far-right side. To access it, both the fire screen and the glass door must be open. -
Page 5: Important Installation Safety Precautions
IMPORTANT INSTALLATION SAFETY PRECAUTIONS Carefully follow all instructions. Improper installation of this fireplace and chimney system could result in a house fire. Detailed explanations are in the sections which follow. For information about local building code requirements or the need for a permit, contact your local municipal jurisdiction or fire department. -
Page 6: Planning The Installation
A building permit may be required. Check with your local authority to obtain the necessary approvals before beginning. Close attention to detail and clear communication are important to be sure that your Renaissance LINEAR 50 Fireplace is installed according to the requirements in this manual and complies with local building codes. - Page 7 *Refer to text to determine the appropriate flashing IGURE ENERAL NSTALLATION VERVIEW...
-
Page 8: General Specifications
GENERAL SPECIFICATIONS Under the 2015 U.S. EPA (Environmental Protection Agency) regulation, the Renaissance LINEAR 50 is defined as a fireplace primarily for its decorative and aesthetic prominence offering more than 500 square inches of pure fire viewing (710 square visible inches). -
Page 9: Fireplace Specifications
FIREPLACE SPECIFICATIONS IGURE IREPLACE IMENSIONS FRAMING OVERVIEW Steel studs are required in some areas of this installation, see Figure 3. Walls on all interior sides of the fireplace enclosure should be finished and flat. Insulation or other materials should not be placed in required clearance spaces around the fireplace. - Page 10 The minimal recommended framing dimensions do not take into consideration the space required for the outside air connection and duct or the HRS Air Intakes because the location for these and the space required are specific to your installation. Take the time to plan. IGURE INIMAL RAMING...
-
Page 11: Non-Combustible Framing Overview
For finishing specifications and allowable materials, refer to the "Fireplace Facing" section in this manual. NON-COMBUSTIBLE FRAMING OVERVIEW For specifics about the Hot Air Duct clearances and which materials are permitted for framing or finishing, refer to the “HRS Clearances" section in this manual. For specifics about finishing the fireplace facing and which materials are permitted, refer to the “Fireplace Facing"... -
Page 12: Chimney Overview
CHIMNEY OVERVIEW Flashing* with Storm Collar *Refer to text to determine the appropriate flashing IGURE ENERAL HIMNEY EQUIREMENTS... -
Page 13: Heat Redistribution System (Hrs) Overview & Options
ABLE HIMNEY PECIFICATIONS Chimney size and type RIS 10" only Minimum chimney height: from the top of the fireplace to the chimney cap (3,66 m) Maximum chimney height from the top of the fireplace to the chimney cap (11,58m) Maximum chimney height supported by the fireplace without additional (3,66 m) supports Minimum clearance between the exterior of the chimney and any... -
Page 14: Hrs Options
Standard with the fireplace Optional for 8' ceiling Optional Linear Grills Rectangular or long linear grilles, both intakes and outlets, MUST be installed horizontally as shown. HRS O IGURE PTIONS FIREPLACE INSTALLATION INCLUDED WITH THE RENAISSANCE LINEAR 50... - Page 15 On the crate with the fireplace Item Description Quantity Renaissance LINEAR 50 Fireplace Manual bag (see list for contents) Hot air outlet ducts with pre-installed grille adapters Chimney safety labels for each length of chimney in the attic Hot air outlet grilles (6" x 13 ½") Air intake grilles (8 3/8"...
- Page 16 In the bag with the manuals Item Description Quantity Removable door handle Bottle of high temperature door grease Collar for 5" outside air connection (if necessary) Screw – self tapping 1" long hex head Screw – self tapping 1/2" long hex head Screw –...
-
Page 17: Moving The Linear 50
NEVER lift the fireplace by the front or by the guillotine door opening; always handle the fireplace by its casing or by the lifting handles provided. See Figure 9. To prepare the LINEAR 50, locate it as close as possible to its final installation position. There are three lift positions for the two The upper strap must be level with the lifting handles supplied. -
Page 18: Engaging The Guillotine System
ENGAGING THE GUILLOTINE SYSTEM IRESCREEN NSTALLATION Remove the front finishing cover. Keep all screws for re-installation. Remove the two rod end caps located on the back-left side of the unit. Do not remove the rods at this point. - Page 19 Before removing the left blocking rods, gently pull down on the cable to lift the 10lb counterweight. Then remove the left blocking rods and gently lower the counterweight so that the cable is taut. Make certain that the cable is centered in both pulleys and moves freely.
-
Page 20: Glass Door Installation
LASS NSTALLATION Remove the two rod end caps located on the back-right side of the unit. Do not remove the blocking rods at this point. As with the firescreen, gently pull down on the cable to lift the 50lb counterweight. Remove the right blocking rods and gently lower the counterweight so that the cable is taut. -
Page 21: Reducing The Fireplace Weight
Lift the glass door to check the movement of the guillotine glass door. Make sure the cable is centered in the pulleys and moves freely. Close both the guillotine glass door and the fire screen. Reinstall the front finishing cover. WE RECOMMEND BOTH THE GUILLOTINE GLASS DOOR AND THE FIRESCREEN REMAIN... -
Page 22: Mandatory Installations
MANDATORY INSTALLATIONS MANDATORY - LEFT SIDE STANDOFFS For the three side standoffs, align the pre-punched holes with the pre-drilled holes on the left side of the fireplace. To fasten, use six of the ½" self-tapping screws provided as shown in Figure 10. -
Page 23: Mandatory - Bottom Standoffs And Spark Guard
MANDATORY - BOTTOM STANDOFFS AND SPARK GUARD Installation of the LINEAR 50 directly on the floor or on an elevated platform are acceptable. All installations require the bottom standoffs, even if installed on concrete. This is because air flow into the HRS ducts is drawn into the LINEAR 50 through the bottom. -
Page 24: Lifting The Fireplace Onto The Bottom Standoffs
MANDATORY – ANTI-TIP BRACKETS The LINEAR 50 fireplace MUST be securely fastened to the back wall. Four anti-tip brackets have been provided. They are attached to the top of the fireplace. The brackets can be removed and repositioned as needed to ensure they align with framing (see Figure 12). Two anti-tip brackets MUST be attached to the top of the fireplace and two to the sides. -
Page 25: Mandatory Clearances
MANDATORY CLEARANCES FIREPLACE CLEARANCES Clearance to combustibles are critical to the safe operation of this fireplace. IGURE IREPLACE LEARANCES ABLE ABLE IREPLACE LEARANCES Distance to combustible material from side and back standoffs. 0" 0 mm HRS Outlet framing and Fireplace Header Metal Studs Minimum distance from the guillotine bay opening to a side wall. -
Page 26: Ceiling Height Requirements
FOR AT LEAST THE HEIGHT PROVIDED IN TABLE 2 (E). CEILING HEIGHT REQUIREMENTS Using the components included with the LINEAR 50, the minimum ceiling height measured from the base of the bottom standoffs to the ceiling is 9'. The 9' requirement applies to ALL ceilings above the fireplace (room ceiling, enclosure ceiling). -
Page 27: Hrs Air Intakes (Bottom)
HRS A NTAKES OTTOM The HRS Air Intake Grilles (see Figure 15) allow for a safe operating temperature by drawing in room air to circulate around the firebox, inside the fireplace casing and then return warmed into the room. The Air Intake grilles can be installed in a front facing, side facing or rear facing installation and must be open to the fireplace enclosure. -
Page 28: Hot Air Outlet Installation
HRS H HRS O IGURE UTLET OUGH IGURE UTLET LEARANCES PENING ABLE HRS H ABLE UTLET LEARANCES Minimum horizontal clearance from the hot air outlet duct to any 2" 51 mm combustible material. Minimum vertical clearance from the hot air outlet duct to any 6"... -
Page 29: Hearth Extension Requirements
If the flooring immediately in front of the fireplace is COMBUSTIBLE, it must be protected. The minimum size of a non-combustible hearth for the LINEAR 50 is 74.5" wide X 20" deep centered in front of the fireplace glass door opening. - Page 30 LINEAR 50 Fireplace on its bottom standoffs MIN. 20" IGURE TANDARD EARTH XTENSION LINEAR 50 Fireplace on its bottom standoffs MIN. 20" IGURE AISED IREPLACE LINEAR 50 Fireplace on its bottom standoffs MIN. 20" IGURE AISED EARTH XTENSION...
-
Page 31: Outside Air Intake
OUTSIDE AIR INTAKE The use of outside air is not required unless specified by local building codes. The fireplace only accepts outside air on the left side of the fireplace and comes standard with a 4" connection collar on the fireplace. For outside air runs of 10' or less, the Renaissance FO-INT outside air kit is recommended. -
Page 32: Chimney
CHIMNEY For the best chimney performance, we recommend an interior chimney installation over an exterior chimney installation. In climates with temperatures below 32°F (0°C) the use of an exterior chimney may adversely affect how the fire burns and how well smoke is vented through the chimney. -
Page 33: Offsetting The Chimney
OFFSETTING THE CHIMNEY Use an elbow to offset the chimney to avoid cutting the roof and/or floor joists. An elbow may be installed directly on top of the fireplace. Use the 10" RIS offset chart to correctly offset the chimney. An offset requires additional chimney support in the form of an offset support, roof support, or wall support to prevent the chimney from leaning. -
Page 34: Outside Chase Enclosure
ABLE 6 HROUGH NSTALLATION IMENSIONS 30 Offset 45 Offset Through the Wall Through the Wall US and Canada Canada Only Minimum required ceiling height 3,05 m 8' 6" 2,59 m Height of the center of the hole in the wall 7' 11"... -
Page 35: Chimney Installation
CHIMNEY INSTALLATION Cut and frame the required holes in the floor(s), ceiling(s) and roof where the chimney will pass through. The rough opening in the framing is 16" square (the opening can be slightly bigger, up to 16 ½", but NEVER smaller). THE CLEARANCE BETWEEN THE CHIMNEY AND COMBUSTIBLES MUST BE 2"... -
Page 36: Finishing
FINISHING BAFFLE INSTALLATION The baffle is composed of two baffle support brackets and a metal baffle. The parts should be mounted onto existing rails inside the fireplace that are located above the firebox. Position the parts as shown in Figure 25. IGURE AFFLE OCATION AND... -
Page 37: Fireplace Facing
These lintels protrude past the front of the fireplace by 1" allowing ½" for the cement board panels that must cover the front and ½" for your non-combustible finishing materials. If thicker lintels are required, you can use these lintels as a template to have custom lintels made. -

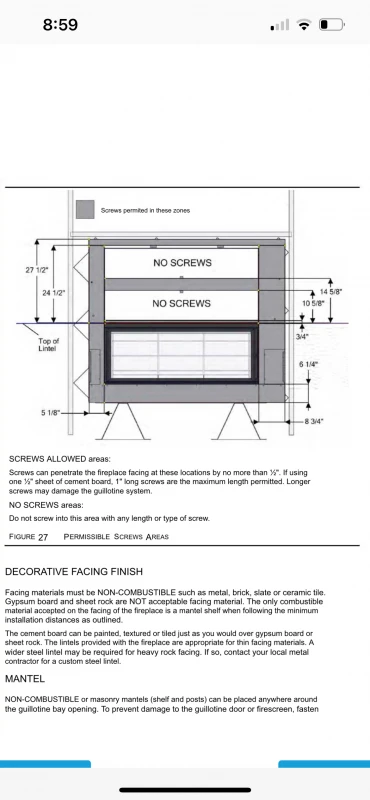

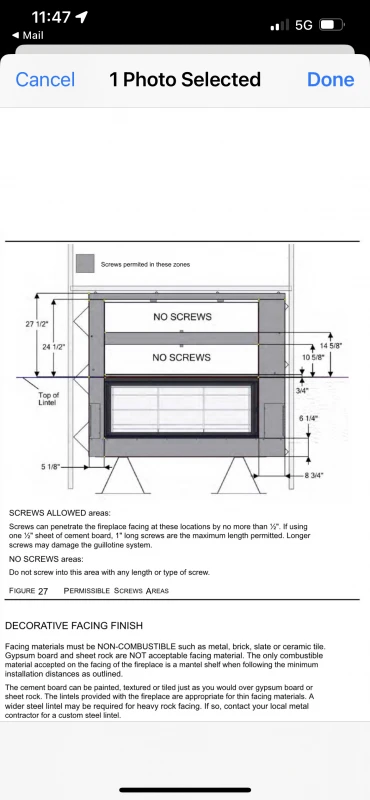

Page 38: Decorative Facing Finish
Screws permited in these zones SCREWS ALLOWED areas: Screws can penetrate the fireplace facing at these locations by no more than ½". If using one ½" sheet of cement board, 1" long screws are the maximum length permitted. Longer screws may damage the guillotine system. NO SCREWS areas: Do not screw into this area with any length or type of screw. -
Page 39: Firebox Lining Installation
EQUIREMENTS FIREBOX LINING INSTALLATION The refractory bricks and insulation panels of the LINEAR 50 fireplace are placed in the fireplace at the factory. If, for any reason, they should need to be replaced, the following order should be observed. To remove any of the refractory bricks, just follow the installation procedure in the reverse sequence. -
Page 40: Glass Cleaning
Finish by installing the three ash step refractory bricks (6). The angled side of the bricks face toward the room. IGURE EFRACTORY RICKS AND NSULATION ANEL THE FIREPLACE SHOULD NEVER BE BURNED WITHOUT THE FIREBOX INSULATION AND REFRACTORY BRICKS PROPERLY INSTALLED. -
Page 41: 30 Year Limited Warranty
All Renaissance Fireplaces™ models are warranted against defects in material and workmanship for a period of 30 years, subject to the following conditions: During the first year Renaissance Fireplaces™ will repair or replace, at our option, any parts which upon examination by an authorized Renaissance Fireplaces™ representative, are found to be defective, except the parts listed in the EXCLUSIONS portion of this warranty.
Need help?
Do you have a question about the LINEAR 50 and is the answer not in the manual?
Questions and answers

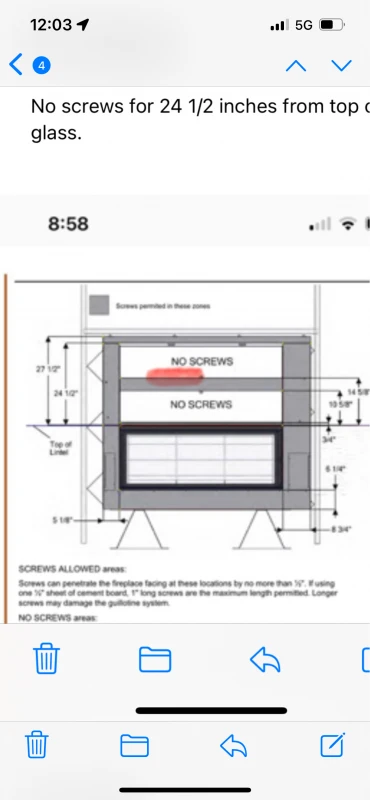

We have a renaissance linear 50 and would like to know if we can install screws in the crosspiece above the glass door.
No, screws should only be fastened in the acceptable locations provided in the "Fireplace Facing" section of the manual to prevent damage to the guillotine door or firescreen. Installing screws in the crosspiece above the glass door is not mentioned as acceptable.
This answer is automatically generated
Coz we put screws on the crosspiece above the glass on a renaissance 50
Metal crosspiece on a renaissance 50
