Kaba R79K-1G Series Installation Manual

Kaba R79K-1G Series Installation Manual

Rfid wall reader installed with ilco rac 4 or rac4xt

Advertisement

Quick Links

INSTALLATION GUIDE
RFID WALL READER
ILCO RAC 4
RAC4XT
INSTALLED WITH
OR

Advertisement

loading
Need help?

Need help?

Do you have a question about the R79K-1G Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaba R79K-1G Series

  • Page 1 INSTALLATION GUIDE RFID WALL READER ILCO RAC 4 RAC4XT INSTALLED WITH...

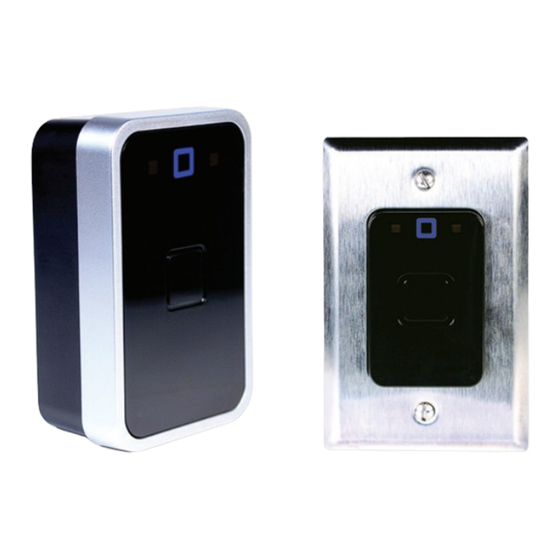

  • Page 2 Introduction The RFID wall mounted reader provided by Kaba is compact, lightweight, rugged and water resistant, able to withstand tempera- tures from -30°F to 150°F (-35°C to 66°C). It is made from durable materials and comes with at least 15 feet (4.6 m) of cable. The reader is capable of functioning up to distances of 500 feet (152.4 m) when powered from the RAC controller board.
  • Page 3 RFID Wall Reader Instructions - (All Models) See Note 1* Programming 1 2 3 1 2 3 1 2 3 4 For INGRESS Port Application Reset Bypass Active Controller Board 124-511689-002 1 2 3 1 2 3 1 2 3 4 For EGRESS Application BLUETOOTH (BLE)
  • Page 4 RFID Wall Reader Instructions - (Surface Mount) BLE MODEL SHOWN MOUNTING SCREW HOLES BLE MODEL SHOWN FIGURE 1 FIGURE 2 BLE CONNECTOR FIGURE 3 Instructions 1. Pull cable(s) for RAC through hole in the back plate and, if applicable, through the gasket then screw the mounting plate of the reader to the wall using the screws provided.
  • Page 5 RFID Wall Reader Instructions - (Flush Mount) FIGURE 1 Instructions 1. Remove screws (item #4) to remove reader assembly (item #2) from bracket 2. Install the drywall bracket on the wall 3. Connect cables for ILCO RAC 4 or RAC 4XT as per page 3 of this document 4.
  • Page 6 RFID Wall Reader Gang Box Instructions (USED FOR PART NUMBER R79K-1GXX-XXX) Instructions 1. Remove screws (item #1) to gain access to reader assembly (item #4) 2. Carefully remove reader assembly (item #4) (see warning above) remove protective film from reader face 3.
  • Page 7 RFID Wall Reader BLE Narrow Stile Mounting Instructions (USED FOR PART NUMBER R79K-1NXX-XXX) Instructions 1. Remove screw (item #1) to gain access to reader assembly (item #2) 2. Disconnect BLE cable (item #6), if necessary 3. Remove protective film from reader face (item #2) 4.
  • Page 8 RFID Wall Reader Surface Mount adding BLE Instructions (USED FOR PART NUMBER R79K-1SX2-XXX) Instructions 1. Remove screw (item #1) to remove reader assembly (item #2) 2. Disconnect cables and remove mounting plate (item #3) from wall 3. Install BLE mounting plate (item #4) using existing screws, refer to appropriate drilling template 4.
  • Page 9 RFID Wall Reader Flush Mount adding BLE Instructions (USED FOR PART NUMBER R79K-1FX2-XXX) Instructions 1. Remove screws (item #4) and faceplate (item #5) to gain access to reader (Figure #3) 2. Disconnect cables 3. Remove screws (item #1) 4. Install BLE assembly (item #3) using screws (item #1) oriented as shown with the cutout at the top and cable facing downward.
  • Page 10 Kaba Customer Services & Support Saflok: 1.800.999.6213 / + 1.248.837.3700 General Information: www.kabalodging.com Online Consumable Orders: www.ilcostore.com To access all of our easy steps, please visit our Support Website: PK3660_07_16 www.kabalodgingsupport.com...
