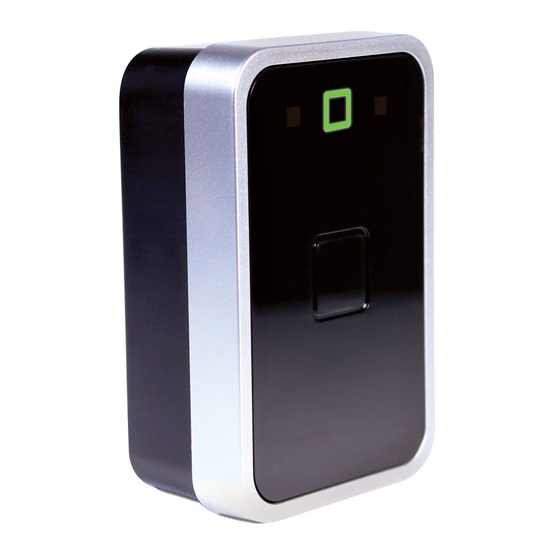

- Page 1 INSTALLATION GUIDE Saflok SR Series RFID (RCU/ECU)
- Page 2 Any misuse of this confidential information contained herein may result in legal action by Computerized Security Systems dba SAFLOK and its parent company. Made in North America ©2015 Kaba Lodging Systems. All trademarks and registered trademarks are the property of their respective owners. Saflok SR...
- Page 3 1- Pre-installation Requirements The SR RFID remote control unit (RCU) controls access to electric strikes, electric exit devices, electromagnetic locks, and parking gates. Positioning the keycard over the reader will momentarily switch power to the electrified locking device. Pre-installation Requirement Be sure to investigate the switching current and voltages required by the electric access control hardware.
- Page 4 Controller BOM NONE Saflok SR Series RFID Reader Installation Guide - PK3670_T_08_15...
- Page 5 2- Installing the Saflok SR RFID RCU Note: The SR RFID RCU Controller is optionally provided with a plastic double-gang deep switch box intended for interior installations. Please check your local building codes before installing. 1. Position the reader box in an accessible location on the locked side. The box should be in close proximity to the access opening as the user will have five seconds to open the door before it relocks.
- Page 6 3- Schematic Diagram Power Leads The SR RFID RCU requires 12-24 volts AC or DC input. Two wire leads (white insulation) are provided for supplying power to the controller. Ensure that voltage going to the controller does not exceed 24 volts. Any 110 VAC power supplies necessary for rectification shall be in separate rated enclosures.
- Page 7 Kaba Customer Services & Support Saflok: 1.800.999.6213 / + 1.248.837.3700 General Information: www.kabalodging.com Online Consumable Orders: www.saflokstore.com To access all of our easy steps, please visit our Support Website: PK3670_T_08_15 www.kabalodgingsupport.com...
