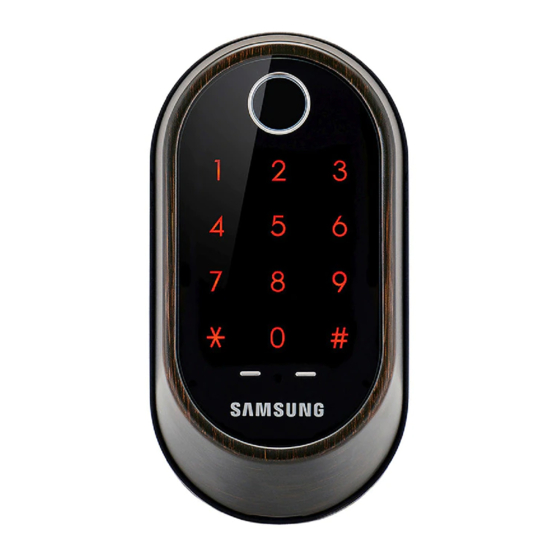

Samsung SDS SHP-A30 User Manual

Digital door lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Please review all included documentation and use the product as intended. Before installing this product,
fully read and understand this user guide. Safety precautions must be followed to avoid personal injury
or property damage.
User Guide
Samsung SDS Digital Door Lock
SHP-A30

Advertisement

Table of Contents
loading

Related Manuals for Samsung SDS SHP-A30

Summary of Contents for Samsung SDS SHP-A30

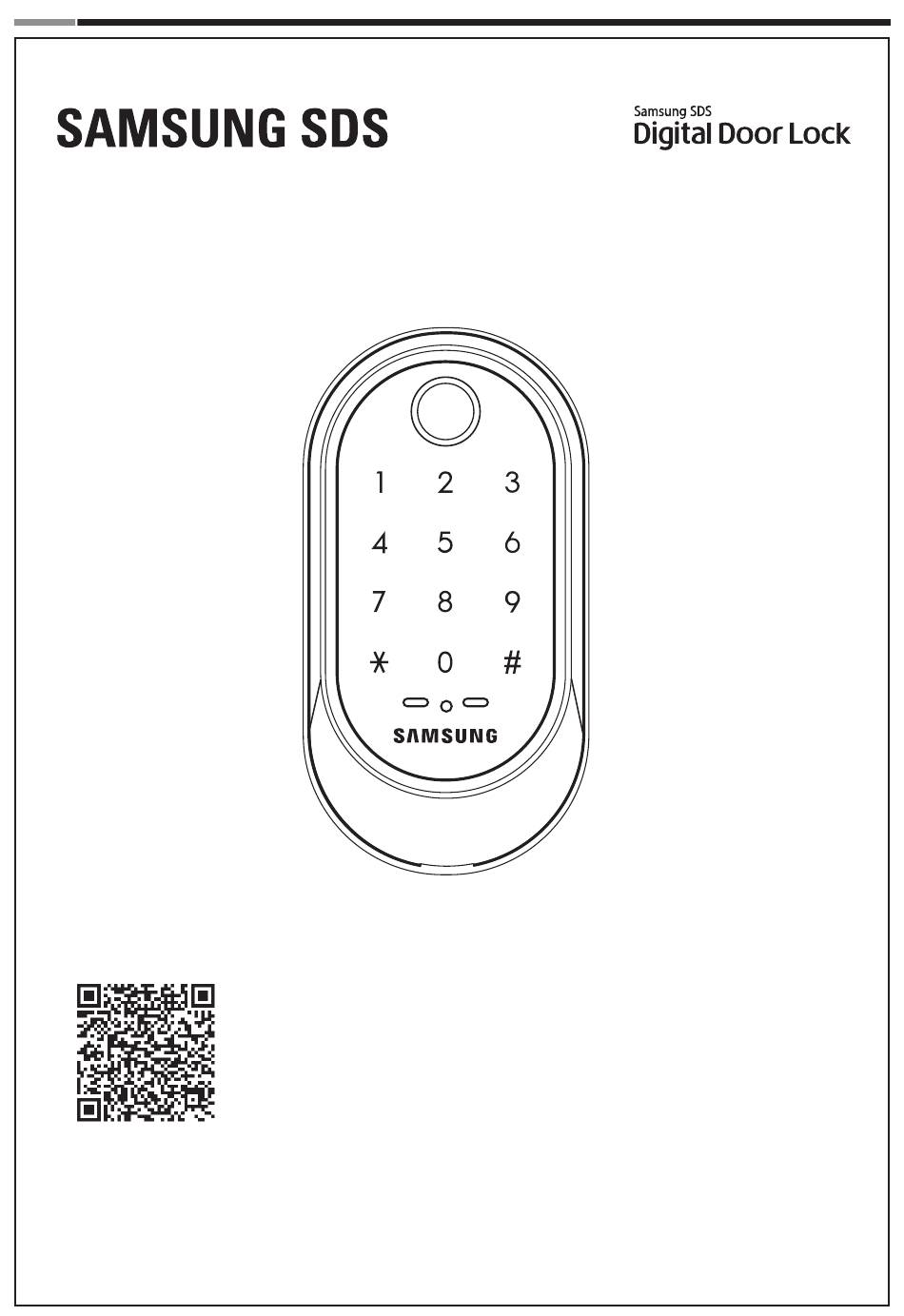

  • Page 1 Samsung SDS Digital Door Lock User Guide SHP-A30 Please review all included documentation and use the product as intended. Before installing this product, fully read and understand this user guide. Safety precautions must be followed to avoid personal injury or property damage.
  • Page 2 Samsung SDS Digital Door Lock Introduction Congratulations on the purchase of your Samsung SDS Digital Door Lock! Your lock has a touch sensitive number display pad. Up to 50 users can be registered to gain access with unique Codes. The touchscreen makes it convenient to enter the code and the Randomizer function helps prevent lockpicking using fingerprint traces on the touchscreen.
  • Page 3 SHP-A30 Samsung SDS Digital Door Lock Safety Precautions Warning: This section contains important information to ensure the user’s safety and prevent potential damage to property. Please, read this section carefully and use the product accordingly. Precaution when Installing Product  It is not recommended to install this product in a rainy, humid, or salty place (e.g. coastal area), or a place exposed to direct sunlight for a long period of time.
  • Page 4 SHP-A30 Samsung SDS Digital Door Lock  Keep a distance of 20 cm or further when using this product.  Do not scratch the fingerprint recognition sensor with a metal object such as a coin, key, or necklace.  If your finger or the fingerprint recognition sensor is dirty or wet, wipe it clean to remove any moisture before using the sensor.
  • Page 5 Batteries Battery Bracket User Manual Cover Pin Samsung SDS Digital Door Lock User Guide SHP-A30 Please review all included documentation and use the product as intended. 매뉴얼을 제대로 읽은 후 제품 을 설치하세요. Safety precautions must be followed to avoid personal injury or property damage.
  • Page 6 SHP-A30 Samsung SDS Digital Door Lock Door Preparation Step 1. Check the Door Status 1) This lock supports door thickness of 1-3/8” to 2-5/32” (35 to 55mm). 2) Using the provided lock template, ensure that there are no obstructions that would prevent installing the lock properly.
  • Page 7 SHP-A30 Samsung SDS Digital Door Lock Step 3. Drilling 1) Drill a 2-1/8˝ (54 mm) diameter hole through the door, as indicated on the template, using a hole saw. 2) Drill a 1˝ (25 mm) deadbolt hole using a hole saw.
  • Page 8 SHP-A30 Samsung SDS Digital Door Lock Preparing the parts 1. Adjusting the backset of the dead bolt Turn the body of the dead bolt to adjust the backset of the dead bolt. It can be 60mm (2-3/8”) or 70mm (2-3/4”) 2.
  • Page 9 SHP-A30 Samsung SDS Digital Door Lock Installing lock Outside Inside Precaution when Installing Product  Before installing an IoT door lock, check your Wi-Fi environment. Depending on the indoor Wi-Fi environment, an IoT door lock may not be installed or its service may not be supported. To check your Wi-Fi environment, you need a smartphone and a Wi-Fi access point (AP) in your house.
  • Page 10 SHP-A30 Samsung SDS Digital Door Lock 2. Installing the Exterior Unit 1. Ensure the Exterior Unit is aligned with the center hole of the deadbolt. 2. Attach the exterior unit. CAUTION: The dead bolt must be in a retracted position.
  • Page 11 SHP-A30 Samsung SDS Digital Door Lock 5. Fix Screw for the Interior Unit 1. Before installing the interior unit, 1) Check the direction of the thumb turn while the dead bolt is in the OPEN PO- SITION. 2) Check if the knob of the interior unit is placed at the center.
  • Page 12 SHP-A30 Samsung SDS Digital Door Lock PROGRAMMING Programming Features Exterior Interior Low Battery WiFi Module Indicator (Option) [Open/Close] Button Operation LED Fingerprint [REG] Button Recognition Sensor Privacy/Lockout Mode Indicator Thumbturn Lever Touchscreen Back up Power Contact Point Restart Button Battery Cover...
  • Page 13 SHP-A30 Samsung SDS Digital Door Lock Symbols Description Symbols Description Place the finger on the Repeat the process inside fingerprint sensor the rectangle. Enter the User ID Number. Can Press the [OPEN/CLOSE] OPEN / CLOSE be set from 1 to 50.
  • Page 14 SHP-A30 Samsung SDS Digital Door Lock Resetting : Deletes all registered information and restores the factory default. After resetting, change the Master PIN Code for security. Restart Button : This button resets the lock when the lock stops functioning. Registered infor- mation is not deleted.
  • Page 15 SHP-A30 Samsung SDS Digital Door Lock Basic Lock Operation Overview Opening the Door with a PIN Code → The door is now open. Enter the PIN Code and Touch the [Touchscreen]. press the button. Opening the Door with a Fingerprint →...
  • Page 16 SHP-A30 Samsung SDS Digital Door Lock Status Indicators Privacy Mode Indicator Low Battery Indicator | Authentication Methods Management menu Registration menu Changing Master PIN Registering a User PIN Code 1~50 Deleting a User PIN Code 1~50 Deleting All User PIN Code...
  • Page 17 SHP-A30 Samsung SDS Digital Door Lock Changing the Master PIN Code Changing Master PIN Registering a User PIN Code 1~50 followed by [ ] to Press Open the battery cover of the When the touchscreen is il- manage authentication Interior Unit and press the...
  • Page 18 SHP-A30 Samsung SDS Digital Door Lock Managing User PIN Codes Registering a User PIN Code Open the battery cover of When the touchscreen is il- Press followed by [ ] to the Interior Unit and press luminated, enter the current manage authentication button once.
  • Page 19 SHP-A30 Samsung SDS Digital Door Lock Deleting a User PIN Code Changing Master PIN Open the battery cover of When the touchscreen is il- followed by [ ] to Press Registering a User PIN Code 1~50 the Interior Unit and press...
  • Page 20 1~50 SHP-A30 Samsung SDS Digital Door Lock Deleting All User PIN Code Deleting All User PIN Code Fingerprint Registering a User Fingerprint Deleting a User Fingerprint 1~50 Fingerprint Open the battery cover of When the touchscreen is il- Press followed by [ ] to...
  • Page 21 SHP-A30 Samsung SDS Digital Door Lock Managing User Fingerprints Registering a User Fingerprint Changing Master PIN Registering a User PIN Code 1~50 Open the battery cover of When the touchscreen is il- Press followed by [ ] to the Interior Unit and press...
  • Page 22 Changing Master PIN SHP-A30 Samsung SDS Digital Door Lock Registering a User PIN Code 1~50 Deleting a User Fingerprint Deleting a User PIN Code 1~50 Deleting All User PIN Code followed by [ ] to Open the battery cover of...
  • Page 23 Fingerprint SHP-A30 Samsung SDS Digital Door Lock Deleting All User Fingerprint Deleting All User Fingerprint 1~50 Open the battery cover of When the touchscreen is il- Press followed by [ ] to the Interior Unit and press luminated, enter the current...
  • Page 24 SHP-A30 SHP-A30 Samsung SDS Samsung SDS Digital Door Lock Digital Door Lock Settings menu Setup menu Volume Silent ※ Default High Auto Locking Time ※ Default Manual lock Auto lock: 10s Auto lock: 30s Auto lock: 60s Auto lock: 120s...
  • Page 25 SHP-A30 Samsung SDS Randomizer Activation ※ Default Digital Door Lock Deactivation Volume Setting 2-Step Authentication Activation Deactivation ※ Default Door Direction Left-Handed Right-Handed Open the battery cover of When the touchscreen is il- Press followed by [ ] for the Interior Unit and press luminated, enter the current other settings.
  • Page 26 Deactivation ※ Default SHP-A30 Samsung SDS Digital Door Lock Door Direction Left-Handed Right-Handed Auto Locking Time Setting Wi-Fi Setting Activation ※ Default Deactivation WPS Mode Open the battery cover of When the touchscreen is il- Press followed by [ ] for...
  • Page 27 SHP-A30 Samsung SDS Digital Door Lock Randomizer Setting Silent Open the battery cover of When the touchscreen is il- Press followed by [ ] for the Interior Unit and press luminated, enter the current other settings. button Master PIN Code (default...
  • Page 28 SHP-A30 Samsung SDS Digital Door Lock 2-Step Authentication Setting Silent ※ Default Open the battery cover of When the touchscreen is il- Press followed by [ ] for High the Interior Unit and press luminated, enter the current other settings.
  • Page 29 SHP-A30 Samsung SDS Digital Door Lock Silent Door Direction Setting ※ Default High ※ Default Manual lock Open the battery cover of When the touchscreen is il- Press followed by [ ] for the Interior Unit and press luminated, enter the current other settings.
  • Page 30 Silent SHP-A30 Samsung SDS Digital Door Lock ※ Default WiFi Setting High ※ Default Manual lock Auto lock: 10s Open the battery cover of When the touchscreen is il- Press followed by [ ] for the Interior Unit and press luminated, enter the current other settings.
  • Page 31 SHP-A30 Samsung SDS Digital Door Lock Privacy Mode Functions While the door is locked, press and hold the [OPEN/CLOSE] button for more than three seconds. As it is set from the inside, provides a secure lock for the convenience of the occupant(s). Privacy mode disables Remote control functionalities.
  • Page 32 SHP-A30 Samsung SDS Digital Door Lock MISCELLANEOUS Miscellaneous Information Replacing the Batteries If you heard the voice “Replace the batteries” when unlocking the door with the PIN Code or the fingerprint, it is time to replace the batteries. (The low battery indicator lights up when the voice sounds.) Replace all 4 batteries within a week of the first alarm sound.
  • Page 33 SHP-A30 Samsung SDS Digital Door Lock Installing WiFi Module (Option) To use the smartphone App based various user services through WiFi, the WiFi module pack needs to be mounted. WiFi connection is activated only when the door is closed. (WiFi band: 2.4GHz) Note: Remove all the batteries before mounting the WiFi module pack.
  • Page 34 SHP-A30 Samsung SDS Digital Door Lock Reset to Factory Default Resetting the lock will delete all registered information. Note: All registered Master and user data will be deleted, and the lock will be reset to default settings. Press the [REG] button for 5 seconds.
  • Page 35 SHP-A30 Samsung SDS Digital Door Lock Troubleshooting When the lock doesn’t function correctly, please check the items below. If you can’t resolve the problem, please contact the nearest service center. Problem Resolution Reference ● Check if the batteries are inserted in the correct Polarity(+/-).
  • Page 36 SHP-A30 Samsung SDS Digital Door Lock Problem Resolution Reference ● Check if Auto Locking is set. When Manual Locking is set, touching the [Touchscreen] locks the door. The door won’t ● If the door doesn’t lock automatically when Auto Locking lock automatically is set, then the lock has been installed incorrectly.
  • Page 37 SHP-A30 Samsung SDS Digital Door Lock User Registration Table PIN CODE/ PIN CODE/ User No. User Name User No. User Name FINGERPRINT FINGERPRINT...
  • Page 38 SHP-A30 Samsung SDS Digital Door Lock Product Specifications Item Specifications Voltage 4 AA Alkaline 1.5V Batteries (LR6) (6V) Operation Method Electronic Access Method (PIN codes entry or Fingerprint) Weight 2.1Kg (including both inside and Exterior Unit) 71 mm (W) x 136 mm (H) x 32.7 mm (D) Exterior Unit 2-3/4˝...
  • Page 39 SHP-A30 Samsung SDS Digital Door Lock FCC NOTICE NOTE : This equipment has been tested and found to comply with the limits for a Class B digital de- vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 40 In no event shall SAMSUNG SDS be liable for an amount in excess of SAMSUNG SDS’s original selling price of the product, for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of the product.
  • Page 41 SAMSUNG SDS is not an insurer of either the property or safety of the user’s family or employees, and limits its liability for any loss or damage including incidental or consequential damages to SAMSUNG SDS’s original selling...
  • Page 42 SHP-A30 SHP-A30 Samsung SDS Samsung SDS Digital Door Lock Digital Door Lock...
  • Page 43 SHP-A30 Samsung SDS Digital Door Lock Drilling Template Sheet : 2-3/8″(60mm) Backset 5/32 Deep " Ø2-1/8 " Bore 1 "DIA. Latch Hole. 2-3/8 "...
  • Page 44 SHP-A30 Samsung SDS Digital Door Lock...
  • Page 45 SHP-A30 Samsung SDS Digital Door Lock Drilling Template Sheet : 2-3/4″(70mm) Backset Ø2-1/8" 5/32 Deep " Bore 1 "DIA. Latch Hole. 2-3/4"...
  • Page 46 SHP-A30 Samsung SDS Digital Door Lock...
  • Page 47 SHP-A30 Samsung SDS Digital Door Lock...
  • Page 48 Digital Door Lock Product information and customer service contact SAMSUNG SDS SAMSUNG SDS Co.,Ltd., reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2019, SAMSUNG SDS Co.,Ltd. All right reserved.
