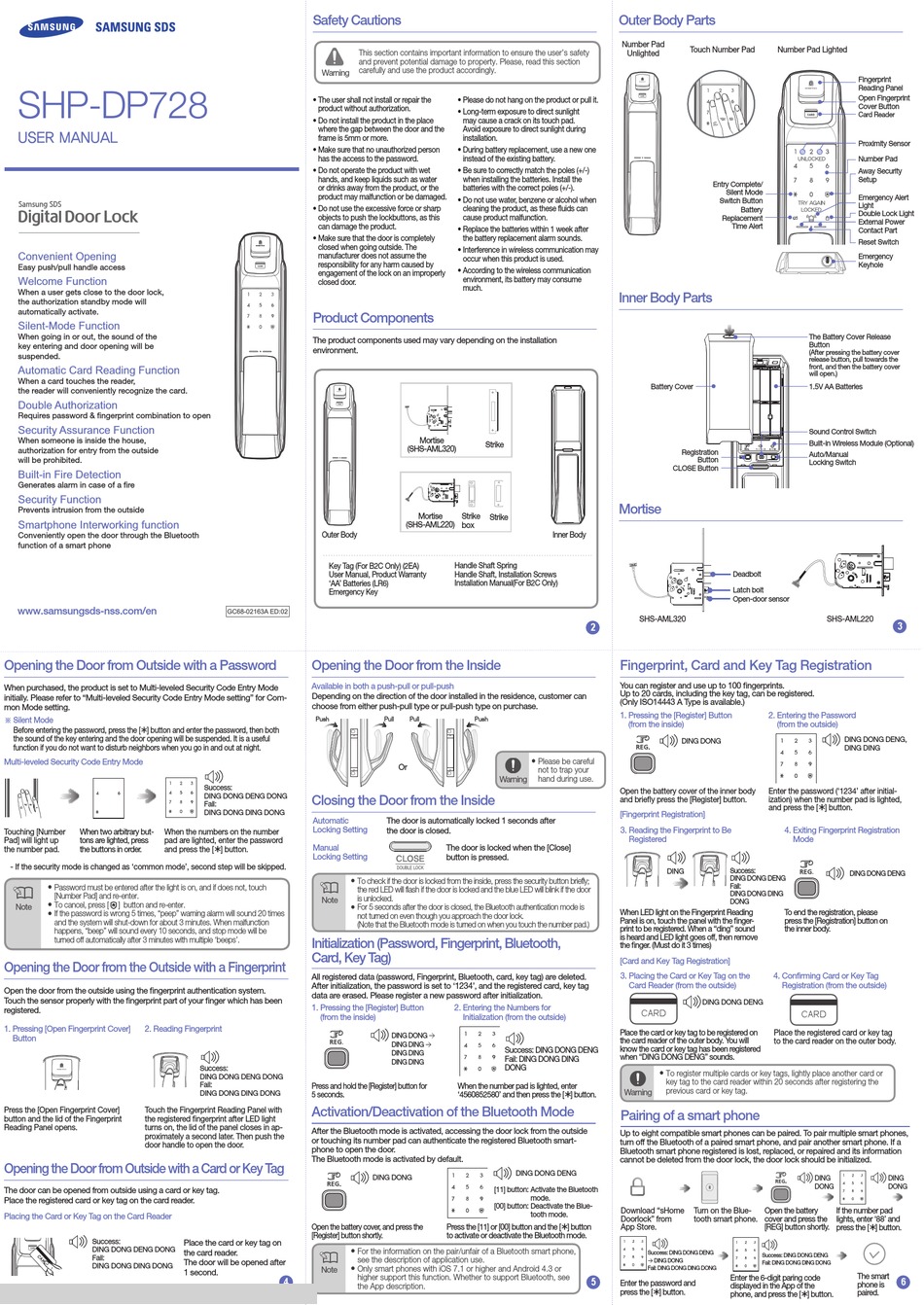

Samsung SDS SHP-DP728 User Manual

SHP-DP728
Convenient Opening
Easy push/pull handle access
Welcome Function
When a user gets close to the door lock,
the authorization standby mode will
automatically activate.
Silent-Mode Function
When going in or out, the sound of the
key entering and door opening will be
suspended.
Automatic Card Reading Function
When a card touches the reader,
the reader will conveniently recognize the card.
Double Authorization
Requires password & fingerprint combination to open
Security Assurance Function
When someone is inside the house,
authorization for entry from the outside
will be prohibited.
Built-in Fire Detection
Generates alarm in case of a fire
Security Function
Prevents intrusion from the outside
Smartphone Interworking function
Conveniently open the door through the Bluetooth
function of a smart phone
www.samsungsds-nss.com/en
Opening the Door from Outside with a Password
When purchased, the product is set to Multi-leveled Security Code Entry Mode
initially. Please refer to "Multi-leveled Security Code Entry Mode setting" for Com-
mon Mode setting.
※ Silent Mode
Before entering the password, press the [] button and enter the password, then both
the sound of the key entering and the door opening will be suspended. It is a useful
function if you do not want to disturb neighbors when you go in and out at night.
Multi-leveled Security Code Entry Mode
Touching [Number When two arbitrary but- When the numbers on the number
Pad] will light up tons are lighted, press pad are lighted, enter the password
the number pad. the buttons in order. and press the [] button.
- If the security mode is changed as 'common mode', second step will be skipped.
● Password must be entered after the light is on, and if does not, touch
[Number Pad] and re-enter.
● To cancel, press [
] button and re-enter.
Note
● If the password is wrong 5 times, "peep" warning alarm will sound 20 times
and the system will shut-down for about 3 minutes. When malfunction
happens, "beep" will sound every 10 seconds, and stop mode will be
turned off automatically after 3 minutes with multiple 'beeps'.
Opening the Door from the Outside with a Fingerprint
Open the door from the outside using the fingerprint authentication system.
Touch the sensor properly with the fingerprint part of your finger which has been
registered.
1. Pressing [Open Fingerprint Cover] 2. Reading Fingerprint
Button
BIOMETRICS
Press the [Open Fingerprint Cover] Touch the Fingerprint Reading Panel with
button and the lid of the Fingerprint the registered fingerprint after LED light
Reading Panel opens. turns on, the lid of the panel closes in ap-
proximately a second later. Then push the
door handle to open the door.
Opening the Door from Outside with a Card or Key Tag
BIOMETRICS BIOMETRICS
BIOMETRICS
The door can be opened from outside using a card or key tag.
Place the registered card or key tag on the card reader.
Placing the Card or Key Tag on the Card Reader
BIOMETRICS
Success:
DING DONG DENG DONG
Fail:
DING DONG DING DONG

Safety Cautions

Warning
• The user shall not install or repair the
product without authorization.
• Do not install the product in the place
where the gap between the door and the
frame is 5mm or more.
• Make sure that no unauthorized person
has the access to the password.
• Do not operate the product with wet
hands, and keep liquids such as water
or drinks away from the product, or the
product may malfunction or be damaged.
• Do not use the excessive force or sharp
objects to push the lockbuttons, as this
can damage the product.
• Make sure that the door is completely
closed when going outside. The
BIOMETRICS
manufacturer does not assume the
responsibility for any harm caused by
engagement of the lock on an improperly
closed door.
Product Components
The product components used may vary depending on the installation
environment.
BIOMETRICS
Outer Body
Key Tag (For B2C Only) (2EA)
User Manual, Product Warranty
'AA' Batteries (LR6)
Emergency Key
GC68-02163A ED:02
Opening the Door from the Inside
Available in both a push-pull or pull-push
Depending on the direction of the door installed in the residence, customer can
choose from either push-pull type or pull-push type on purchase.
Push
Success:
DING DONG DENG DONG
Closing the Door from the Inside
Fail:
DING DONG DING DONG
Automatic
Locking Setting
Manual
Locking Setting
● To check if the door is locked from the inside, press the security button briefly;
the red LED will flash if the door is locked and the blue LED will blink if the door
is unlocked.
Note
● For 5 seconds after the door is closed, the Bluetooth authentication mode is
GC68-02162A ED01
not turned on even though you approach the door lock.
(Note that the Bluetooth mode is turned on when you touch the number pad.)
Initialization (Password, Fingerprint, Bluetooth,
Card, Key Tag)
All registered data (password, Fingerprint, Bluetooth, card, key tag) are deleted.
After initialization, the password is set to '1234', and the registered card, key tag
data are erased. Please register a new password after initialization.
1. Pressing the [Register] Button
(from the inside)
Success:
DING DONG DENG DONG
Fail: Press and hold the [Register] button for
DING DONG DING DONG
5 seconds.
Activation/Deactivation of the Bluetooth Mode
After the Bluetooth mode is activated, accessing the door lock from the outside
or touching its number pad can authenticate the registered Bluetooth smart-
phone to open the door.
The Bluetooth mode is activated by default.
Open the battery cover, and press the
[Register] button shortly.
Place the card or key tag on
● For the information on the pair/unfair of a Bluetooth smart phone,
the card reader.
see the description of application use.
The door will be opened after
● Only smart phones with iOS 7.1 or higher and Android 4.3 or
Note
1 second.
higher support this function. Whether to support Bluetooth, see
4
the App description.
This section contains important information to ensure the user's safety
and prevent potential damage to property. Please, read this section
carefully and use the product accordingly.
• Please do not hang on the product or pull it.
• Long-term exposure to direct sunlight
may cause a crack on its touch pad.
Avoid exposure to direct sunlight during
installation.
• During battery replacement, use a new one
instead of the existing battery.
• Be sure to correctly match the poles (+/-)
when installing the batteries. Install the
batteries with the correct poles (+/-).
• Do not use water, benzene or alcohol when
cleaning the product, as these fluids can
cause product malfunction.
• Replace the batteries within 1 week after
the battery replacement alarm sounds.
• Interference in wireless communication may
occur when this product is used.
• According to the wireless communication
environment, its battery may consume
much.
Mortise
Mortise
Strike
(SHS-AML320)
Mortise
Strike
Strike
(SHS-AML220)
box
Strike
Strike box
(For B2C Only)
Handle Shaft Spring
Handle Shaft, Installation Screws
Installation Manual(For B2C Only)
Pull Pull Push
● Please be careful
Or
Warning
The door is automatically locked 1 seconds after
the door is closed.
The door is locked when the [Close]
button is pressed.
2. Entering the Numbers for
Initialization (from the outside)
DING DONG

DING DING

Success: DING DONG DENG
DING DING
Fail: DING DONG DING
DING DING
DONG
When the number pad is lighted, enter
'4560852580' and then press the [] button.
DING DONG DENG
DING DONG
[11] button: Activate the Bluetooth
mode.
[00] button: Deactivate the Blue-
tooth mode.
Press the [11] or [00] button and the [] button
to activate or deactivate the Bluetooth mode.

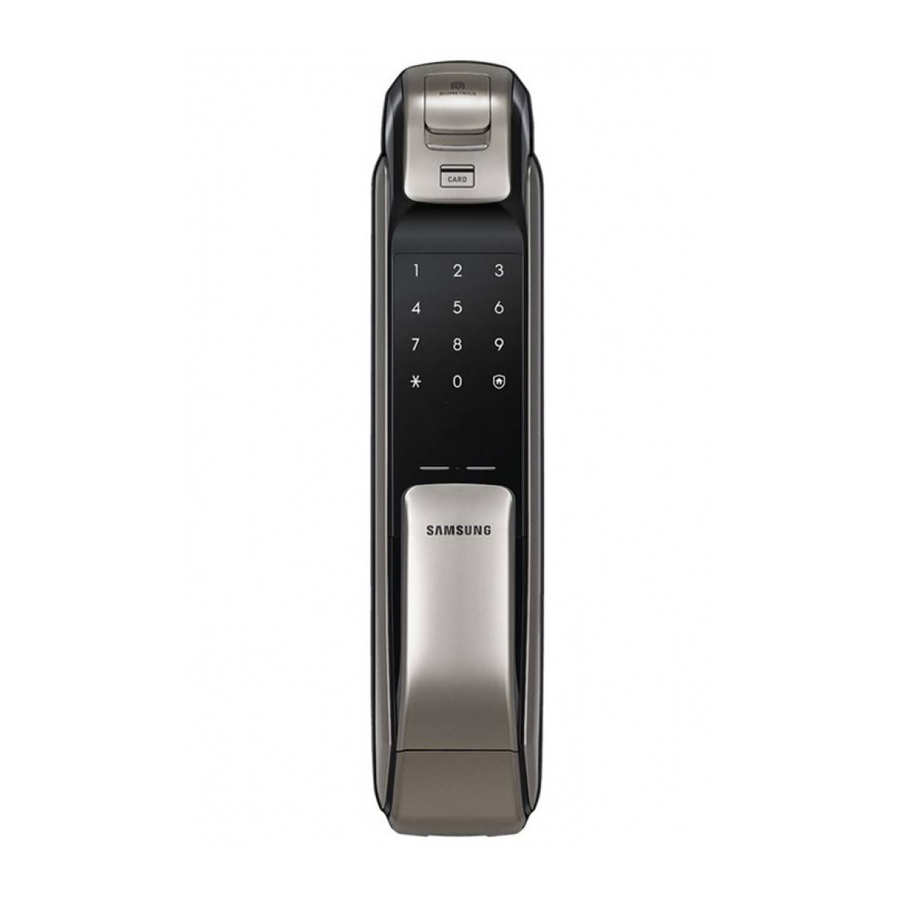

Outer Body Parts
Number Pad
Touch Number Pad
Unlighted
BIOMETRICS
BIOMETRICS
BIOMETRICS
Inner Body Parts
Battery Cover
Registration
Button
CLOSE Button
Mortise
Inner Body
SHS-AML320
2
Fingerprint, Card and Key Tag Registration
You can register and use up to 100 fingerprints.
Up to 20 cards, including the key tag, can be registered.
(Only ISO14443 A Type is available.)
1. Pressing the [Register] Button
(from the inside)
DING DONG
not to trap your
hand during use.
Open the battery cover of the inner body
and briefly press the [Register] button.
[Fingerprint Registration]
3. Reading the Fingerprint to Be
Registered
DING
When LED light on the Fingerprint Reading
Panel is on, touch the panel with the finger-
print to be registered. When a "ding" sound
is heard and LED light goes off, then remove
the finger. (Must do it 3 times)
[Card and Key Tag Registration]
3. Placing the Card or Key Tag on the
Card Reader (from the outside)
DING DONG DENG
CARD
Place the card or key tag to be registered on
the card reader of the outer body. You will
know the card or key tag has been registered
when "DING DONG DENG" sounds.
● To register multiple cards or key tags, lightly place another card or
key tag to the card reader within 20 seconds after registering the
previous card or key tag.
Warning
Pairing of a smart phone
Up to eight compatible smart phones can be paired. To pair multiple smart phones,
turn off the Bluetooth of a paired smart phone, and pair another smart phone. If a
Bluetooth smart phone registered is lost, replaced, or repaired and its information
cannot be deleted from the door lock, the door lock should be initialized.
Download "sHome Turn on the Blue-
Doorlock" from tooth smart phone.
App Store.
Success: DING DONG DENG
 DING DONG
Fail: DING DONG DING DONG
5
Enter the password and
press the [] button.
Number Pad Lighted
Fingerprint
BIOMETRICS Reading Panel
BIOMETRICS
Open Fingerprint
Cover Button
Card Reader
Proximity Sensor
Number Pad
Away Security
Setup
Entry Complete/
BIOMETRICS
Silent Mode
Emergency Alert
Switch Button
Light
Battery
Double Lock Light
Replacement
External Power
Time Alert
Contact Part
Reset Switch
Emergency
Keyhole
The Battery Cover Release
Button
(After pressing the battery cover
release button, pull towards the
front, and then the battery cover
will open.)
1.5V AA Batteries
Sound Control Switch
Built-in Wireless Module (Optional)
Auto/Manual
Locking Switch
Deadbolt
Latch bolt
Open-door sensor
SHS-AML220
2. Entering the Password
(from the outside)
DING DONG DENG,
DING DING
Enter the password ('1234' after initial-
ization) when the number pad is lighted,
and press the [] button.
4. Exiting Fingerprint Registration
Mode
Success:
DING DONG DENG
DING DONG DENG
Fail:
DING DONG DING
DONG
To end the registration, please
press the [Registration] button on
the inner body.
4. Confirming Card or Key Tag
Registration (from the outside)
CARD
Place the registered card or key tag
to the card reader on the outer body.
DING
DONG
Open the battery If the number pad
cover and press the lights, enter '88' and
[REG] button shortly. press the [] button.
Success: DING DONG DENG
Fail: DING DONG DING DONG
The smart
Enter the 6-digit paring code
phone is
displayed in the App of the
paired.
phone, and press the [] button.
3
DING
DONG
6
