Summary of Contents for Semacon S-1200 Series

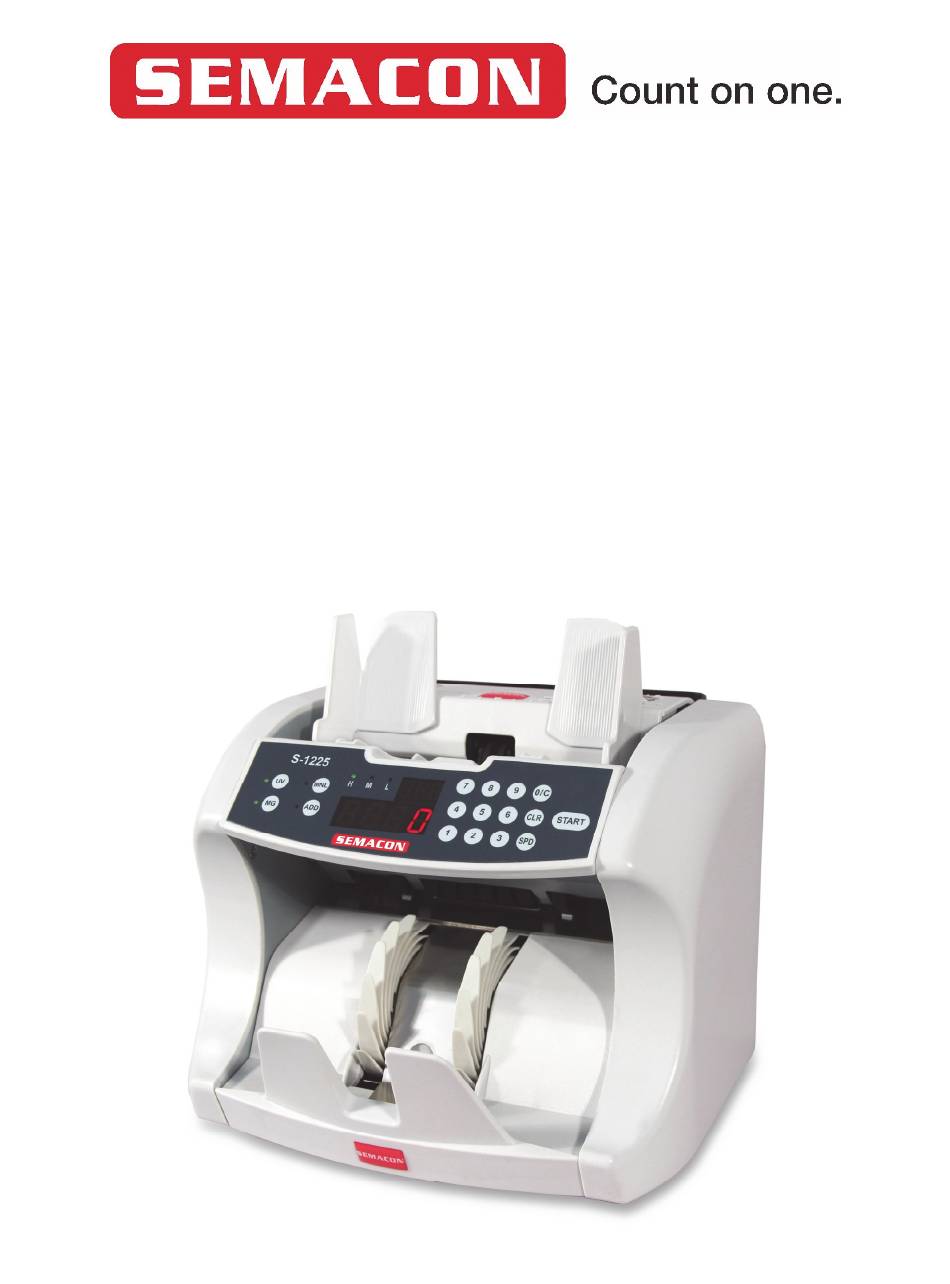

- Page 1 S-1200 Series Currency Counter Operating Manual Models S-1200, S-1215 and S-1225...
-
Page 2: Table Of Contents
Malfunction Code List Error Code List Technical Specifications Copyright © 2011-2015 Semacon Business Machines, Inc. All Rights Reserved. No part of this document may be copied or reproduced by any individual or entity for any reason without prior written permission from Semacon. -
Page 3: Introduction
SEMACON S-1200 SERIES CURRENCY COUNTERS This instruction manual serves as a general guide for operating your Semacon S-1200 Series Currency Counter. This machine is a heavy duty bank grade currency counter designed to save time and labor while counting banknotes in bulk. Before starting, please read the manual thoroughly to become familiar with the operation and functions of the machine. -
Page 4: Front View Machine Diagram
S-1200 SERIES CURRENCY COUNTER FRONT VIEW 1) Carrying Handle 2) Sliding Hopper Guides 3) Separation Mechanism 4) Display 5) Left Side Cover 6) Stacker Rack 7) Feed Deck 8) Control Panel 9) Stacker Roller 10) Right Side Cover 11) Feed Tension Adjustment Knob... -
Page 5: Rear View Machine Diagram
S-1200 SERIES CURRENCY COUNTER REAR VIEW 12) Upper Cover 13) Power Switch 14) Power Socket 15) Serial Number Label 16) Upper Rear Cover Figure 2... -
Page 6: Control Panel Overview
CONTROL PANEL OVERVIEW Model S-1225 with Ultraviolet and Magnetic Counterfeit Detection Model S-1215 with Ultraviolet Counterfeit Detection Model S-1200 FUNCTION START Starts the counting process Clears the counting number display Selects add mode or normal counting mode Changes the counting speed Selects auto or manual feed mode Number buttons for selecting the batch stop setting 0/C - 9... -
Page 7: Control Panel Functions
CONTROL PANEL FUNCTIONS The START button is used to restart the counting process after the machine stops during batch counting or after an error, and for manual feed mode. The number buttons are used for selecting the batch stop setting. In this mode, the counter will stop each time the batch stop setting is reached and the operator then removes the batch from the stacker. -
Page 8: Operating Instructions Overview
OPERATING INSTRUCTIONS OVERVIEW Startup 1) Turn on the power switch located on the back of the counter near the power socket. The display will read all 8’s, indicating that the unit is completing a self-check process and checking each sensor. 2) 0 will appear to indicate that the counter has successfully completed its self-diagnostic process and is now in standby mode and ready to be used. -
Page 9: Modes And Functions
MODES AND FUNCTIONS Add Mode Adding during count mode is performed by pressing the ADD button (green LED will light next to the button when activated). With this mode turned on, the machine will add the count for each stack of bills to the previous total. NOTE: Add mode can also be used when batching if the operator selects a batch stop setting while Add mode is activated. -
Page 10: Counterfeit Detection
COUNTERFEIT DETECTION Certain counter models contain a sophisticated counterfeit detection system (models S-1215 and S-1225). While the counterfeit detection features are designed to be as accurate as possible, they are specifically designed to pinpoint suspect banknotes that are believed to have a high probability of being counterfeit. -
Page 11: Maintenance
Depending on your usage level, your counter should be professionally cleaned and serviced on a regular basis by your authorized Semacon distributor or it can be sent to the Semacon Service Center for a general preventative cleaning & maintenance service. Contact your distributor to determine the proper location for service. -
Page 12: Feed Tension Adjustment
-1 or -2. IMPORTANT! The dot on the knob should never be adjusted past +5 or -5. Contact your authorized Semacon service provider if your machine still receives error messages after the feed tension has been adjusted to either of these points. -
Page 13: Malfunction Code List
If this does not correct the problem, your counter should be sent to an authorized Semacon service center or Semacon for repair. The right count sensor pair is Clean both sensors with a can of... -
Page 14: Error Code List
+5. Half Note Detection Alert If you reach +5 and your machine is still receiving errors, please contact your authorized Semacon service facility for Jam Detection Alert further assistance. Skew Note Detection Alert Suspect Counterfeit Note -... -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS 1) Ambient Temperature 32 - 104ºF 0 - 40ºC 2) Ambient Humidity 30 – 90% 3) Banknote Feeding System SmartFeed ™ Friction Roller System 4) Counting Speed 800/1200/1600 Notes Per Minute 5) Note Size 115 x 50 mm to 175 x 85 mm 6) Hopper Capacity 200 –... - Page 16 7430 Trade Street San Diego, CA 92121 USA Tel: 858-638-0100 Fax: 858-638-0110 tech.support@semacon.com www.semacon.com...
