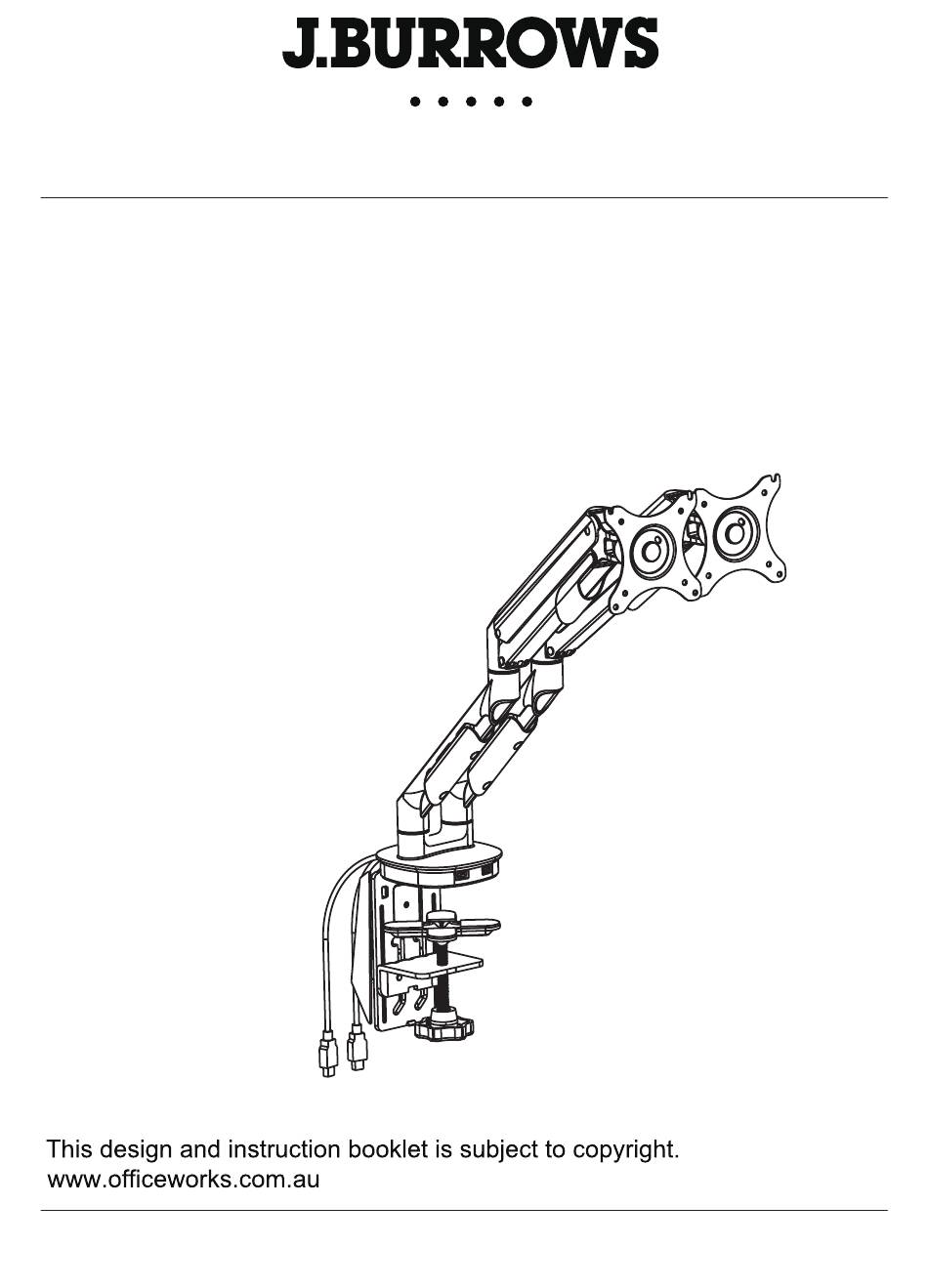

- Page 1 ASSEMBLY INSTRUCTIONS PROFESSIONAL DUAL MONITOR ARM JBPDMARMWE JBPDMARMBK 1 Carton For spare parts or hardware call 1300 OFFICE 1/15...
- Page 2 Customer Service Contact Details Spare Parts & Hardware 1300 OFFICE People Required General Advice Officeworks Ltd. 236-262 East Boundary Road Bentleigh East VIC 3165 AUSTRALIA 2/15...
- Page 3 Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item. NOTE Please check you have all hardware before assembling. If you are missing any hardware, please contact the store of purchase. Please ensure you have the name of the item, required hardware part and quantity. Please retain your receipt as proof of purchase to validate your warranty.
-
Page 4: Parts List
Parts List 4pcs 1pc M8*120mm 1pc M8*65mm 4/15... -
Page 5: Included Hardware
Included Hardware 8pcs M4*12mm screw 8pcs M5*12mm screw 3pcs M6*12mm screw 16pcs Ø6.5*Ø13*2 washer 4X4 Allen key M6 Box wrench 5x5 Allen key 5/15... -
Page 6: Installation Diagram
Installation Diagram Option A: Clamp version, go to step 1 Option B: Grommet version, go to step 4 Choose proper grommet screw based on thickness of desk: M8*65mm for desk thickness: < 18mm M8*120mm for desk thickness: 18-100mm 6/15... - Page 7 Assembly Option A: Clamp Step 1 3pcs M6*12mm screw 1pcs 4X4 Allen key 7/15...
- Page 8 Step 2 Step 3 Select position according to For desk thickness: thickness of the desk 25-100mm Tighten 8/15...
- Page 9 Option B: Grommet Step 4 3pcs M6*12mm screw 1pcs 4X4 Allen key 1pc M8*120mm 1pc M8*65mm Choose proper grommet screw(7) based on thickness of desk: M8*65mm for desk thickness: < 18mm M8*120mm for desk thickness: 18-100mm Step 5 9/15...
- Page 10 Step 6 Available hole size: 8.5-25mm Tighten Step 7 Compatible with the monitor hole distance 75x75 or 100x100 VESA ON MONITOR 10/15...
- Page 11 Step 8 Attaching the monitor to the plate 8pcs M4*12mm screw 8pcs M5*12mm screw 16pcs Ø6.5*Ø13*2 washer 5x5 Allen key A or B A or B Use washer if needed (D) A or B 11/15...
- Page 12 Step 9a Adjust the monitor 5x5 Allen key M6 Box wrench Use Allen Key (G) to adjust the swivel function on position 1 Remove the plastic cover, use box wrench (E) to adjust the tilt function on position 2 12/15...
- Page 13 Adjust the monitor Step 9b 5x5 Allen key Adjusting arm to monitor weight Weight tension is pre-set at 4-5 kg. If the monitor weighs more or less than that, press the arm down to a position parallel with the desk prior to adjusting the weight. CAUTION Monitor must be on the arm Arm must be in mount...
- Page 14 Step 10 Using cord management Cable 14/15...
- Page 15 75x75 10"~30" 2-9kg 100x100 CAUTION: This product is intended to hold the maximum weight indicated. Exceeding the maximum weight will result in instability and may cause injury. Thank you for your purchase. Please retain your receipt to validate warranty. If you would like to know more about our furniture products, please visit www.officeworks.com.au 15/15...
