Summary of Contents for J.Burrows JBPDMARMWE

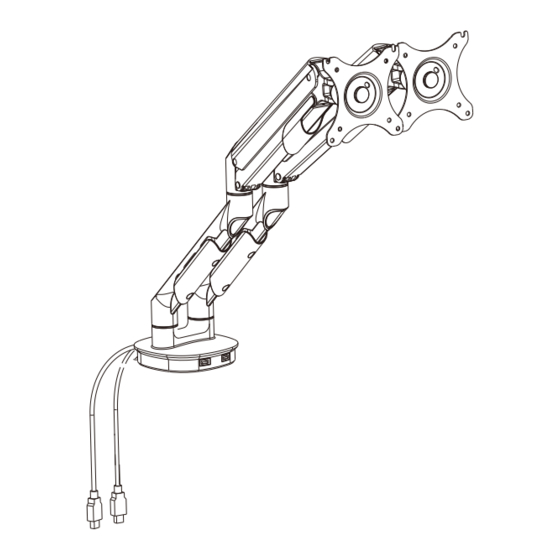

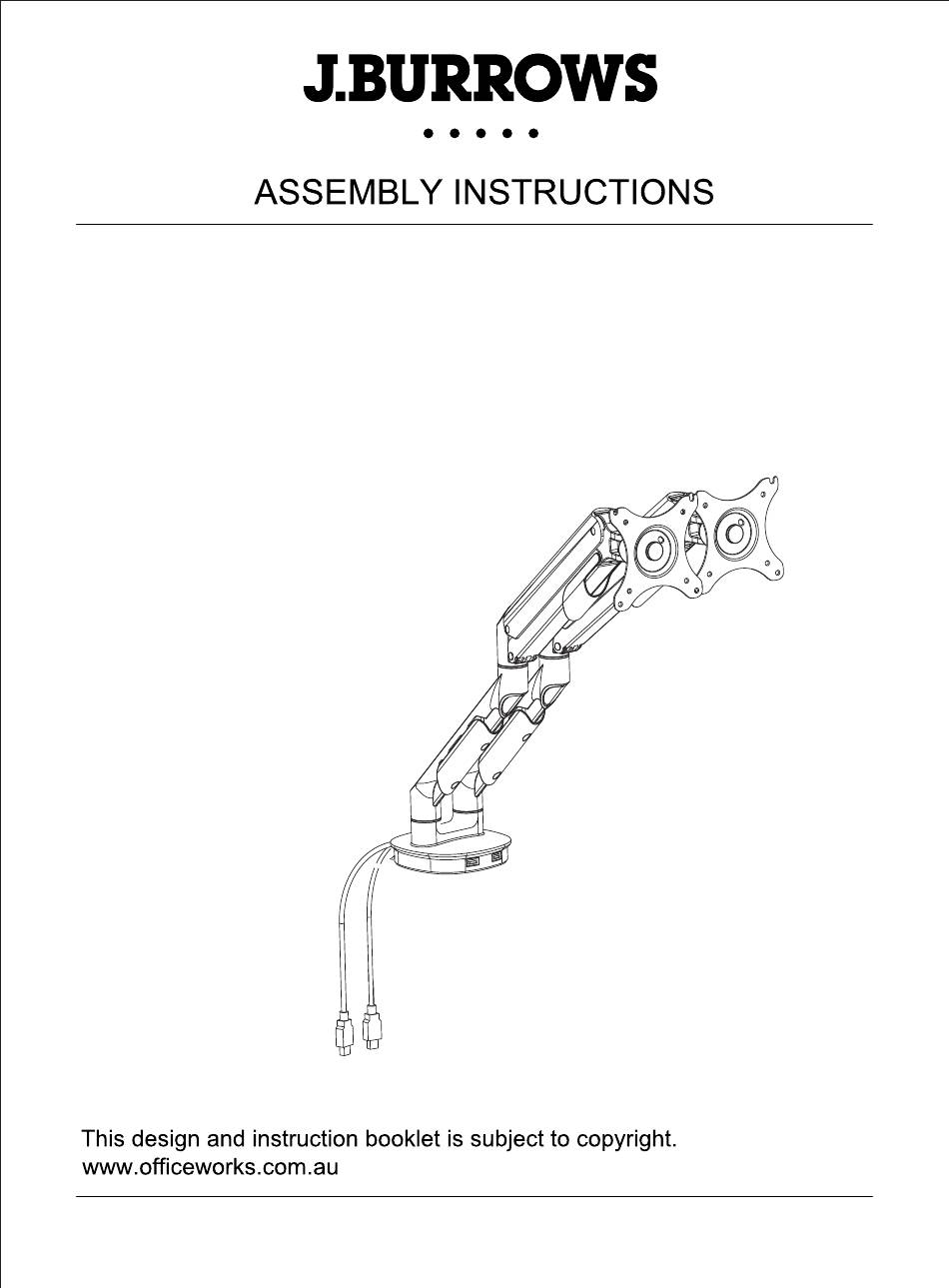

- Page 1 PROFESSIONAL SINGLE MONITOR ARM JBPDMARMWE JBPDMARMBK 1CTN 1/12...
- Page 2 Toolsrequiredforassembly using authorised Officeworks Ltd 2/12...
- Page 3 PARTS LIST 3/12...
- Page 4 HARDWARELIST 8pcs M4*12mm screw 8pcs M5*12mm screw 3pcs M6*12mm screw 16pcs Ø6.5*Ø13*2 washer 4X4 Allen key 5x5 Allen key M6 Box wrench INSTALLATION DIAGRAM Option A: Clamp version, go to step 1 Option B: Grommet version, go to step 4 4/12...
- Page 5 Option A: Clamp STEP1 3pcs M6*12mm screw 1pcs 4X4 Allen key 5/12...
- Page 6 STEP2 STEP3 Select position For desk thickness: according to 25-100mm thickness of the desk Tighten 6/12...
- Page 7 Option B: Grommet STEP4 3pcs M6*12mm screw 1pcs 4X4 Allen key STEP5 7/12...
- Page 8 STEP6 For desk thickness: 25-100mm Available hole size: 8.5-25mm Tighten STEP7 Compatible with the monitor hole distance 75x75 or 100x100 VESA ON MONITOR 8/12...
- Page 9 STEP8 Attaching the monitor to the plate 8pcs M4*12mm screw 8pcs M5*12mm screw 16pcs Ø6.5*Ø13*2 washer 5x5 Allen key A or B A or B A or B 9/12...
- Page 10 STEP9 Adjust the monitor 5x5 Allen key M6 Box wrench If the monitor cannot stop at any height, use 5x5 allen key(G)to adjust the screw on the arm. Adjust the screw in “-“ direction when the monitor is up and “+” direction when it is down. Factory setting: 4-5KG Remove the plastic cover, use Box Use Allen Key (G) to adjust the swivel...
- Page 11 STEP10 Using cord management Cable 11/12...
- Page 12 75x75 10"~30" 2-9kg 100x100 CAUTION: This product is intended to hold the maximum weight indicated. Exceeding the maximum weight will result in instability and may cause injury. Please retain your receipt to validate warranty. If you’d like to know more about Officeworks’...
