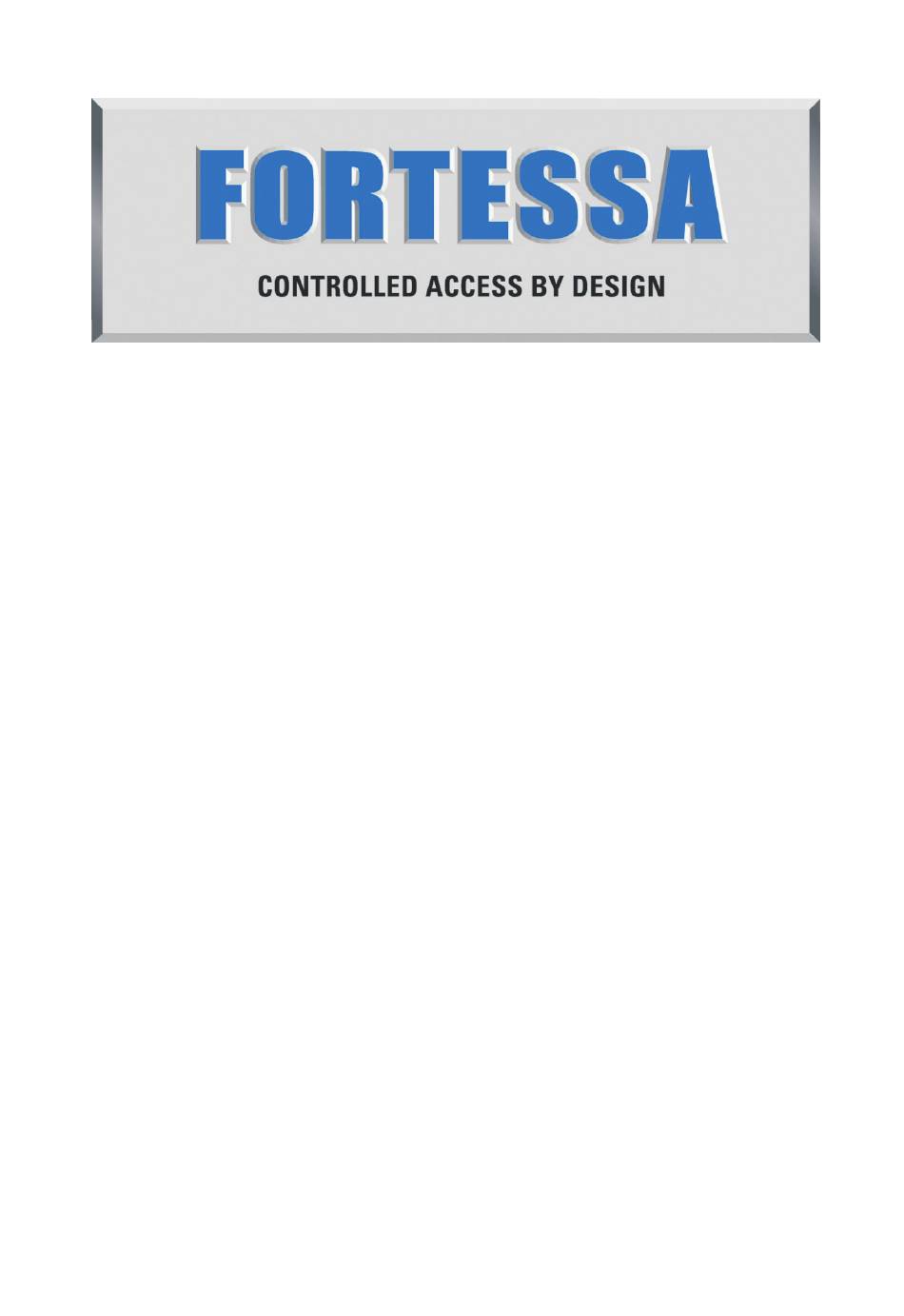

- Page 1 MULTIWAY 2-12 WAY DOOR ENTRY SYSTEM FTDEVM2-12 Instruction Rev01...
-
Page 2: Table Of Contents
CONTENTS Page Part 1. Product introduction 1.1 Panel(s) layout 1.2 Specification Part 2. Connection 4~10 2.1 Cable requirements 2.2 Cables and distance 2.3 Terminals 2.4 System diagrams 2.5 Connection diagrams for other devices 2.6 Power supply arrangement Part 3. System programming 9~11 3.1 Call button numbers and address 3.2 Indoor phone address setting... -
Page 3: Part 1. Product Introduction 1~3

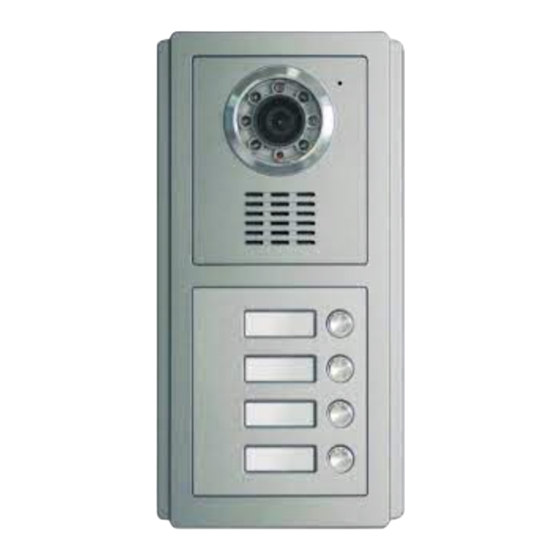

Part 1 Product Introduction 1.1 Panel(s) layout screws frame Microphone White/IR LEDs colour camera light sensor Speaker name tag call button name tag call button No.4 button screws Model FTDEVM7 Microphone Emergency button Standby Monitor button Unlock button Answer button Speaker Speech volume adjustor Image adjustors... - Page 4 Model FTDEAH Switch hook Speaker Alarm indicator Alarm-activated button Keypad Emergency button Screw Unlock button Handset Microphone Coil cord Isolation module FTDEIM RJ45 ports to next module(optional) Power terminals Rj45 port to door station Power indicator RJ45 ports to indoor phones Power supply (12V&32V) FTDEPSU12 &...
-
Page 5: Specification
1.2 Specification 1.2.1 Door station Camera: 1/3" CCD Viewing angle: 92° Lens: F=3.6 Resolution: 420TV Lines Min. Illumination: 0.01 Lux 1V /75Ω Video Output: ≥25dB Audio SNR: ≤7% Audio Distortion： Assistant door panel: 1 pc(8 buttons) System Capacity: 12 apartments Standby Current: ≤116mA Working Current:... -
Page 6: Part 2. Connection 4~10
Part 2 Connection 2.1 Cable requirements: B, Cable to door stations/modules A, Cable from door station to modules/ indoor phones RVV2x1.0 (AWG18) RJ45 Port CAT-5/E cable Please follow TIA/EIA-568B Standard for CAT-5(E) cables to avoid interference. 2.2 Cables and distance Distance Wires Type(size) -
Page 7: System Diagrams
2.4 System Diagrams 2.4.1 Basic component diagram A, For FTDEV1-4 and FTDEV5-8 kit Isolation module Isolation module CAT5 Video indoor phone RVV2x1.0 PSU 32 3wires RVV2x1.0 PSU 12 Assist door panel Video door station... - Page 8 B, For FTDEV9-12 kit Isolation module Isolation module Isolation module CAT5 Video indoor phone RVV2x1.0 PSU 32 3wires RVV2x1.0 PSU 12 PSU 12 Assist door panel Video door station...
-
Page 9: Connection Diagrams For Other Devices
2.4.2 Basic wiring diagram CALL To other indoor To next module 12VIN phones ETRXD 32VIN Video indoor phone Isolation module CALL To other indoor 12VIN phones ETRXD 32VIN Video indoor phone Isolation module PSU 32 PSU 12 SW21 JP 51 Jp21 ADDR0 12V- AU 32VIN V-... -
Page 10: Power Supply Arrangement
2.5 Connection diagram for other devices 2.5.1 Wiring diagram of doorbell push button Doorbell button CALL Video indoor phone 2.5.2 Wiring diagram of EXIT push button JP51 JP21 12V- AU 32VIN V- R- T+ A+ VM- 12V+ SGND ETRXD V+ R+ A- T- ALM G UL G ⑤... -
Page 11: Indoor Phone Address Setting
2.5.4 Wiring diagram of power supply JP51 JP21 12V- AU 32VIN V- R- T+ A+ VM- 12V+ SGND ETRXD V+ R+ A- T- ALM G UL G ⑤ ⑥ ③ 12V+ 12V- DATA 12V+ 12V- L+ L- ① COM NC NO ②... -
Page 12: Part 3. System Programming 9~11
Part 3 System programming 3.1 Call button numbers and address A, The door station and assistant door panels' call button numbers are ranked as the following figures. No.0005 No.0006 No.0007 No.0008 No.0001 No.0009 No.0002 No.0010 No.0003 No.0011 No.0004 No.0012 B, Assistant door panels' address (for 5-12 way only) On the back of the assistant door panel there are 4 jumper couplers. - Page 13 3.2.2 To program the out door station’s call buttons the relevant indoor phones Step 1> Match indoor phone with call buttons Push both buttons and do not release them, then push a specific call button for 2 seconds as the following figures. If the program is successful, both door station and indoor phone will sound double short beeps.
-
Page 14: Part 4. Operation 12~13
Part 4 Operation 4.1 Operation on door station Push a call button on door station to c all indoor phones In case push a wrong call button, the visitors may push the same button again. Then the calling can be cancelled immediately. 4.2 Operation on indoor phone 4.2.1 Answer Push the... - Page 15 4.2.4 Family intercom If there are 2 or more indoor phones in your family, you could use an indoor phone to call another by pushing button and then button. 4.2.5 Change ring tone Push button for more than 2 seconds when the indoor phone is idle, and then push the button again and again until you get a favourite ring tone.
-
Page 16: Part 5. Installation 14~15
Part 5 Installation Before install the devices please read these notices: ①Suggested panel height 1.4m-1.8m; ② Do not install the devices with high voltage, high temperature, a strong magnetic field, corrosive, or humid atmospheres. ③ Make sure the lens and microphone are protected from dust. ④To reduce silhouetting of camera image, avoid installing panel in areas that receive direct sunlight. -
Page 17: Installation Of Indoor Phone/Handset
5.2 Installation of Indoor phone/handset 5.2.1 Install video indoor phone All video indoor phones are mounted with brackets on the wall, in the same way as the following steps. There are different size brackets. Please use the matched ones for your indoor phones. a. - Page 18 Notes:...
- Page 19 These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger Security Products for any misinterpretation of these instructions. Distributed by: CHALLENGER SECURITY PRODUCTS 10 Sandersons Way, Blackpool, FY4 4NB Technical helpline: 01253 792898 Email enquiries.challenger@adivision.co.uk Website: www.challenger.co.uk FTDEVM2-12 Instruction Rev01...
