Summary of Contents for Tributaries HDMI HXMINI5

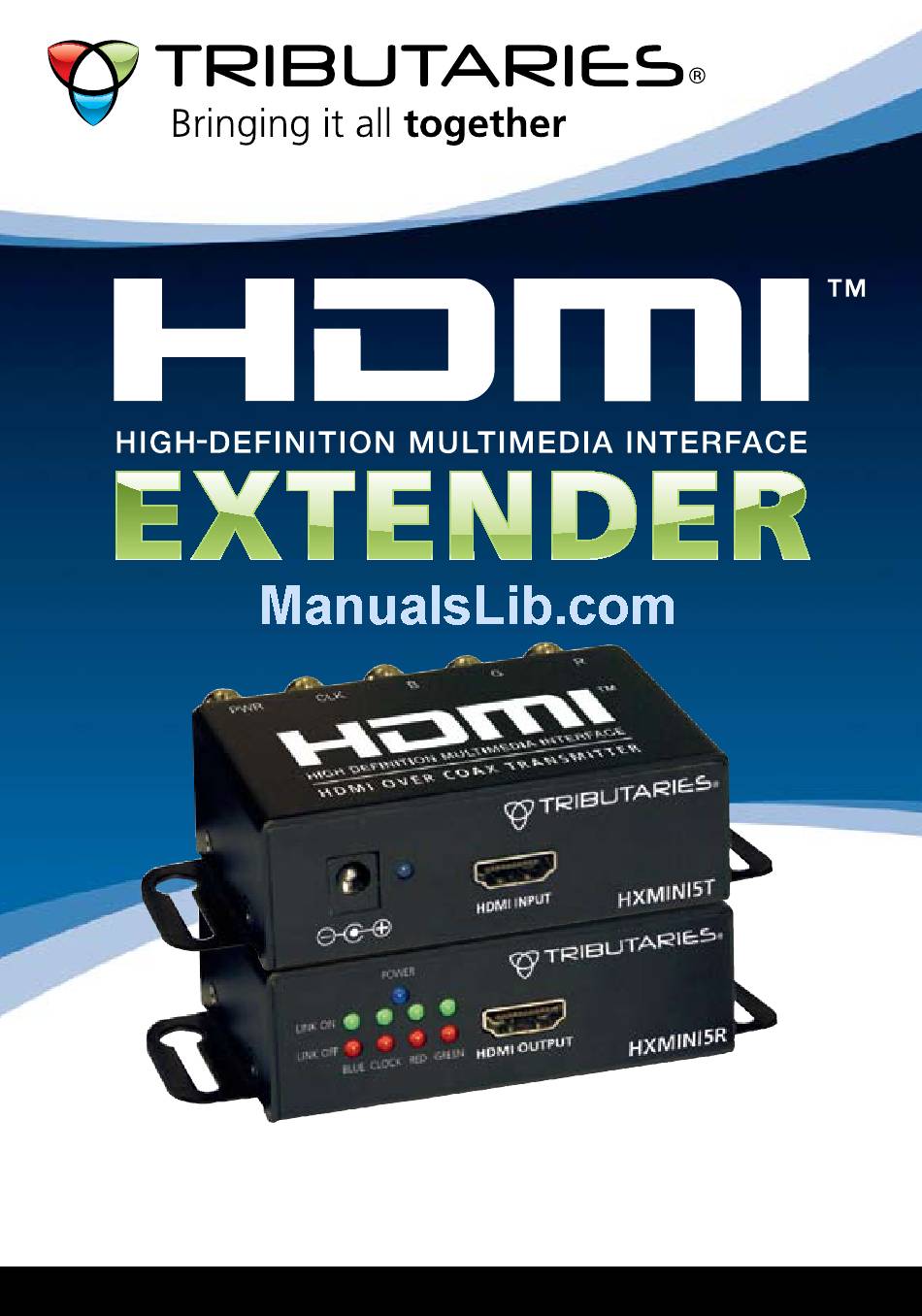

- Page 1 O V E R 5 C O A X C A B L E S HXMINI5 Extends HDMI 100 meters ™ www.tributariescable.com...
-
Page 2: Package Contents
1. Introduction The Tributaries HXMINI5 is the most advanced solution for extending HDMI. It easily extends an HDMI v1.3 1080p signal over (5) 75 Ohm coax cables for a distance up to 100 meters. Tributaries HXMINI5 provides the benefits of going long distances, along with the ability to support full HDMI 1.3, including the latest HD features... - Page 3 4. Transmitter Operations: Controls & Functions 4.1 Front Panel 1. HDMI INPUT: Connect to the HDMI output of your source equipment such as a DVD player or set-top-box 2. POWER: Plug 6VDC power supply into the unit and connect the adaptor to an AC wall outlet 3.
- Page 4 4. Transmitter Operations: Controls & Functions 4.2 Rear Panel 1. RED BNC VIDEO OUTPUT: Connect the Red output to the Red input of the HXMINI5 Receiver using a 75 Ohm coax cable 2. GREEN BNC VIDEO OUTPUT: Connect the Green output to the Green input of the HXMINI5 Receiver using a 75 Ohm coax cable 3.
- Page 5 5. Receiver Operations: Controls & Functions 5.1 Front Panel LINK ON LINK OFF 1. HDMI OUTPUT: Connect to the HDMI input of your display POWER LED: Blue LED Illuminates indicating the receiver is powered BLUE INDICATOR LIGHTS: Green LED indicates the receiver’s Blue signal is linked to the Transmitter Red LED indicates the receiver’s Blue signal is not Linked to the Transmitter CLOCK INDICATOR LIGHTS: Green LED indicates the receiver’s Clock signal is linked to the Transmitter...
- Page 6 5. Receiver Operations: Controls & Functions 5.2 Rear Panel 1. RED BNC VIDEO INPUT: Connect the Red input to the Red output of the HXMINI5 Transmitter using a 75 Ohm coax cable 2. GREEN BNC VIDEO INPUT: Connect the Green input to the Green output of the HXMINI5 Transmitter using a 75 Ohm coax cable 3.
-
Page 7: Connection And Installation
Connection and Installation DVD Player, Satellite Receiver Cable, STB, or Gaming Console HDMI ™ Cable Transmitter Unit Front TRIBMINI5 or (5) 75 Ohm Coax Cables Transmitter Unit Rear Transmitter Unit Transmitter Unit Rear Front ™ HDMI Cable... - Page 8 5. Dimensions: 6.25” (W) x 3.0” (D) x 1.25” (H) ©2008 Gordon J. Gow Technologies, Inc. All rights reserved. TRIBUTARIES® is a registered trademark of Gordon J. Gow Technologies, Inc. All other trademarks are the property of their respective owners. As we continually strive to improve our products, TRIBUTARIES®...
