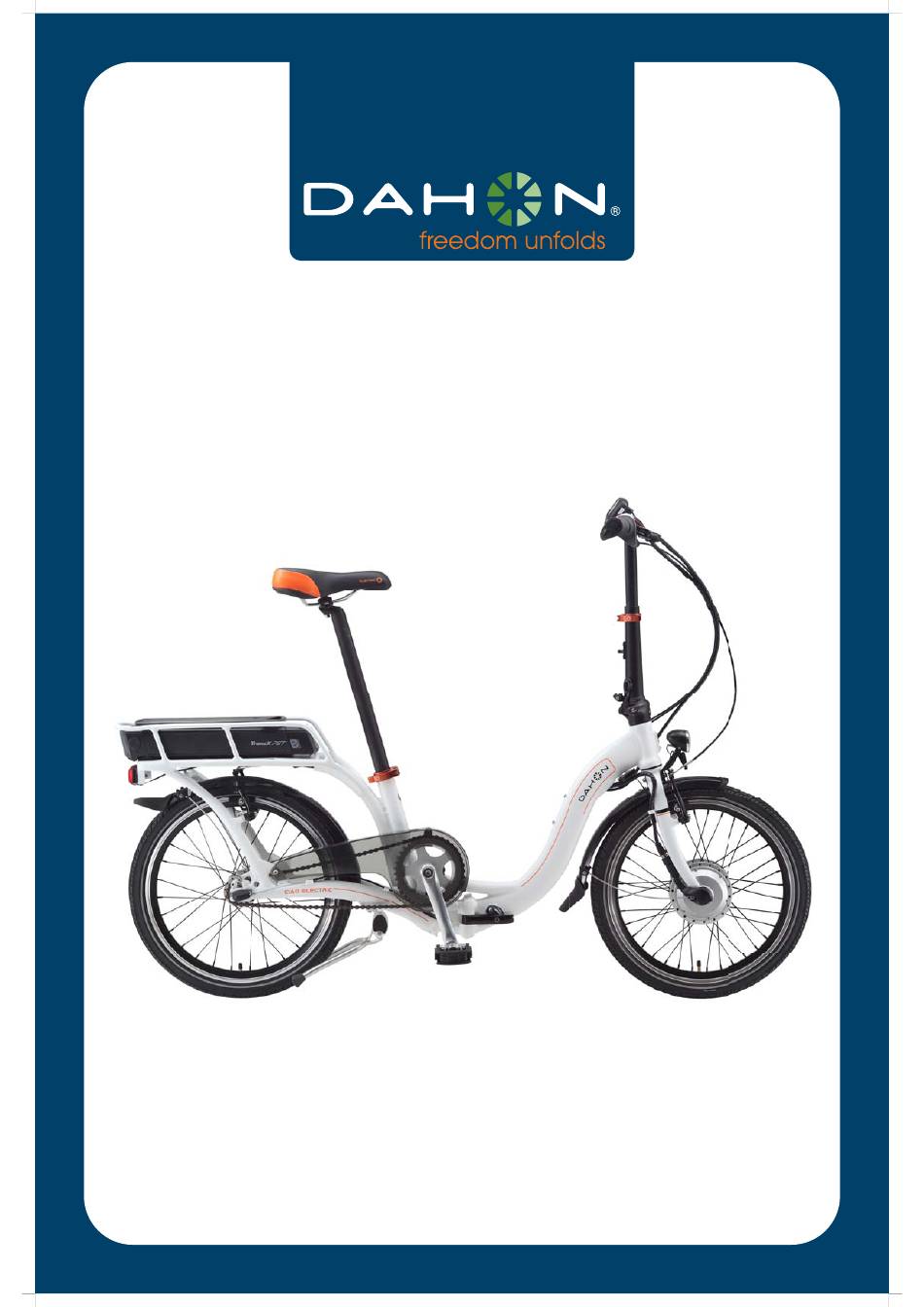

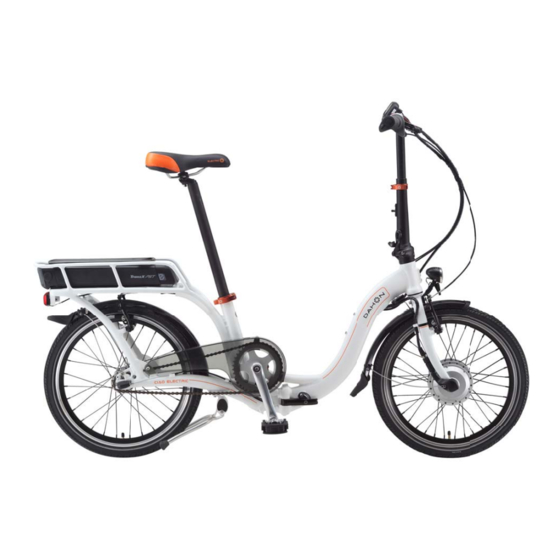

- Page 1 E-Bike...
- Page 2 TranzX PST (Power Support Technology) Driving System for pedal-activated bicycles Introduction Congratulations on your purchase of a Dahon E-Bike, that will give you many kilometers of cycling pleasure and comfortable riding. The Dahon E-Bike offers a perfect synergy between the cyclist’s pedal input and additional motor support.
-
Page 3: Table Of Contents
Contents ----------------------------------------------------------------------03 Specifications ----------------------------------------------------------------------------04 Features --------------------------------------------------------------05 Display Instructions ----------------------------------------------------09 How to Charge the Battery ----------------------------------------------------10 Maintenance of the Battery ---------------------------------------------------------------11 Terms of Warranty ------------------------------------------------------------------11 Safety Warnings Specifications Frame: LMA 20” DAlloy Fengding Bike Tires: 20" front and rear 20" x 1.75” Gear Ratio: SHIMANO (KSG7R50) 7S/3S Lighting System:... -
Page 4: Features
Features • True Pedal Assist Concept. • Motor support only switches on when you start pedaling and switches off when you stop pedaling. • Perfect synergy between cyclist’s pedal input & additional motor support. • 1:1 direct relation between pedal force and motor support. •... -
Page 5: Display Instructions
Display Instructions Remaining Mileage Light Sensor Battery Capacity Current Speed Total Distance Turbo Button Power Button Drive Mode Button Back Light Button 01. Power Button: Power ON/OFF switch function. 02. Drive Mode Button • Mode 1: Eco • Mode 2: Normal •... - Page 6 04. Total distance / Trip distance • Total distance will show when no speed is detected. • Trip distance will show when the bicycle is being ridden. • When the bicycle is attached to an external charger the trip distance will be reset to 0. •...
- Page 7 Error Code icon Error Code No. DESCRIPTION Motor speed sensor is not functional. The hub motor will vibrate and make noise. Code Not applicable. In the unlikely case that this error code occurs, see your dealer. Code Not applicable. In the unlikely case that this error code occurs, see your dealer.
- Page 8 3. Brakes are functioning properly. Note: 1. Fold your Dahon E-bike according to the manual. 2. When folding and unfolding please take care to check that the internal cables are not caught. Should this occur, simply push the two cables back inside the frame.
-
Page 9: How To Charge The Battery
Battery Case Operation 1. Turn the key anti-clockwise and open the plastic casing. 2. Take out the battery for charging. How to Charge the Battery Only use the battery charger that was supplied with the TranzX PST. Use of any other battery charger voids your warranty and may result in severe damage to the battery and electrical system of the bicycle, and may cause a fire hazard. -
Page 10: Maintenance Of The Battery
Charger & Battery Protection The battery and charger unit have a built-in heat sensor. If the heat rises too much, it will automatically shut down the system before any damage can occur. The charger unit will automatically cut off the power supply after 6 hours of charging. Note: Turn off power before taking out the battery. -
Page 11: Terms Of Warranty
Terms of Warranty The Dahon E-Bike warranty period is 1Years (12 months) according to the date of purchase. For all electrical parts including charger, display (console), controller, BB sensor, electrical cables, carrier and motor, (Note: motor noise is not covered) the warranty period is 2 Years (24 months). - Page 12 04. The manufacturer is not liable for incidental or consequential loss nor damage due directly or indirectly from the use of this product. 05. This Dahon E-Bike carrier is not compatible with a rear baby seat. 06. As with all mechanical devices, the bicycle is subjected to wear and high stresses.
- Page 13 Headquarters Dahon Technologies, Ltd. Dahon Europe Dahon North America INC. #18, Songtang Road, Tongfuyu No.1 P.O. Box 17, 833 Meridian Street Industrial Park, Tangxiayong Goliamokonarsko Shosse Str. Duarte CA 91010 Community, Songgang Tsaratsovo Village, 4027, Bulgaria +1 800 442 3511...
