Summary of Contents for Nexersys Cross Body Trainer

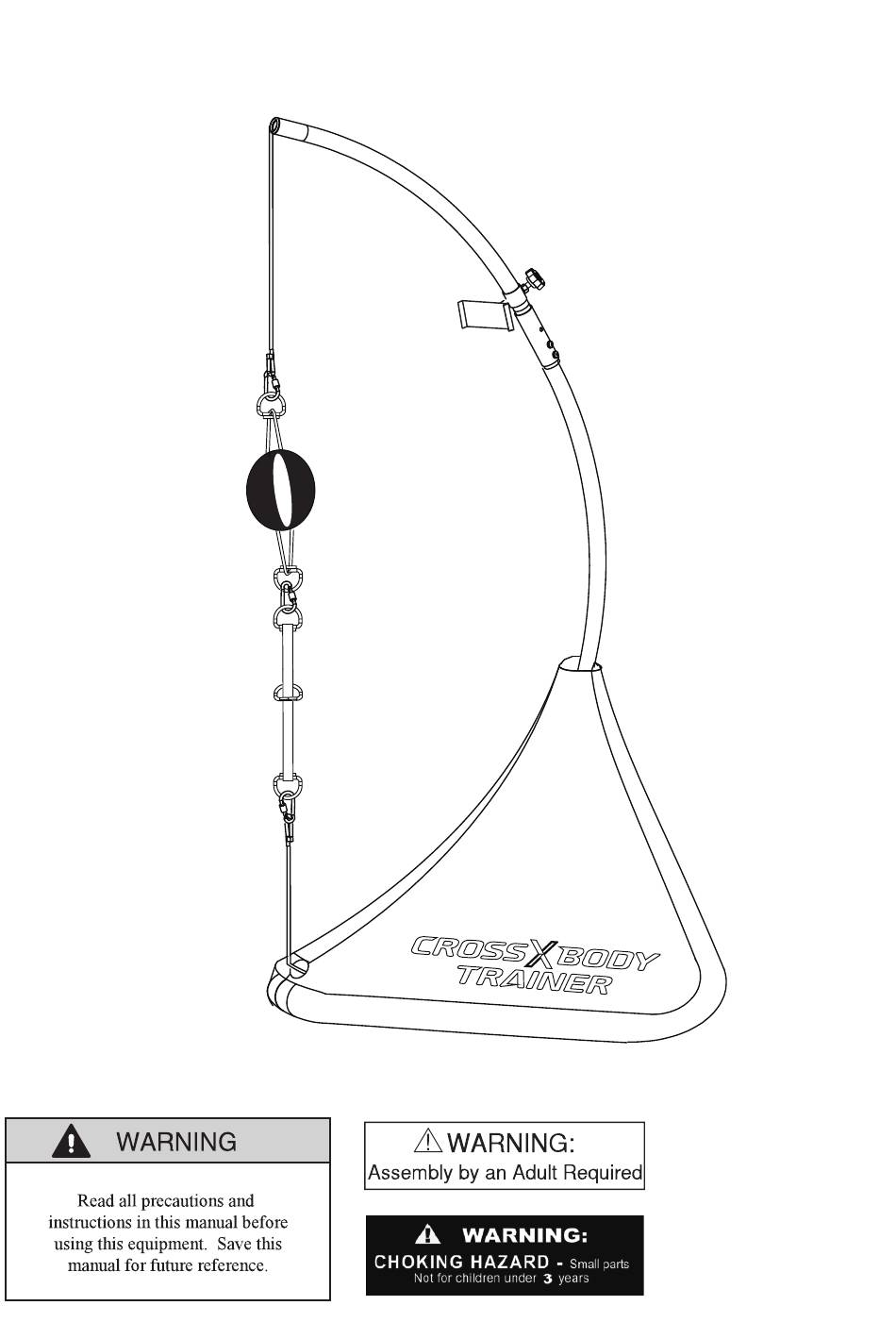

  • Page 1 Cross Body Trainer Assembly Manual...

  • Page 2: Table Of Contents

    Cross Body Trainer Assembly....................6-12 Installing the Strike Sensor......................13 Limited Warranty........................14-15 If you have any questions after reading this manual, please email us at support @nexersys.com. The Trained Technicians in our Customer Care Center will provide assistance. Customer Care: support@nexersys.com or call 877-209-0320 Monday—Friday, 9a.m.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING...

  • Page 4: Part List

    PARTS LIST Key No. Qty. Description Three -way pipe Under tube Left rear tube Right rear tube Lower tube with arc Supporting-tube Rear Supporting Tubes Middle Tube Top Tube Bracket Cable Double End Bag Front base plate Rear base plate Skirt Adjusting strap Bracket Torque Bolt...

  • Page 5: Part Identification Chart

    Note: If a part is not in the hardware kit, ckeck to see if it is pre-attached. If it is not, call 877-209-0320 or email support@nexersys.com. Extra parts may be included. M8x15 Bolt (B)-8 M8x15 Bolt with NYLOK (A)-8...

  • Page 6: Cross Body Trainer Assembly

    Cross Body Trainer Assembly 1. Attach two Under tubes (2) to the Three -way pipe (1) with four M8X50 Bolts(C), four M8 Washers with arc (D) and four M8 Locknuts(E). Do not tighten the Bolts. 2. Attach the Left rear tube (3) to the Under tube (2) with the M8X50 Bolt (C), the M8 Washer with arc (D) and the M8 Locknut (E).
  • Page 7 4. Attach the two Rear supporting-tubes (6) to the Left rear tube (3) and Right rear tube (4). Note: the supporting-tube (6) must to be placed in the lowest position of the Left and right rear tube (3) (4). This step does not need to attach the bolt. 5.
  • Page 8 6. Attach two M8X50 Bolts (C), two M8 Washers with arc (D) and two M8 Locknuts (E) to the the Rear supporting-tube (6) as shown. Do not tighten the Bolts. 7. Attach the Mobile Device Holder Bracket (9) to the Top tube (8) as shown.
  • Page 9 9. Attach the Double End Bag (11) to the Cable (10) as shown. Remove the Nylon rope. 10. Attach the Front base plate (12) to the Under tube (2) with four M8X15 Bolts (B), four M8 Locknuts (E). Attach the Rear base plate (13) to the Under tube (2) in the same way.
  • Page 10 12. Attach the Skirt (14) start from the top along the direction of the arrow. Then make the Cable (10) pop out from the hole of the Skirt (14), then fasten it with the zipper. Note: Make sure the zipper is unzipped before installation.
  • Page 11 13. Attach the bottom of the Cable (10) to the Double End Bag (11) with adjusting strap (15), make sure the Cable (10) is pulled tight. 14. Attach the Bracket Torque Bolt (16) to the Mobile Device Holder Bracket (9).
  • Page 12 (17), Attach the knob to the Mobile Device Holder Bracket (9), press the ball into the Mobile Device Holder (17), then tighten the knob. knob Congratulations! Your Cross Body Trainer is complete. Download the App and begin your path to a healthier body and mind.

  • Page 13: Installing The Strike Sensor

    Installing the strike Sensor 1. Ensure your mobile device has 2. Download the Cross Body Trainer 3. Activate bluetooth on your Bluetooth 4.0 Low Energy or later App on your Mobile Device mobile device release 5. Insert 2 AAA Batteries (not included) with + 4.

  • Page 14: Limited Warranty

    5 years HowNexersys Corporation Will Support the Warranty Throughout and as set forth under the terms of the Warranty, Nexersys Corporation will provide a replacement for any component or part that proves to be defective in materials or workmanship. Nexersys Corporation reserves the right to substitute material of equal or better quality if identical materials are not available under this warranty.
  • Page 15 This warranty gives you specific legal rights. You may also have other rights, which vary from state to state. Expirations If the warranty has expired, Nexersys Corporation may assist with replacements or repairs to parts and labor, but there will be a charge for these services. Contact Nexersys for information on post-warranty parts and services.
