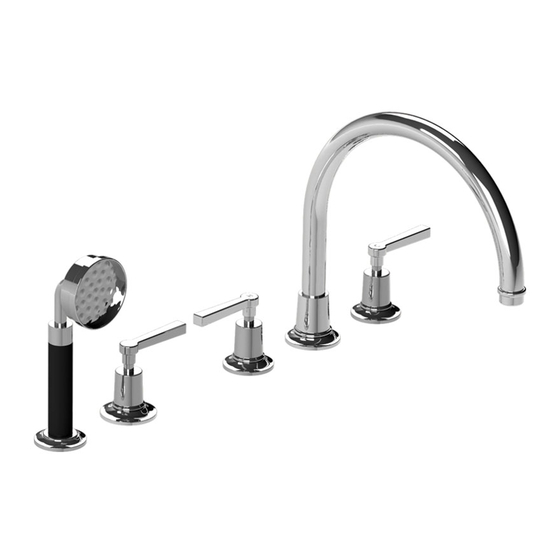

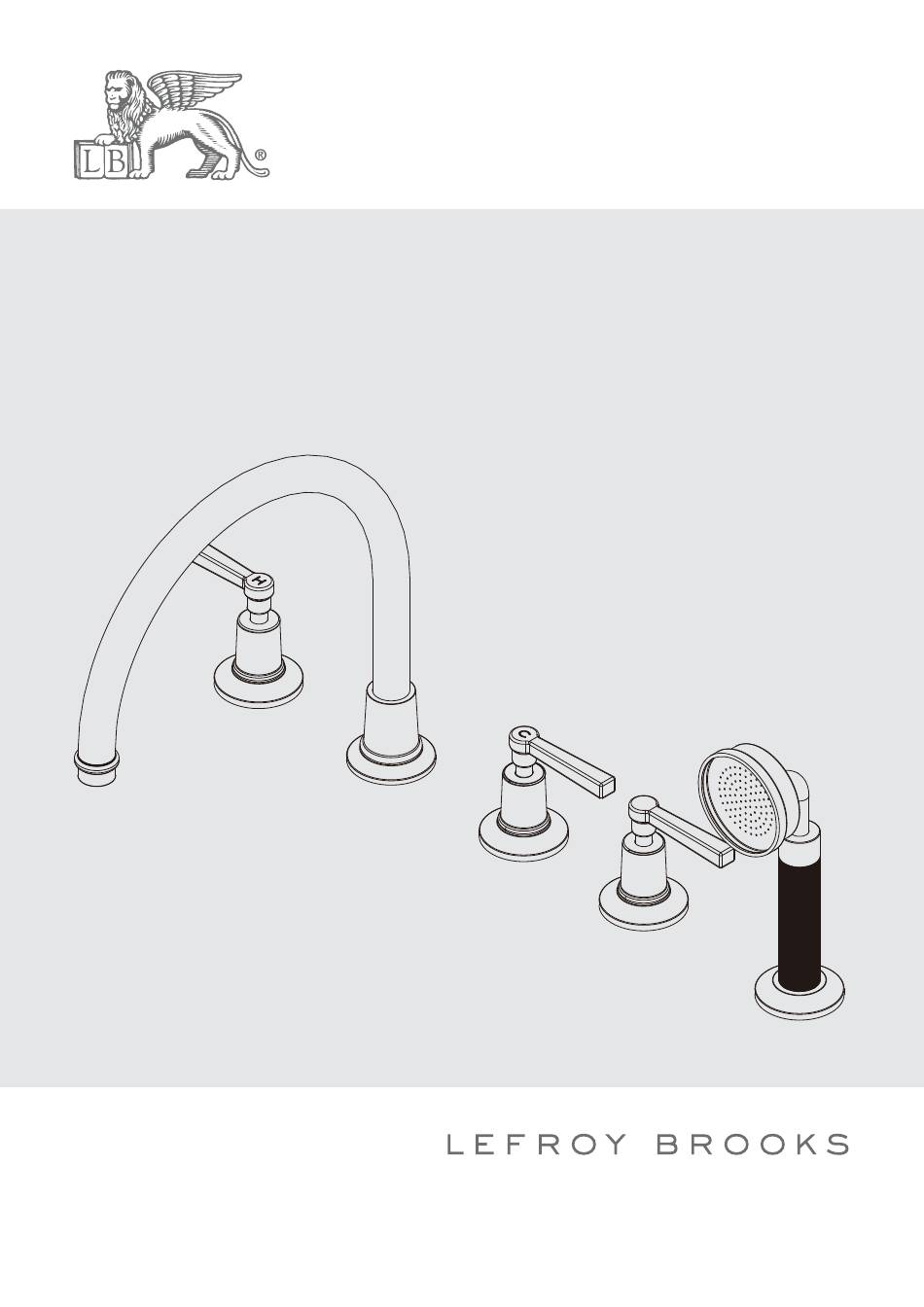

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS M2-2201 FLEETWOOD LEVER 5-HOLE BATH SET & PULL-OUT BLACK HAND SHOWER WITH DECK DIVERTER - TRIM ONLY, TO SUIT R1- 4007 ROUGH...
-
Page 2: Table Of Contents
Contents Dimensions Installation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 8"~12" 11" (203mm~305mm) (280mm) 4-Ø 2 3/8" (4-Ø 60mm) Ø 2 3/8" (Ø 60mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Installation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Make sure that main water supply is shut off before further installation. Take off all rubber protective caps, plugs from valves, as well as the underneath protective bubble bags. - Page 5 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install spout and finish installation by inserting set screw into access hole in back of spout and screw tightly.
- Page 6 Installation Procedure Step 5 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. After installing faucet, remove aerator and open the hot and cold supplies. Check for leaks. Turn on faucet handle for one minute to flush debris from faucet.
-
Page 7: Parts List
Parts List Exploded view Spout (139321) Adaptor (067591) Adaptor (057507) Oil-seal (010899) Escutcheon (303013) Stem extension (067196-T) Aerator insert (114237R) Handle ( C ) (029686C-T) Escutcheon (215478) Aerator housing (305032) Canopy (018209) O-ring (004591) Handle ( H ) (029686H-T) Clip (012242) Hand shower (S2110314) O-ring (048030) Handle (029686-T) -
Page 8: Fault Finder
Fault Finder Fault Cause Rectification Leaks around the base of spout. Gasket is misfitted or damaged. Check for gasket placement. Aerator leaks or has an inconsistent Aerator is dirty or misfitted. Unscrew the aerator to check rubber water flow pattern. packing or replace the aerator. -
Page 9: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 10: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
